R2904/7000
2 left in stock

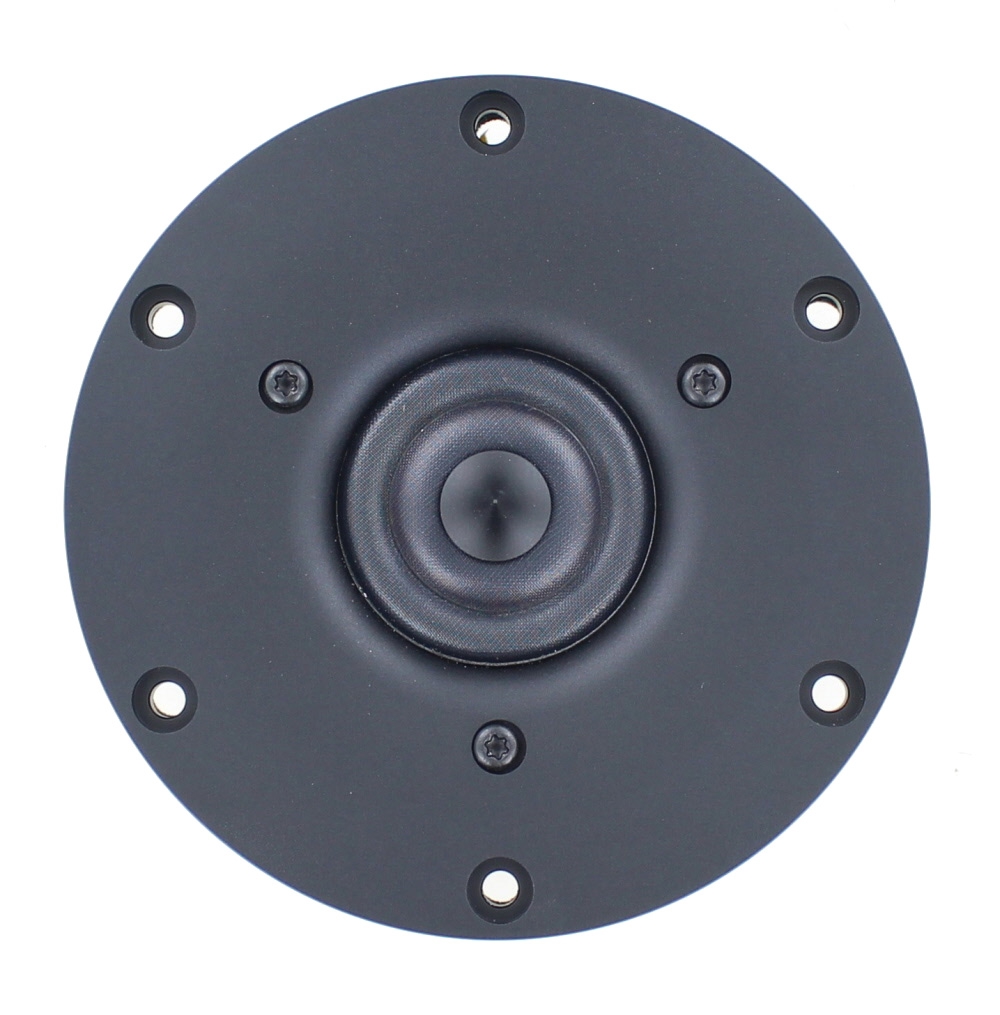

Scan-Speak Revelator R2904/7000, 25mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
CA$510.61Each
- R2904/7000
- SCAN-SPEAK
Scan-Speak Revelator R2904/7000, 25mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | Ring Dome Tweeter |
| Cone / Dome Diameter | 25mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 160 W |
| Resonance Frequency | 520 Hz |
| Sensitivity | 94.5 dB |
The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to some of the design trade-offs in dome designs. The ring radiator still offers unrivalled performance. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers.
- 1" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- Large Ring Neo Magnet f. High Output
- Non Resonant Alu Rear Chamber
- Silver Anodized Mashined Alu Face Plate
| FILENAME | ACTION |
|---|---|
| r29047000.pdf | Download |
