BRAGI

In stock
Seas Bragi, 2way MTM Kit Pair with 2xU18RNX/P and 27TBCD/GBDXT.
CA$1,078.65 pair CA$1,269.00
Product Specifications
Manufacturer SEAS
Summary The Bragi is a 2 way bass reflex MTM in 30 L box. Frequency response is 38Hz to 25KHz. Sensitivity: 92db 1W/1M The tweeter is the Seas Prestige 27TBCD/GBDXT. The woofers are the Seas Prestige U18RNX/P08 Long Throw. The low pass network is a simple 2nd order design. The high pass network employs a conventional 3nd order filter with some fine tuning. The X-over frequency is 2.6KHz



KIT CONTENT

QT PART # ITEM MANUFACTURER

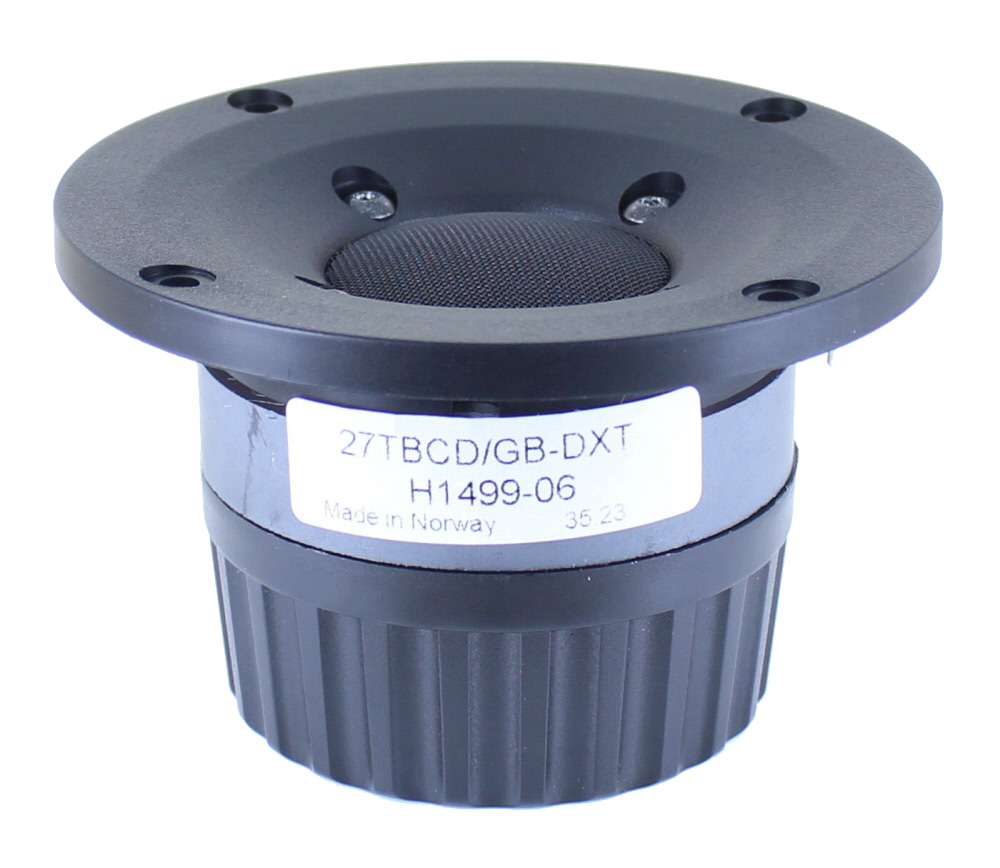

2 27TBCD/GBDXT 26mm AlMg 10cm SEA SEAS PRESTIGE
4 858-LU Binding Post Gold 8mmX38mm SOLEN
20 CLASSIC1.6 Tin Plated OFC 2x1.6mm SUPRA CABLES
2 L121.5 1.5 mH 1.9 22x45x89 SOLEN
8 M4TN Tee Nut 4mm SOLEN
8 M4X25H Socket Screw 4mmx25mm SOLEN
24 M5TN Tee Nut 5mm SOLEN
24 M5X35H Socket Screw 5mmx35mm SOLEN
2 AOC1600G12R 12 Ohms 16 W SOLEN
2 PA1800 18 mfd 250v 26x43 France SOLEN
2 PB1000 10 mfd 400v 26x38 France SOLEN
2 PB330 3.3 mfd 400v 17x33 SOLEN
2 POLYESTER Fiberflex 38mmx12x60 SOLEN
2 PT-2FL Flared Port 2 SOLEN
2 S20.22 .22 mH 0.8 11x22x45 SOLEN
4 U18RNX/P08 18cm 39mm Poly SEA SEAS PRESTIGE
FILENAME ACTION
Bragi.pdf Download
