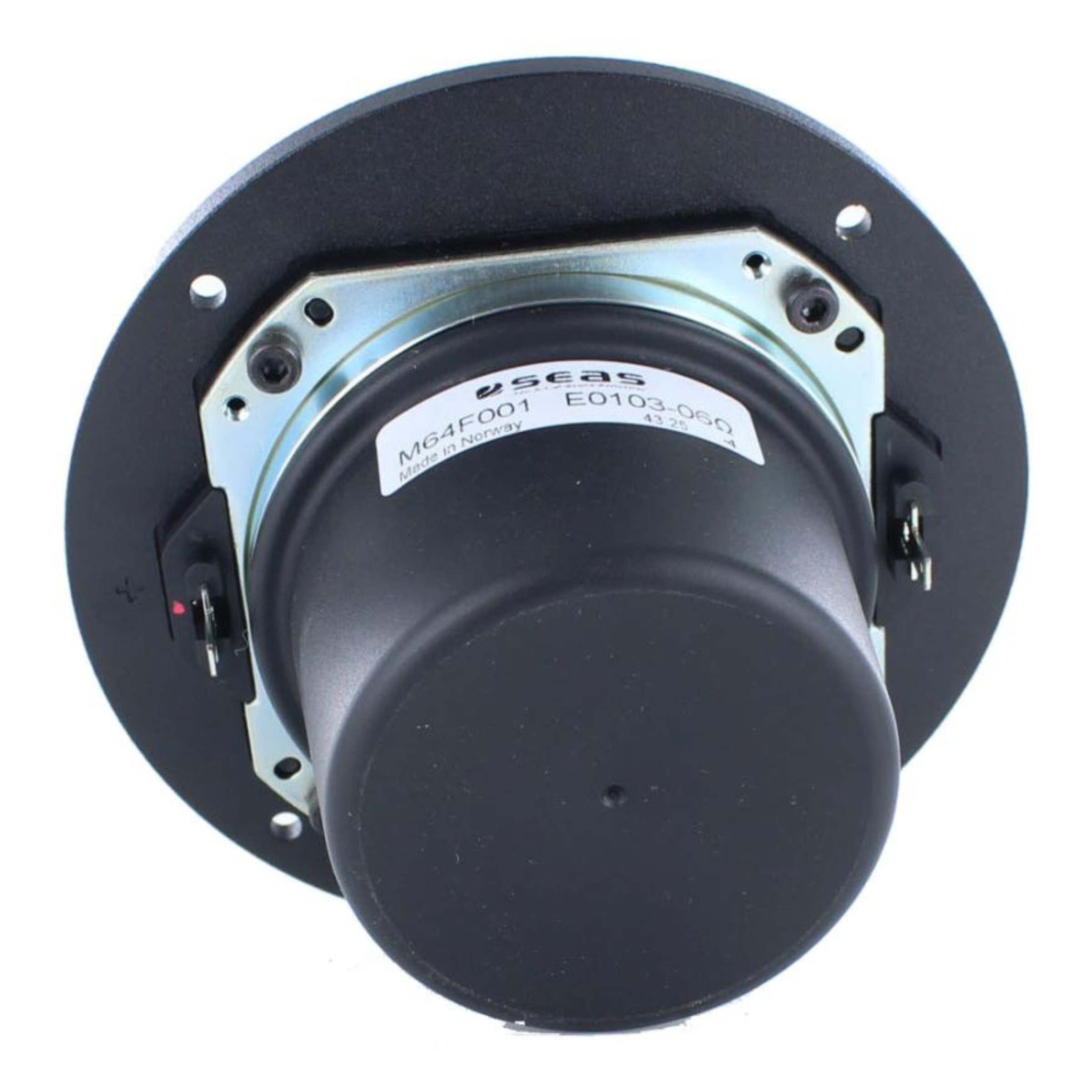

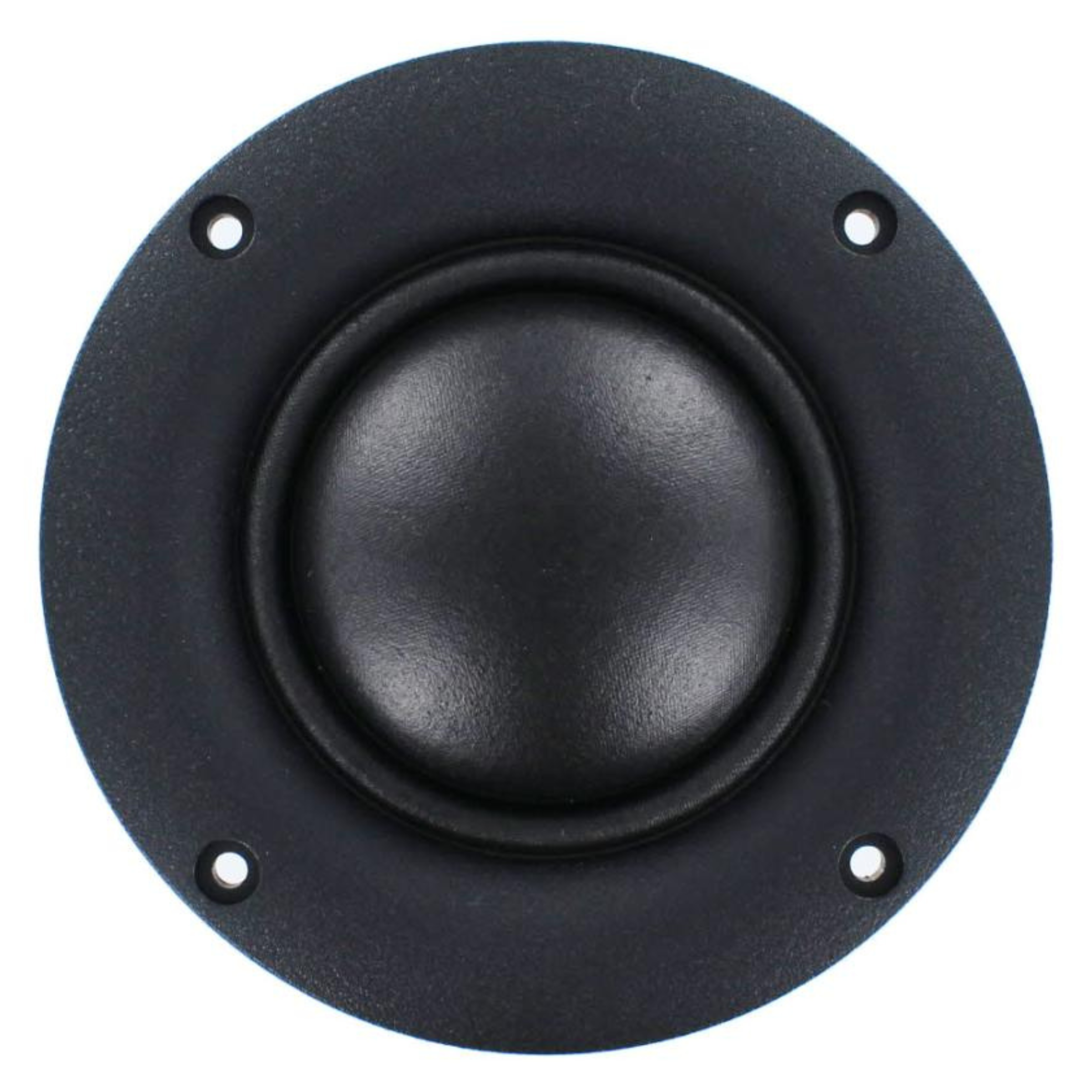

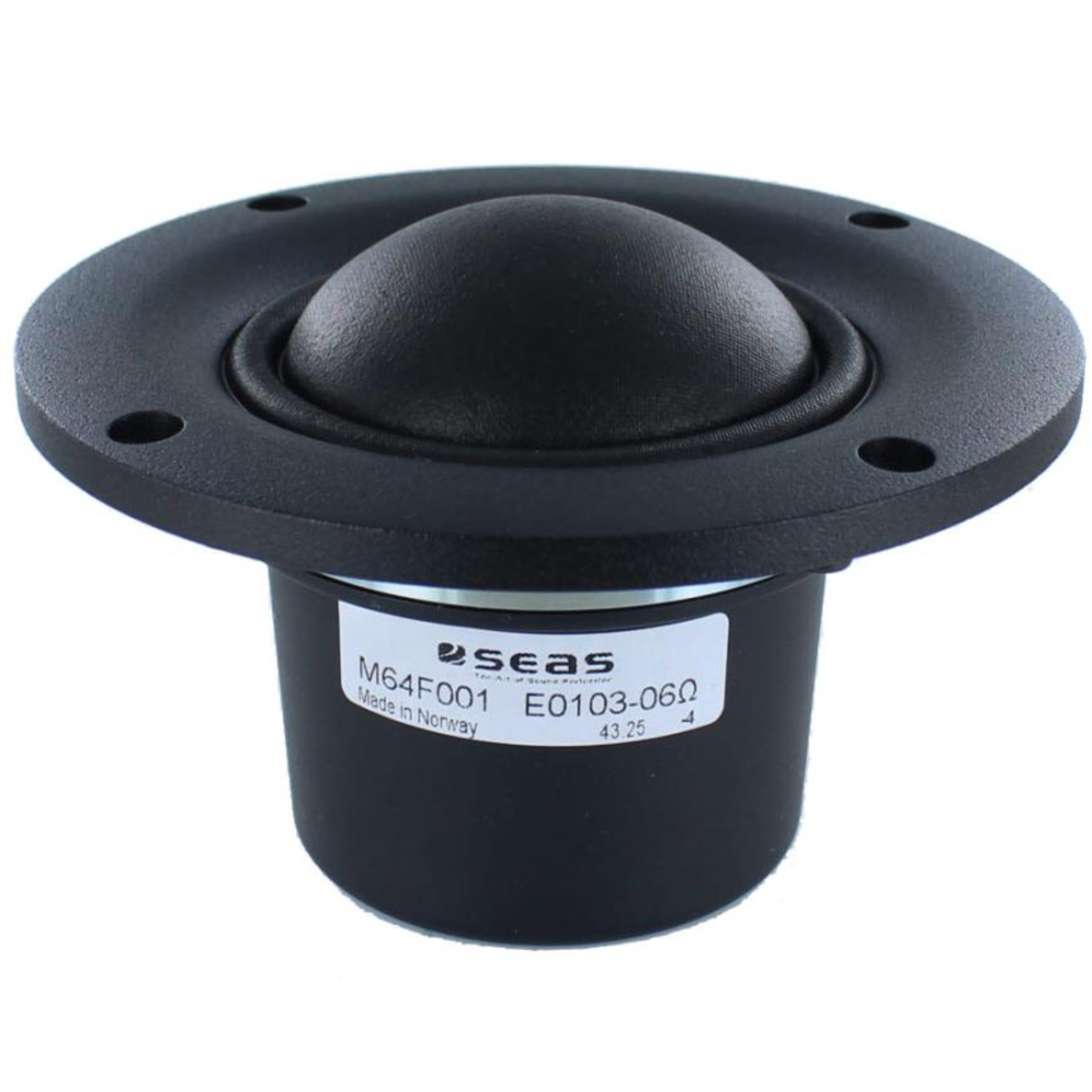

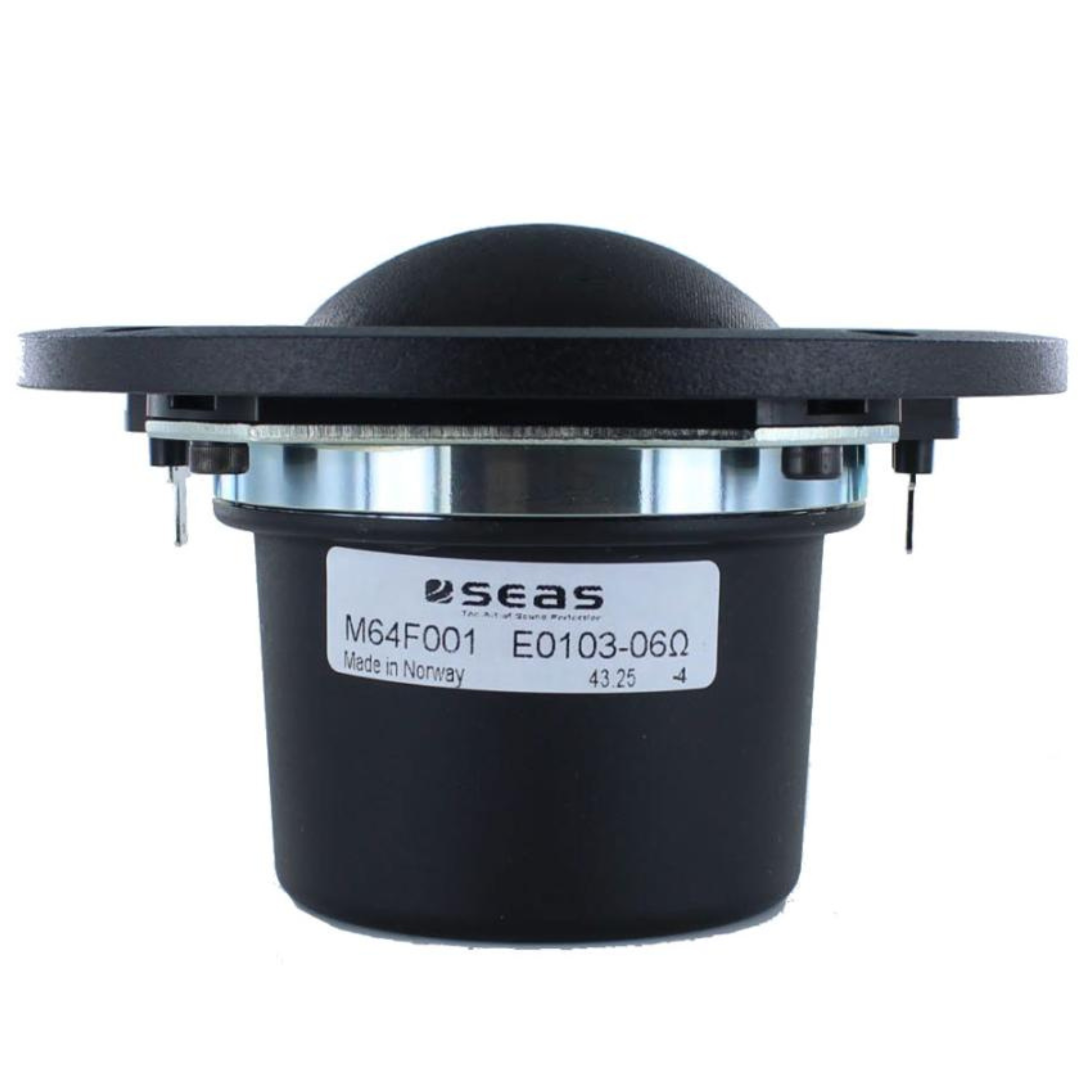

Seas Excel M64F001, 64mm (2.5in / 2-1/2in) Textile Dome Neodymium Midrange, Excel E0103, 6ohm, 130mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Tweeter Type | Textile Dome Neodymium Midrange, Excel E0103 |
| Cone / Dome Diameter | 64mm |
| Impedance | 6 ohms |
| Power Handling (RMS) | 150 W |
| Frequency Response | 350 - 10000 Hz |
| Sensitivity | 93 dB |
Classic high -end fabric dome midrange with a neodymium ring magnet system.
Custom fabric dome manufactured to SEAS’ specifications. This lightweight material with special coating provides superior sound quality.
The FEA -optimized motor system features a NdFeB magnet ring, a well -damped vented pole piece, and a rigid rear chamber. This design ensures a low resonance frequency and smooth response, while the overhung voice coil minimizes distortion.
Copper Clad Aluminium voice coil wound around a ventilated aluminium former for high sensitivity and low noise. Flexible lead out wires prevent lead breakage due to the large excursions encountered when low crossover frequencies are used.
A 7 mm thick precision machined aluminium front plate with a very slight horn loading ensures linear frequency response and provides an extremely stable platform for the magnet system and the moving parts. The M64F001 dome diaphragm offers a smooth roll -off at both ends of the frequency spectrum, making it an ideal unit for seamless integration with other drivers.
