W12CY003
- W12CY003
- SEAS EXCEL

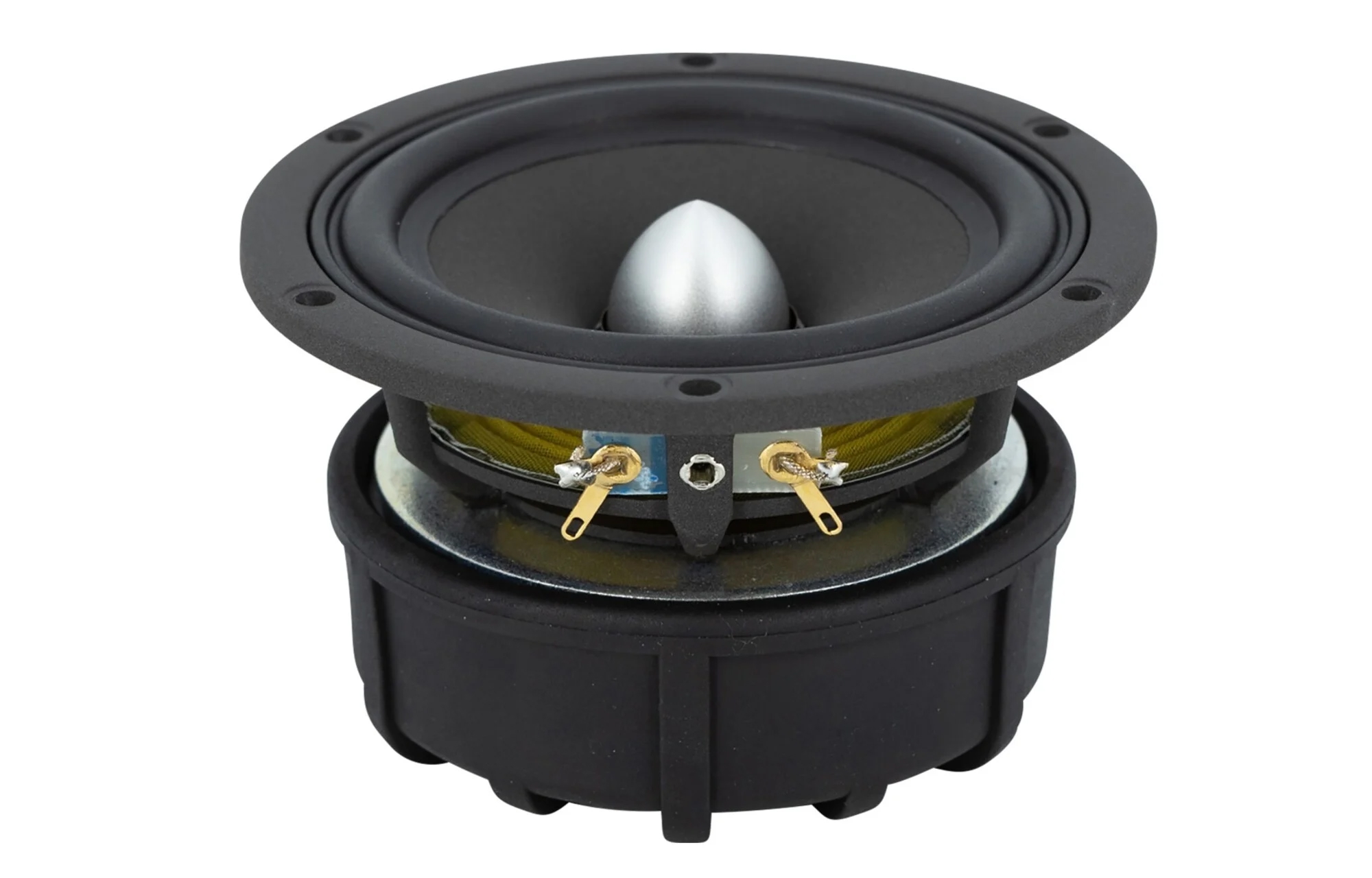

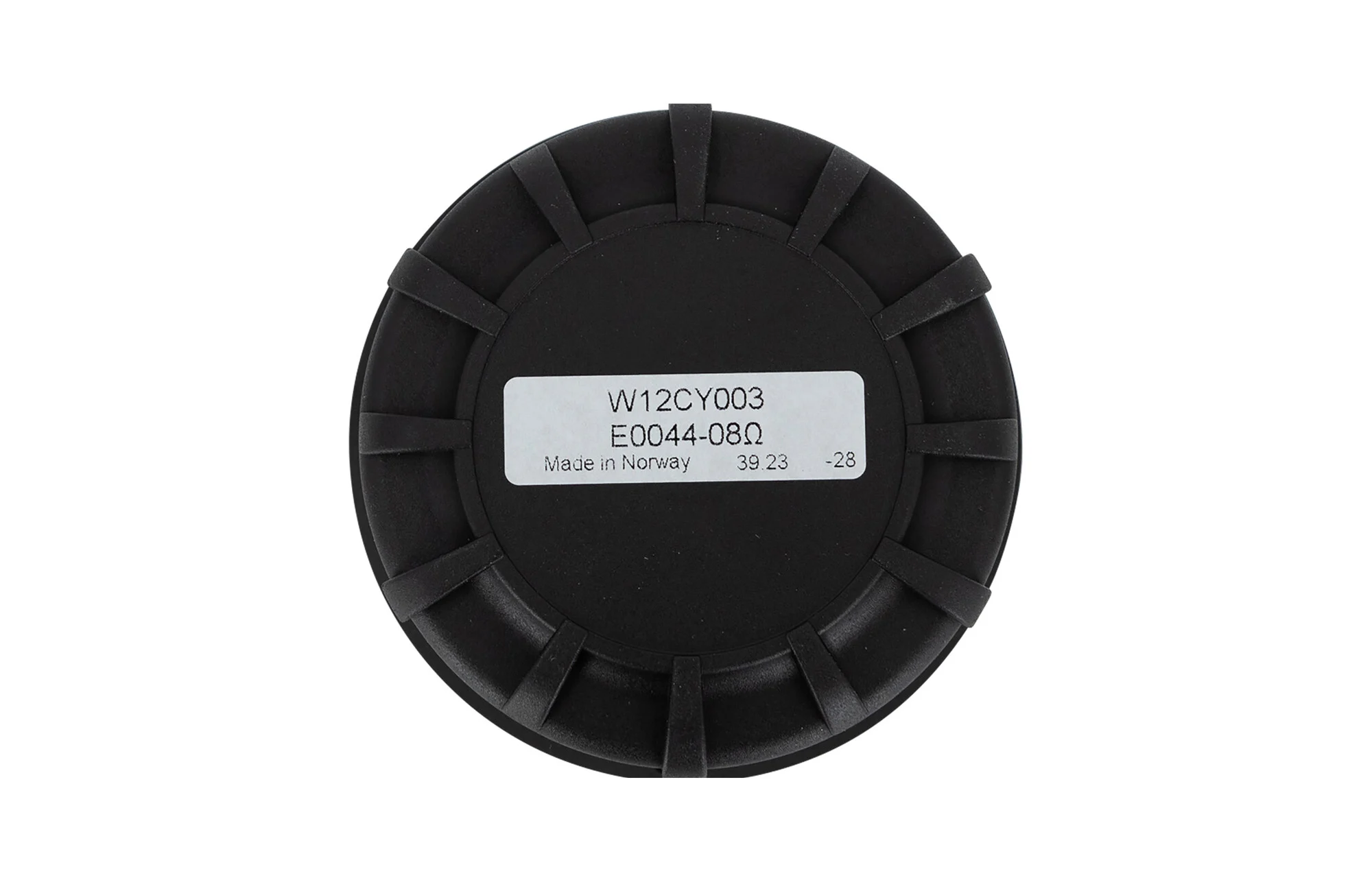

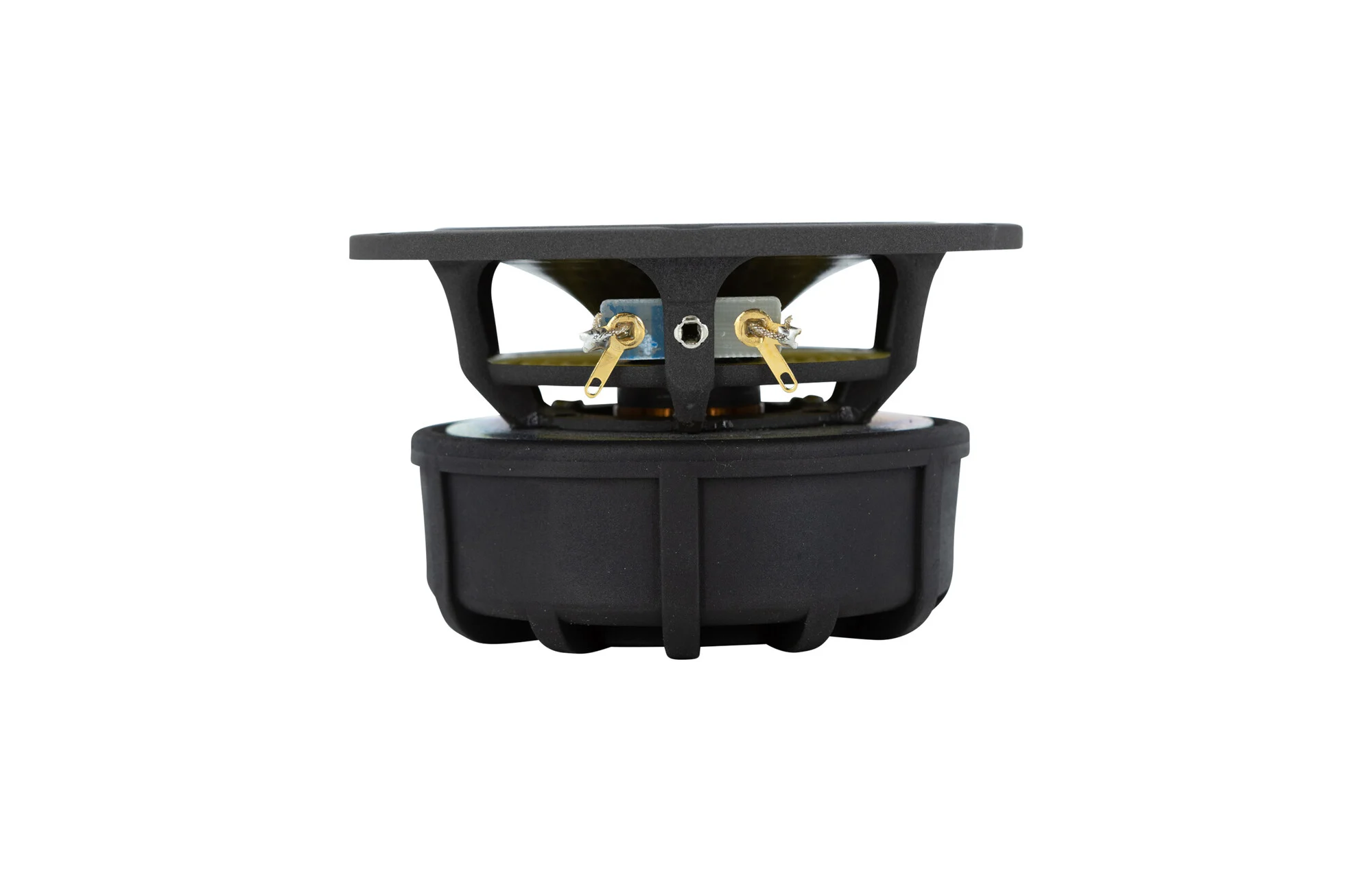

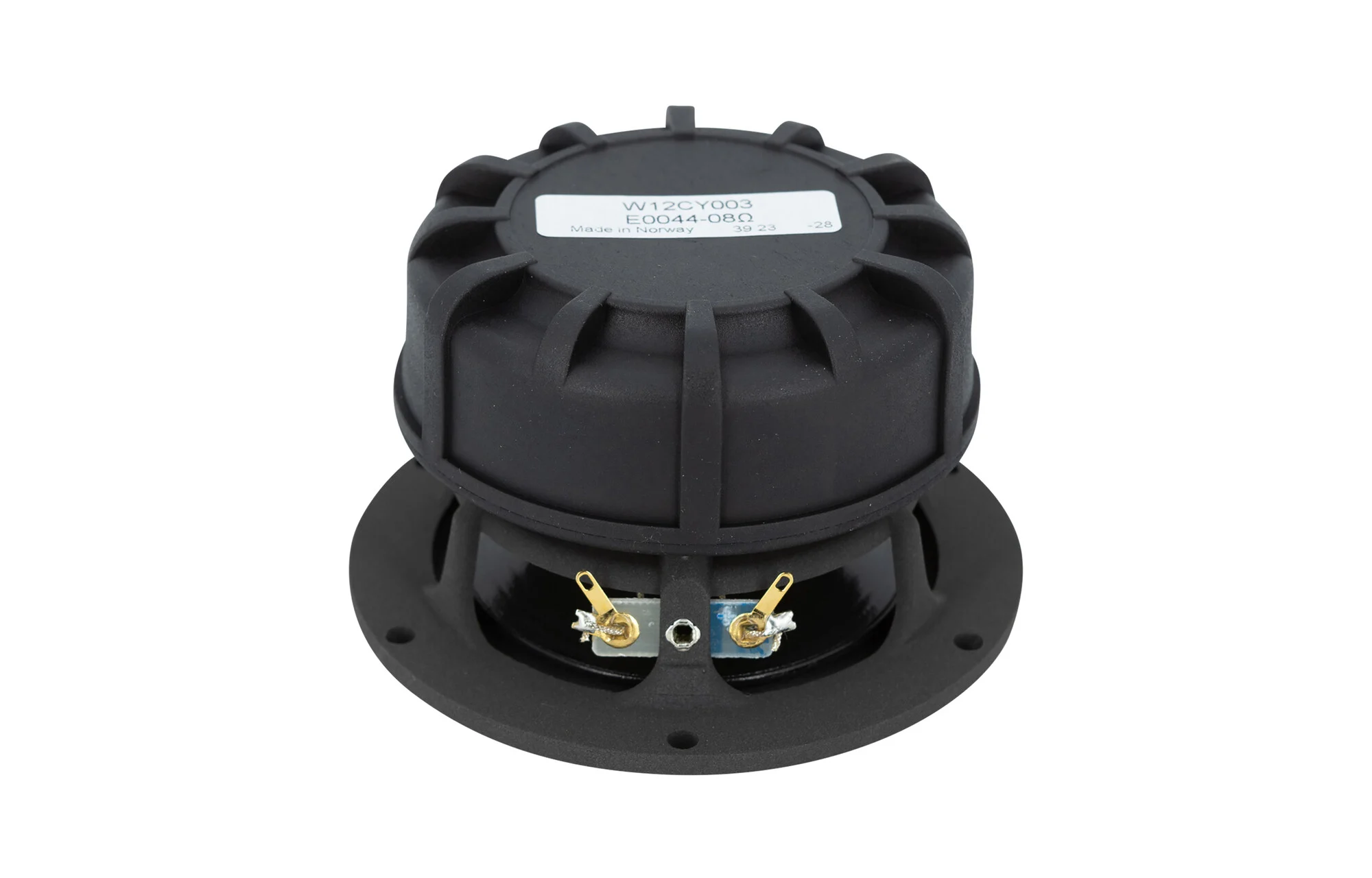

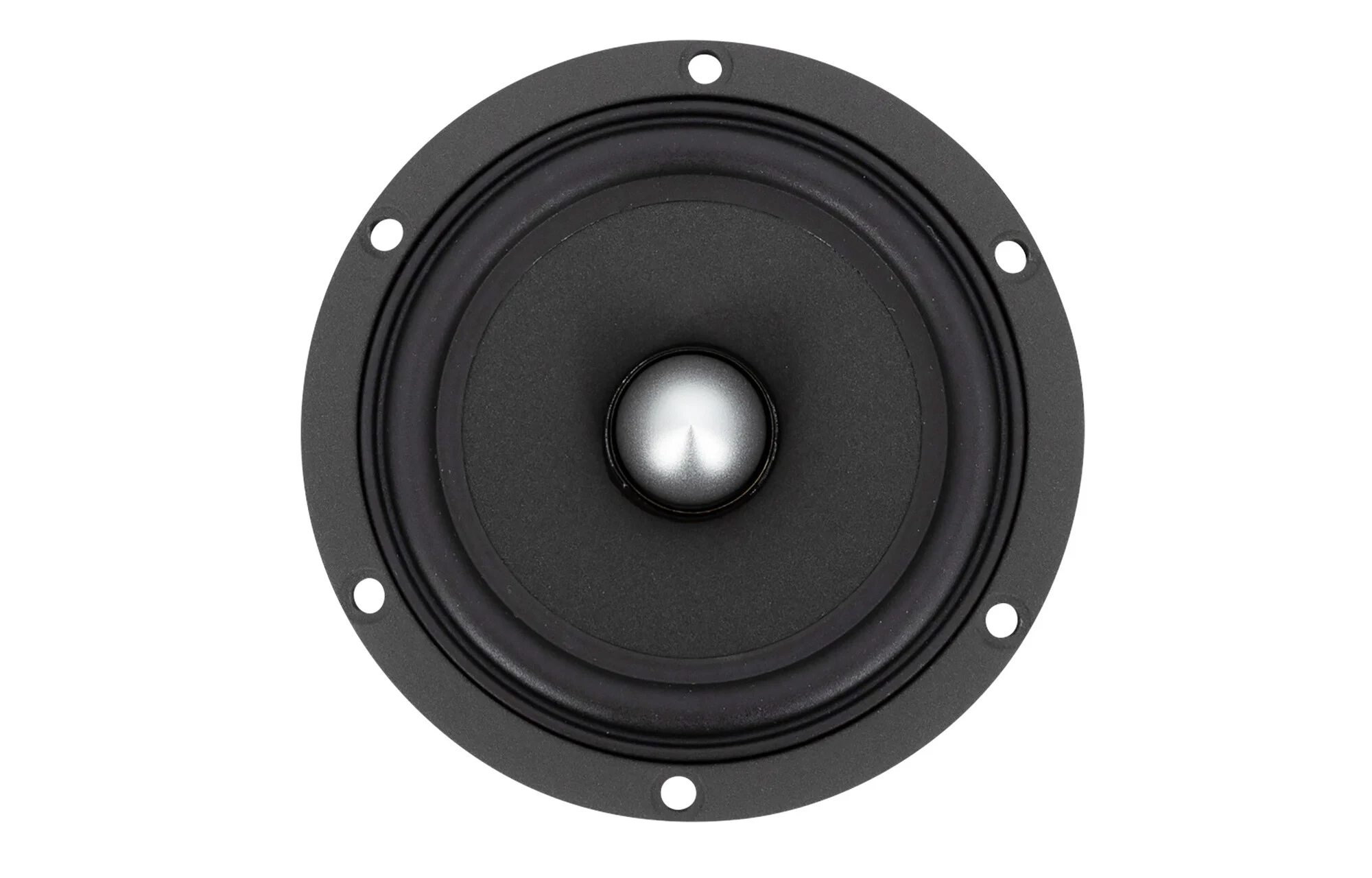

Seas Excel W12CY003, 120mm (4.5in / 4-1/2in) Nextel Cone Midbass, with 26mm Voice Coil E0044, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Speaker Type | Nextel Cone Midbass |
| Nominal Diameter | 12cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 70 W |
| Frequency Response | 60 - 3500 Hz |
| Sensitivity | 85.5 dB |
| Voice Coil Diameter | 26mm |
A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
A large magnet system provides good sensitivity and transient response.
A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.
An extremely stiff and stable injection moulded nextel coated metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
| FILENAME | ACTION |
|---|---|
| w12cy003 spec sheet.pdf | Download |
