W12CY006
- W12CY006
- SEAS EXCEL

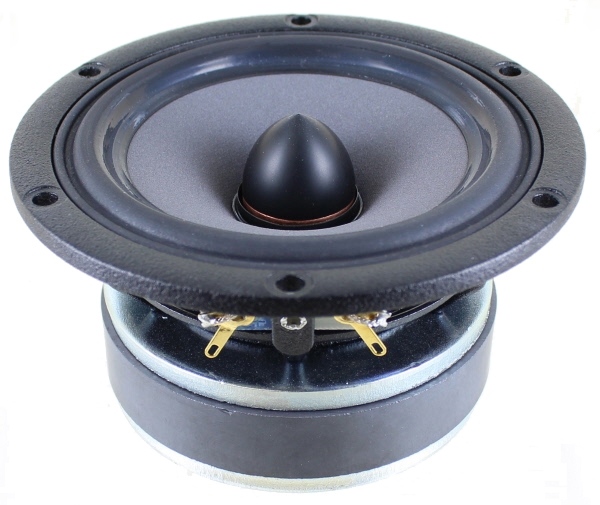

Seas Excel W12CY006, 120mm (4.5in / 4-1/2in) Nextel Cone Midbass, with 26mm Voice Coil E0091, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Speaker Type | Nextel Cone Midbass |
| Nominal Diameter | 12cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 90 W |
| Frequency Response | 50 - 4000 Hz |
| Sensitivity | 85 dB |
| Voice Coil Diameter | 26mm |

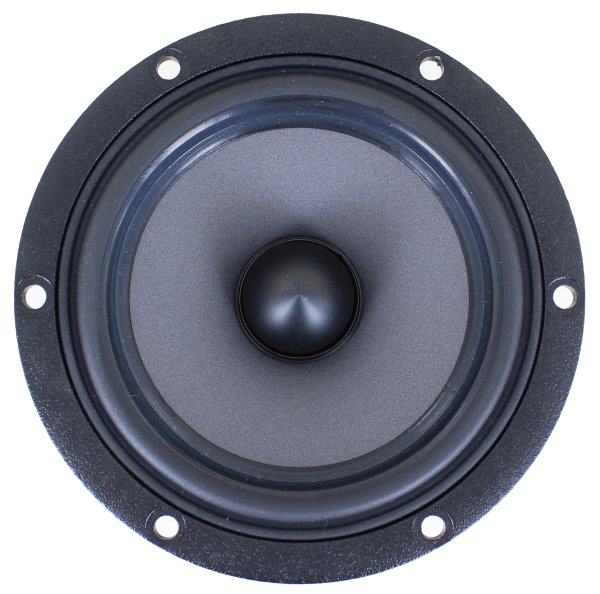

Paper cone with a unique Nextel top coating combined with a back coating and a carefully placed edge coating for extra damping gives an unparalleled smooth and detailed paper cone sound.

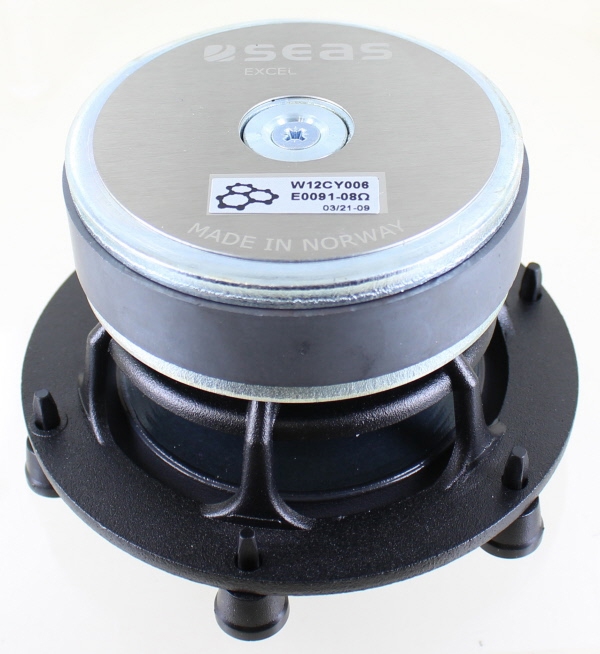

The FEA optimized motor-design represents the state-of-the-art regarding linearity and low distortion. Low mechanical and electromagnetic damping ensure high quality reproduction of even the finest micro details in music. At the same time, the high-performance titanium voice coil former and its connection to the cone has very high power-handling.
The smooth frequency response and ample linearity make it very suitable both as a dedicated midrange in a 3-way design, or as a woofer in a small compact speaker.

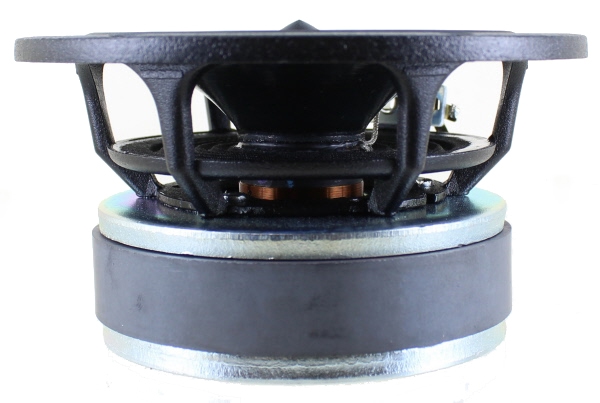

The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
| FILENAME | ACTION |
|---|---|
| w12cy006 spec sheet.pdf | Download |
