W15CH001
- W15CH001
- SEAS EXCEL

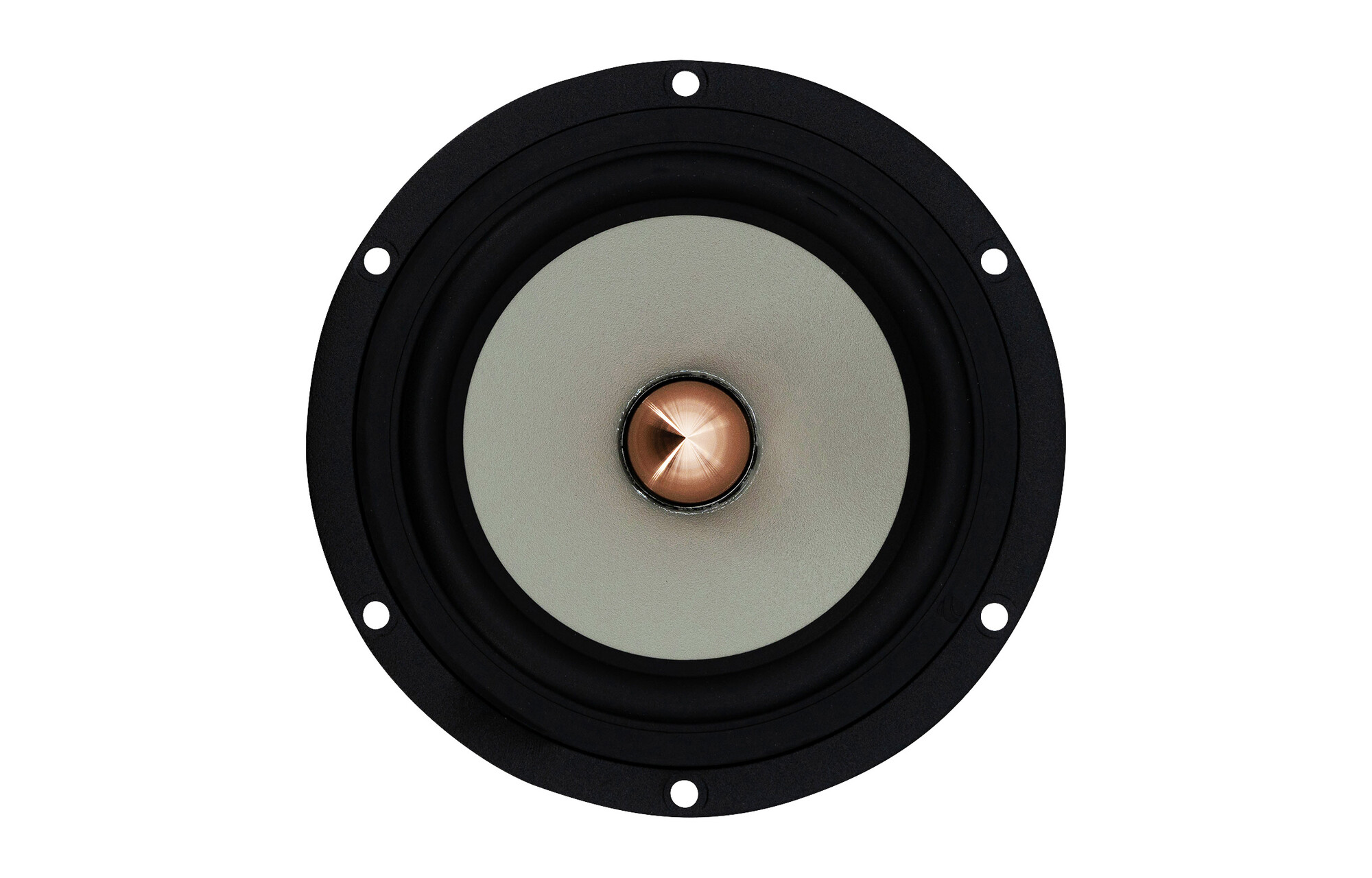

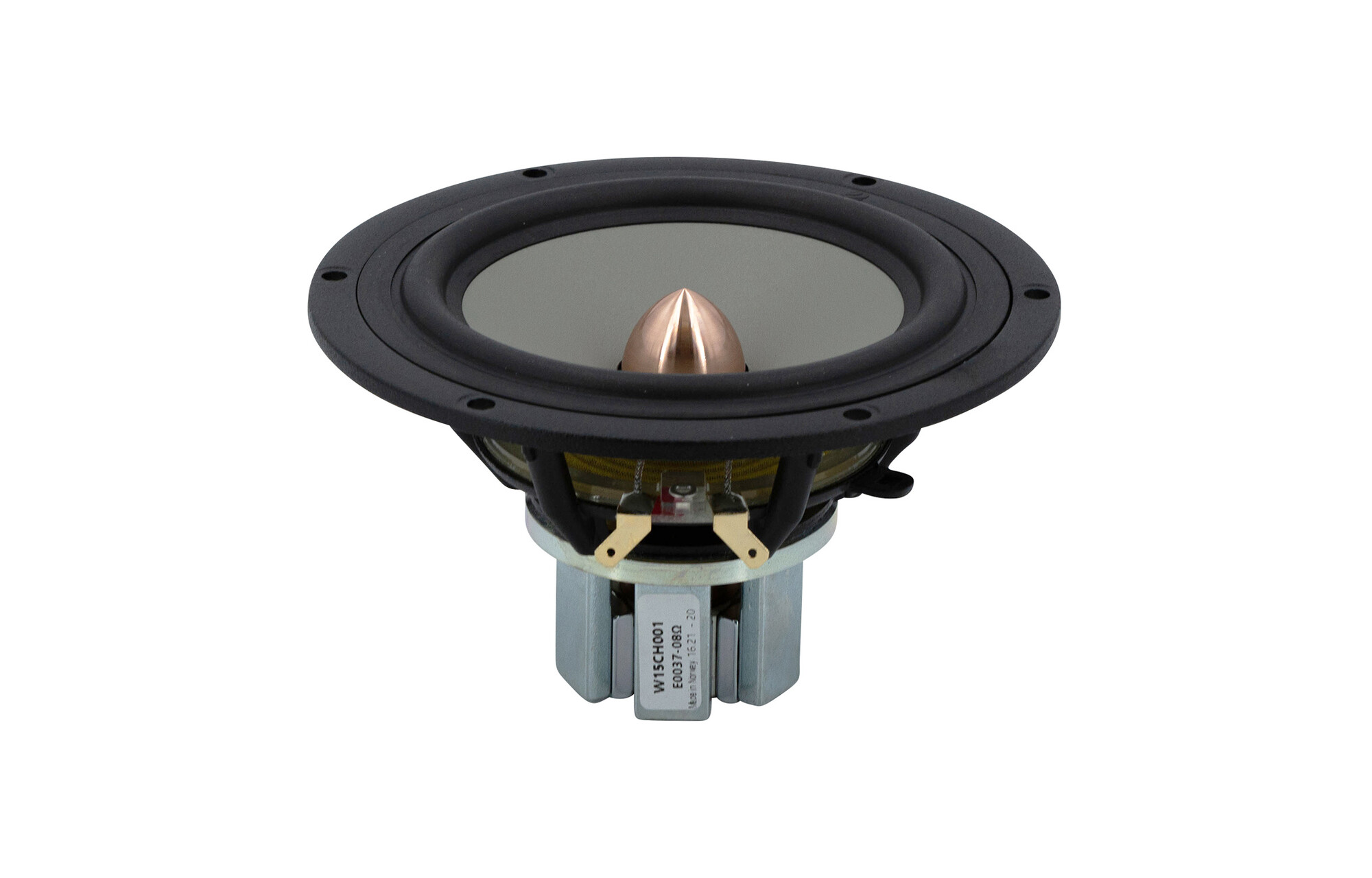

Seas Excel W15CH001, 146mm (5.5in / 5-1/2in) Magnesium Cone Neodymium Mid Bass, with 26mm Voice Coil, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Speaker Type | Magnesium Cone Midbass |
| Nominal Diameter | 15cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 70 W |
| Frequency Response | 50 - 3000 Hz |
| Sensitivity | 85 dB |
| Voice Coil Diameter | 26mm |
Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.

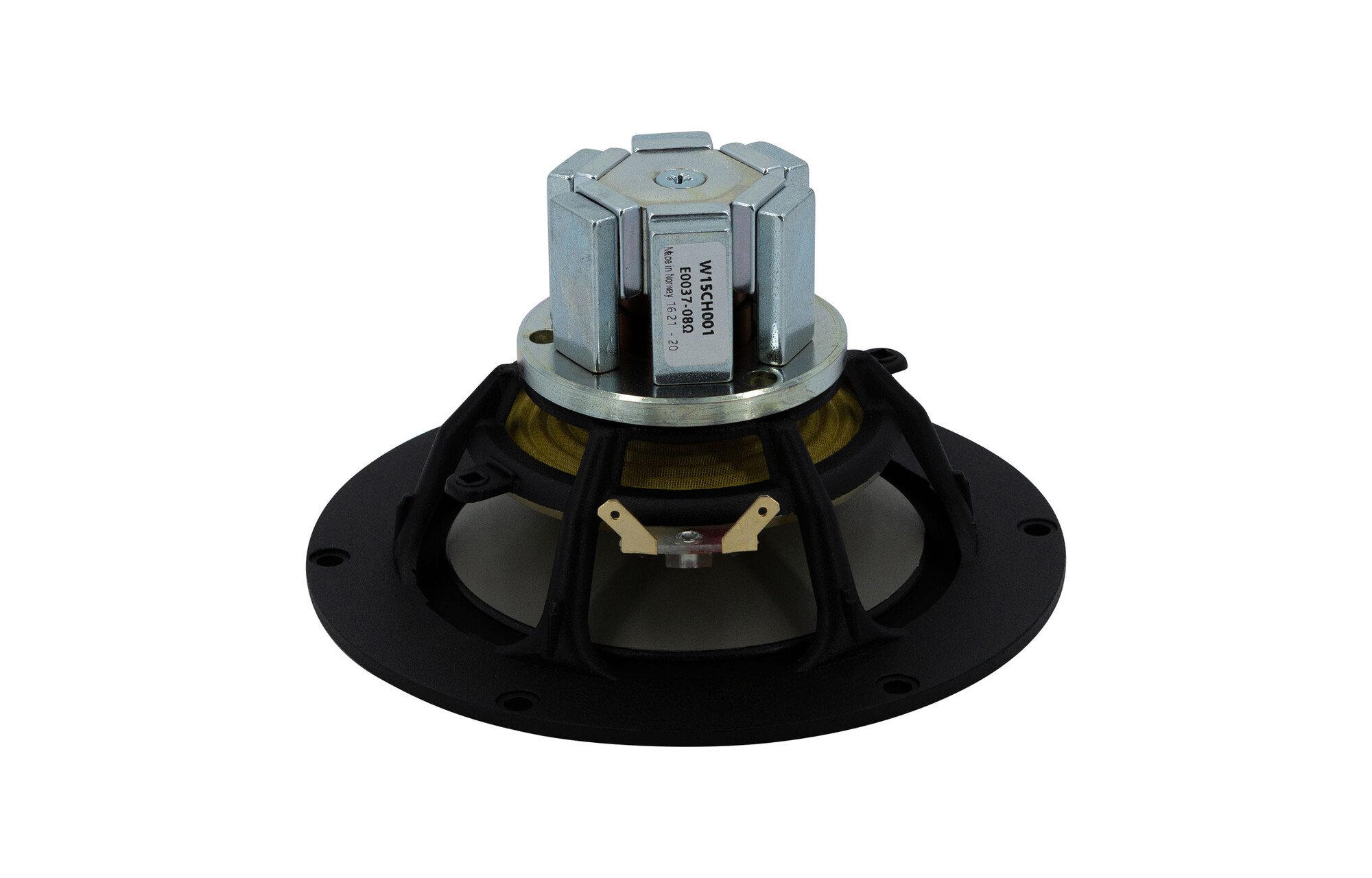

Patented Hexadym magnet system of acoustically transparent design to avoid cavity resonances and air flow noise. The magnet system based on 6 small, radially magnetized Neodymium blocks is compact to reduce the reflexion of sound energy to a minimum.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

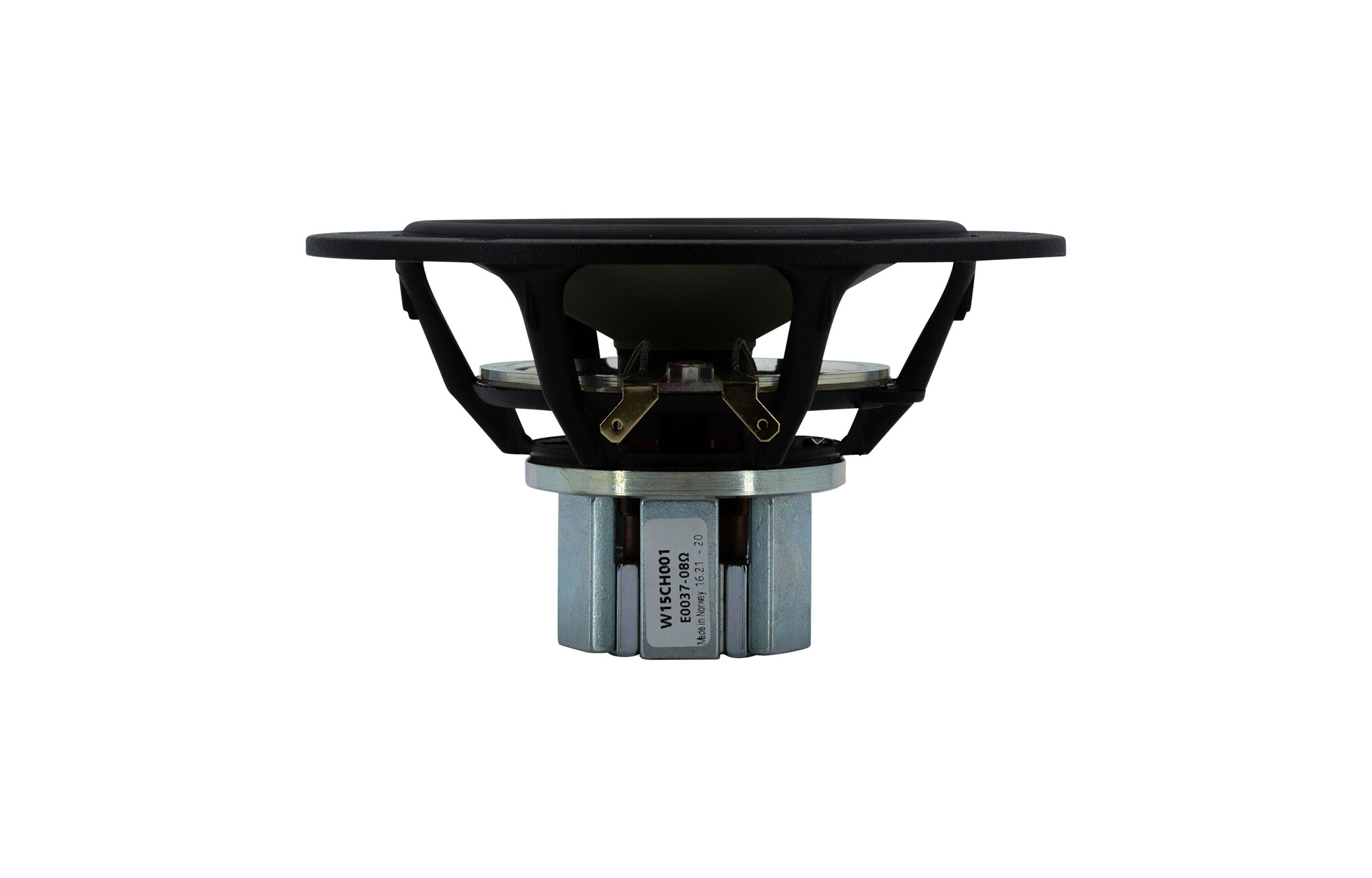

Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece.
| FILENAME | ACTION |
|---|---|
| w15ch001 spec sheet.pdf | Download |
