W19NX004
- W19NX004
- SEAS EXCEL

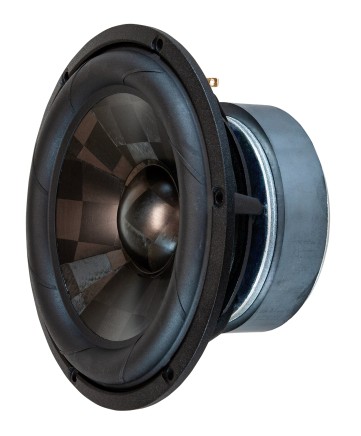

Seas Excel W19NX004, 176mm (7in) TPCD Cone Woofer, with 39mm Voice Coil, E0117, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Speaker Type | TPCD Cone Woofer |
| Nominal Diameter | 18cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 200 W |
| Frequency Response | 20 - 6000 Hz |
| Sensitivity | 86 dB |
| Voice Coil Diameter | 39mm |
Ultra-high-performance woofer, featuring a customised Composite Sound Metamodal™ TPCD diaphragm. This advanced material is engineered to a perfect balance of low weight, high stiffness, and controlled damping, ensuring unparalleled sound quality.
The magnet system is FEA optimised with precisely fitted copper parts for outstanding linearity, high power handling and minimal distortion.
The use of titanium voice coil former enhances force transfer and enables low mechanical damping, resulting in remarkably clean, transient sound reproduction that reveals the intricate micro-details the music.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. reduce sound reflection, air flow noise and cavity resonance to a minimum.
This combination results in improved clarity and finely detailed sound reproduction, for a more lifelike and realistic listening experience.
| FILENAME | ACTION |
|---|---|
| w19nx004.pdf | Download |
