W20RC3804
5 left in stock

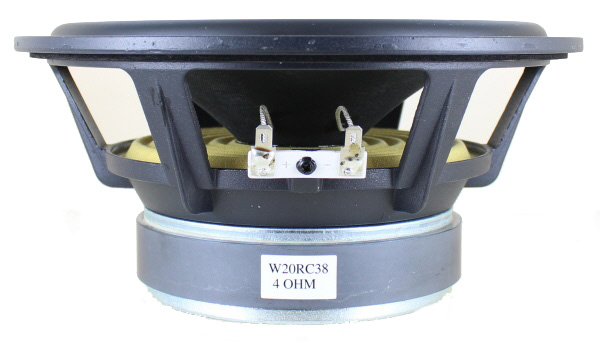

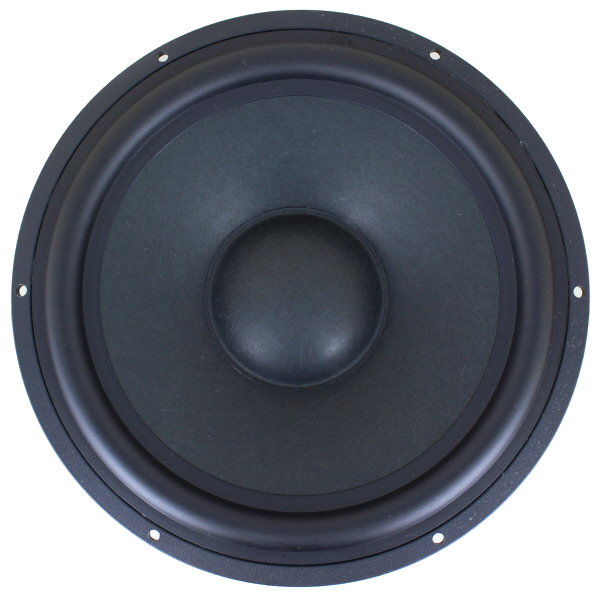

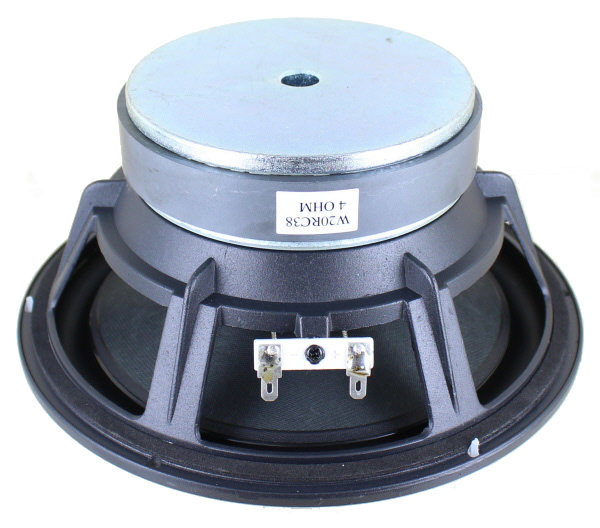

Silver Flute W20RC3804, 203mm (8in) Wool Paper Cone Woofer, with 38mm Voice Coil, 4ohm.
CA$99.00Each
- W20RC3804
- SILVER FLUTE
Silver Flute W20RC3804, 203mm (8in) Wool Paper Cone Woofer, with 38mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SILVER FLUTE |
| Speaker Type | Wool Paper Cone Woofer |
| Nominal Diameter | 20cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 100 W |
| Frequency Response | - Hz |
| Sensitivity | 93.7 dB |
| Voice Coil Diameter | 38mm |
Mechanical Specifications:
Frame diameter 203mm (8")
Cut out diameter 183mm (7.2")
Bolt hole circle 195mm (7.67")
Screw holes 4.2mm (0.17")
Flange thickness 5mm (0.20")
Depth (from back of flange) 86mm (3.39")
| FILENAME | ACTION |
|---|---|
| w20rc3804.pdf | Download |
