M22759/11-16-2

Name: M22759/11-16-2
Brand: SOLEN
SKU: M22759/11-16-2
Price: 1.51 CAD
Availability: InStock

(0)

359 left in stock

Cu/Ag 16awg Teflon Red U.S.A.

CA$1.51^Feet

Speaker Wire Bulk

Choose another model

Choose another model
CLASSIC1.6 CA$1.72^Feet
CLASSIC2.5 CA$2.55^Feet
CLASSIC4.0 CA$3.38^Feet
CLASSIC6.0 CA$4.71^Feet
FT4/12-2 CA$1.47^Feet
FT4/14-2 CA$0.85^Feet
FT4/16-2 CA$0.49^Feet
FT4/16-4 CA$0.80^Feet
LINC2.5 CA$5.34^Feet
M22759/11-10-0 CA$4.47^Feet
M22759/11-10-2 CA$4.47^Feet
M22759/11-12-0 CA$2.71^Feet
M22759/11-12-2 CA$2.71^Feet
M22759/11-14-0 CA$2.15^Feet
M22759/11-14-2 CA$2.15^Feet
M22759/11-16-0 CA$1.51^Feet
M22759/11-18-0 CA$1.47^Feet
M22759/11-18-2 CA$1.47^Feet
ODYSSEY CA$7.97^Feet
PLY2.0 CA$3.82^Feet
PLY3.4 CA$4.69^Feet
PLY3.4/S CA$5.95^Feet
Q-10 CA$47.71^Feet
QUADRAX CA$10.14^Feet
RONDO4X2.5 CA$5.07^Feet
T-14 CA$23.86^Feet
RONDO4X4.0 CA$7.28^Feet
M22759/11-14-6 CA$2.15^Feet
PRELUDE CA$18.55^Feet

Quantity

SKU: M22759/11-16-2
Brand: SOLEN

Description
Reviews (0)

Product Specifications
Manufacturer	SOLEN
Summary	Cu/Ag 16awg Teflon Red U.S.A.

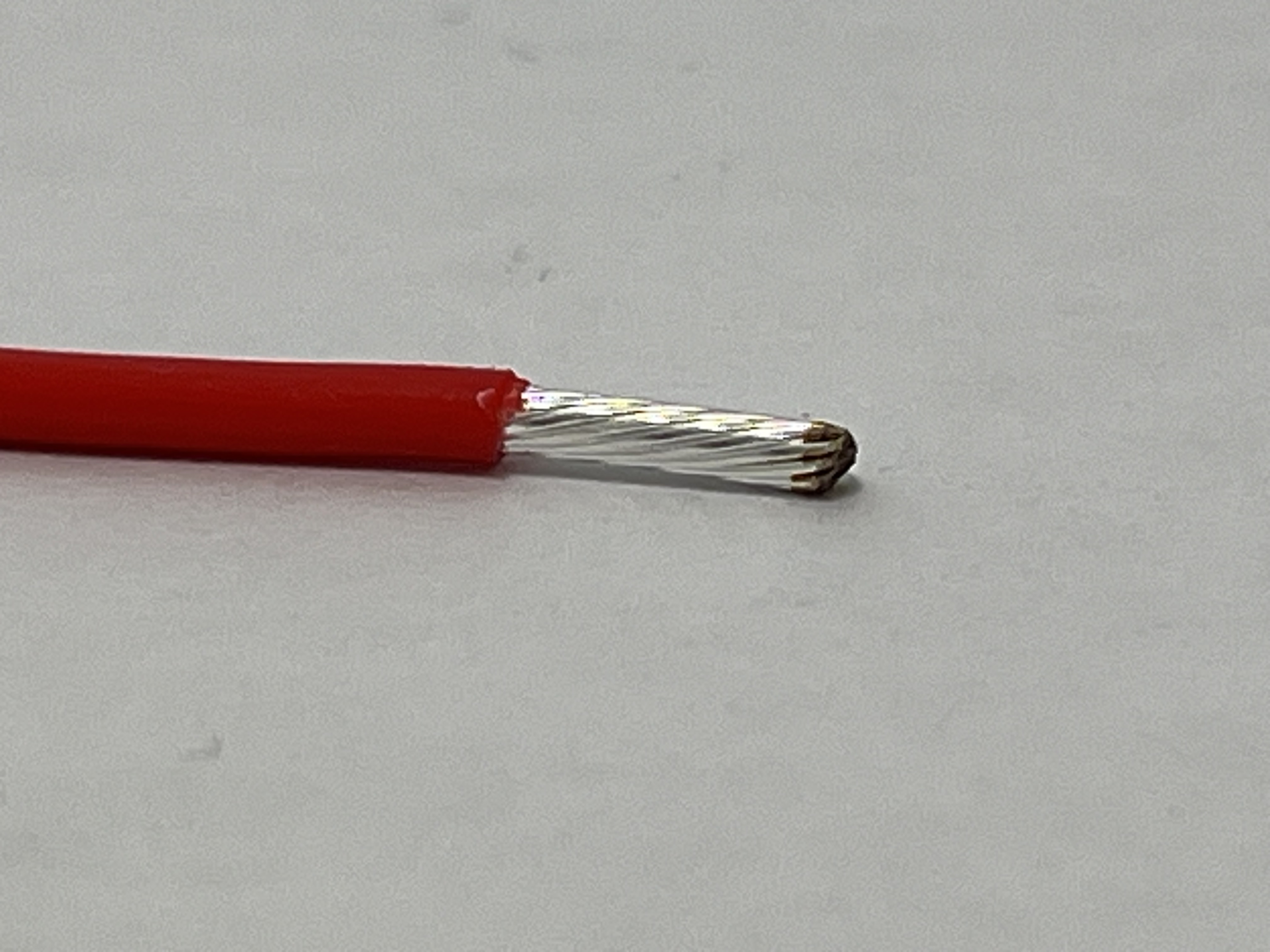

Our M22759/11-16 16 gauge cable is part of our Mil-Spec Wire and Cable line of Wire and Cable. M22759/11-16 is composed of a 19/29 stranded silver-coated copper conductor with polytetrafluoroethylene (PTFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 200°C, and weigh approximately 10 lbs/MFT. Per specification, this product will have splices. If continuous lengths are needed, please ask.

Part Number	M22759/11-16
AWG Size	16
Conductor Stranding	19/29 (0.0040 ohm/ft)
Approx LBS/MFT	9.64
Min O.D. (in)	0.073
Max O.D. (in)	0.077
M27500 Component	RC
Mil-Spec	M22759/11
SAE Spec	AS22759/11
Cond. Material	Silver-Coated Copper
Insul. Material	Polytetrafluoroethylene (PTFE)
Max. Temp	200°C

M22759/11-16-2
