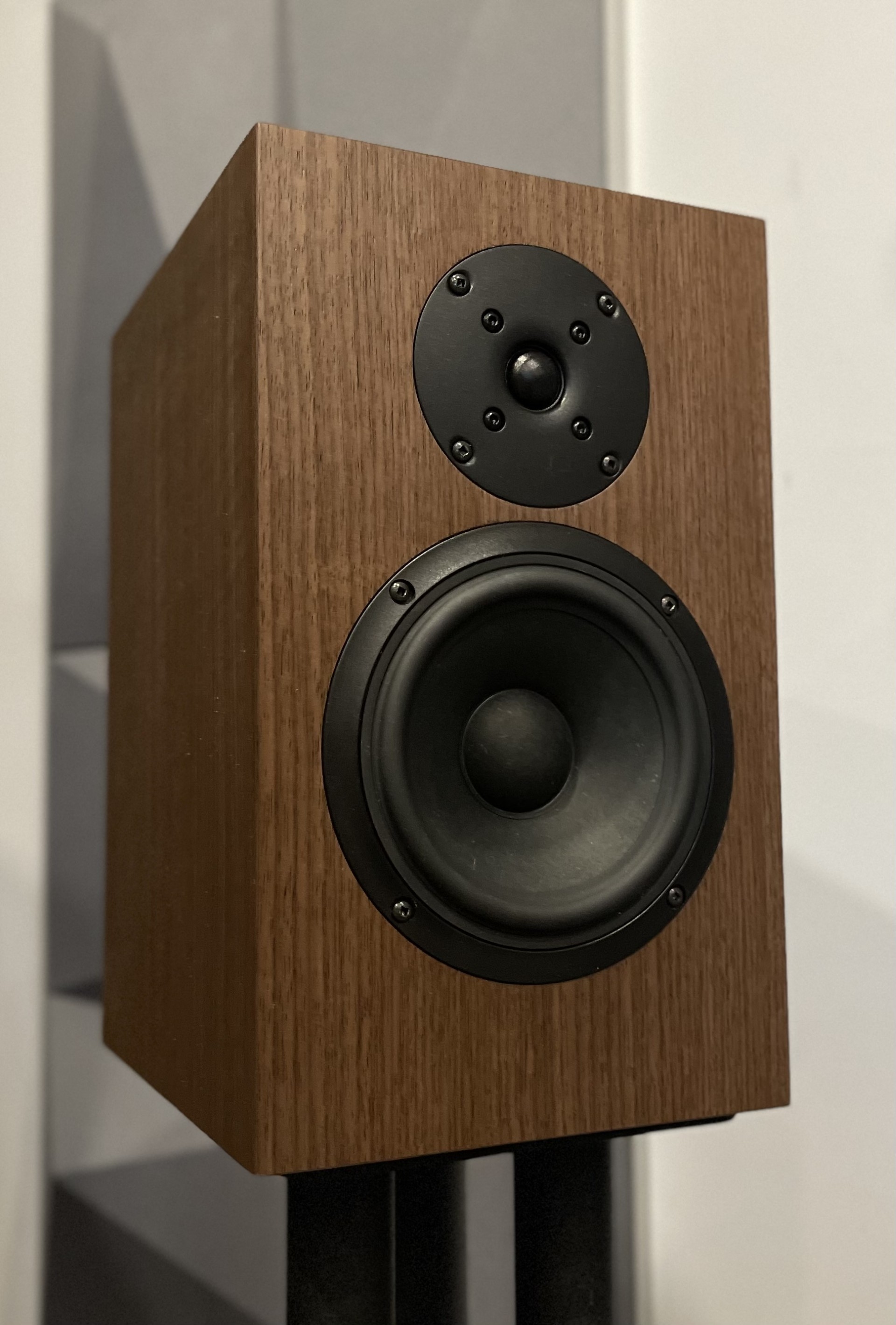

Solen MURA 5B V2, 2way Speaker Kit using the SB-Acoustics SB13PFCR25-8 and SB19ST-C000-4.
The Solen MURA 5B V2 speaker kit was designed with the goal of having exctionaly good sounding speaker at a very low cost.

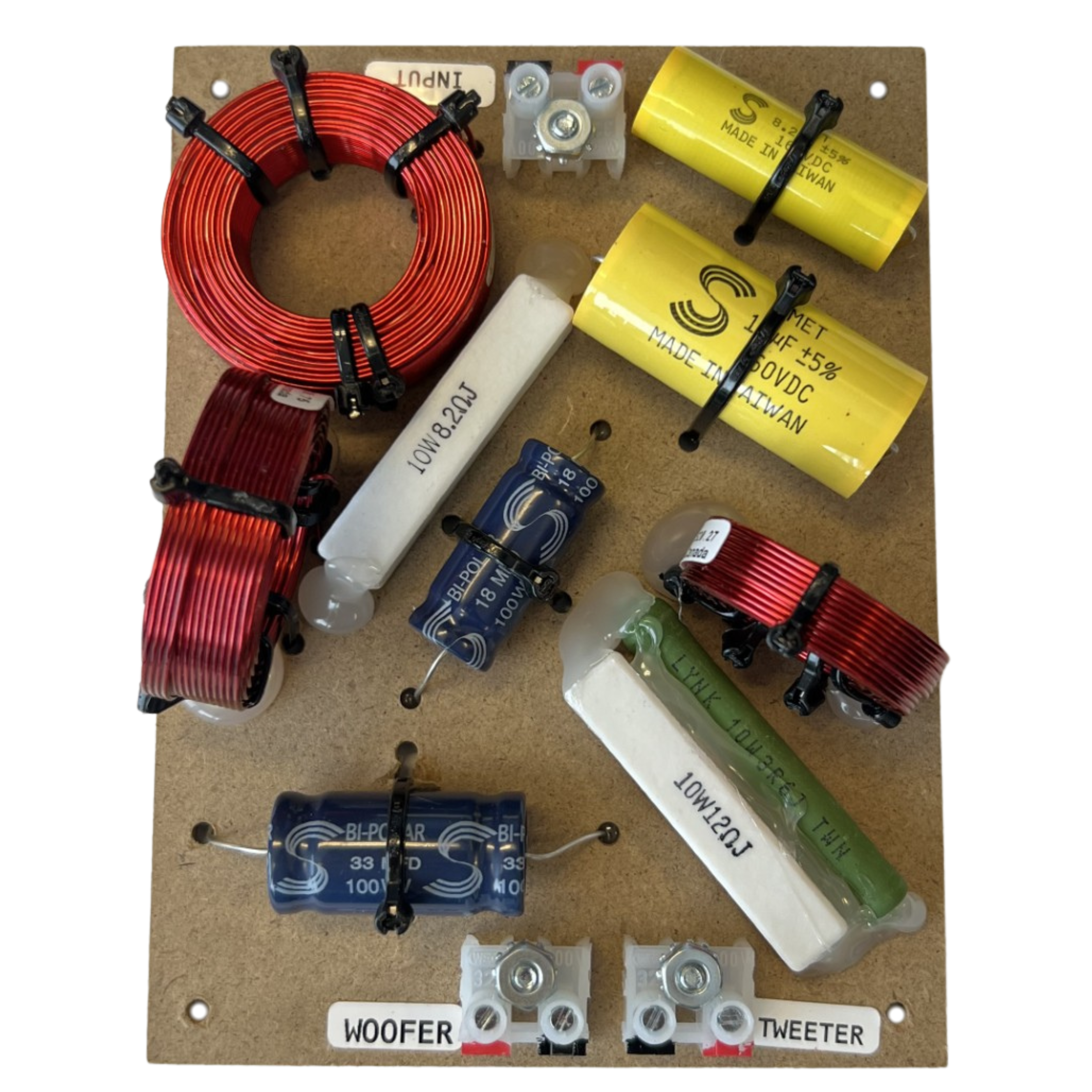

The MURA 5B V2 crossover topology has been updated from the orignal version to get smoother and more open midrange.
It is composed of a 3rd order high pass network on the tweeter and 2nd low pass network on the midbass.
Bass extension down in the low 40Hz (in-room) is solid and controlled.
HIGHLIGHTS
- Big soundstage from a small footprint
- Strong and controlled bass
- Smooth yet detailed sound
SPECIFICATIONS
- HIGH FREQUENCY DRIVER : SB Acoustics SB19ST-C000-4
- LOW FREQUENCY DRIVER : SB Acoustics SB13PFCR25-8
- FREQUENCY RESPONSE ON AXIS (±3dB) : 58 Hz - 30 kHz
- LOW FREQUENCY EXTENSION (-10dB IN A TYPICAL ROOM): 35 Hz
- SENSITIVITY IN-ROOM (2.83V/1m): 86.5 dB
- IMPEDANCE : 8Ω (minimum 4.4Ω at 320Hz)
- EXTERNAL DIMENSIONS (HxWxD) : 317.5x190.5x241.3 mm (12½x7½x9½ in)
- RECOMMENDED AMPLIFIER POWER : 50W+ at 8Ω
- WEIGHT : 5.2 kg (11.4 lbs) each
Solen offers the detailed plans if you want to build the cabinets yourself.
We also have CNC machined Flat Pack Cabinets available separately.
MURA 5B BOX FP = Flat Pack MDF unassembled
!!! NO ASSEMBLY INCLUDED !!!
!!! CABINETS NOT INCLUDED !!!
!!! MURA 5B V2 CROSSOVER BOARDS ARE INCLUDED !!!
| KIT CONTENT |
| QT | PART # | ITEM | MANUFACTURER |
| 2 | SB19ST-C000-4 | 19mm TEXTILE DOME TWEETER, 4 OHMS, 88MM FACEPLATE | SB ACOUSTICS |
| 2 | SB13PFCR25-8 | 150mm FIBER CONE MIDWOOFER, 8 OHMS | SB ACOUSTICS |

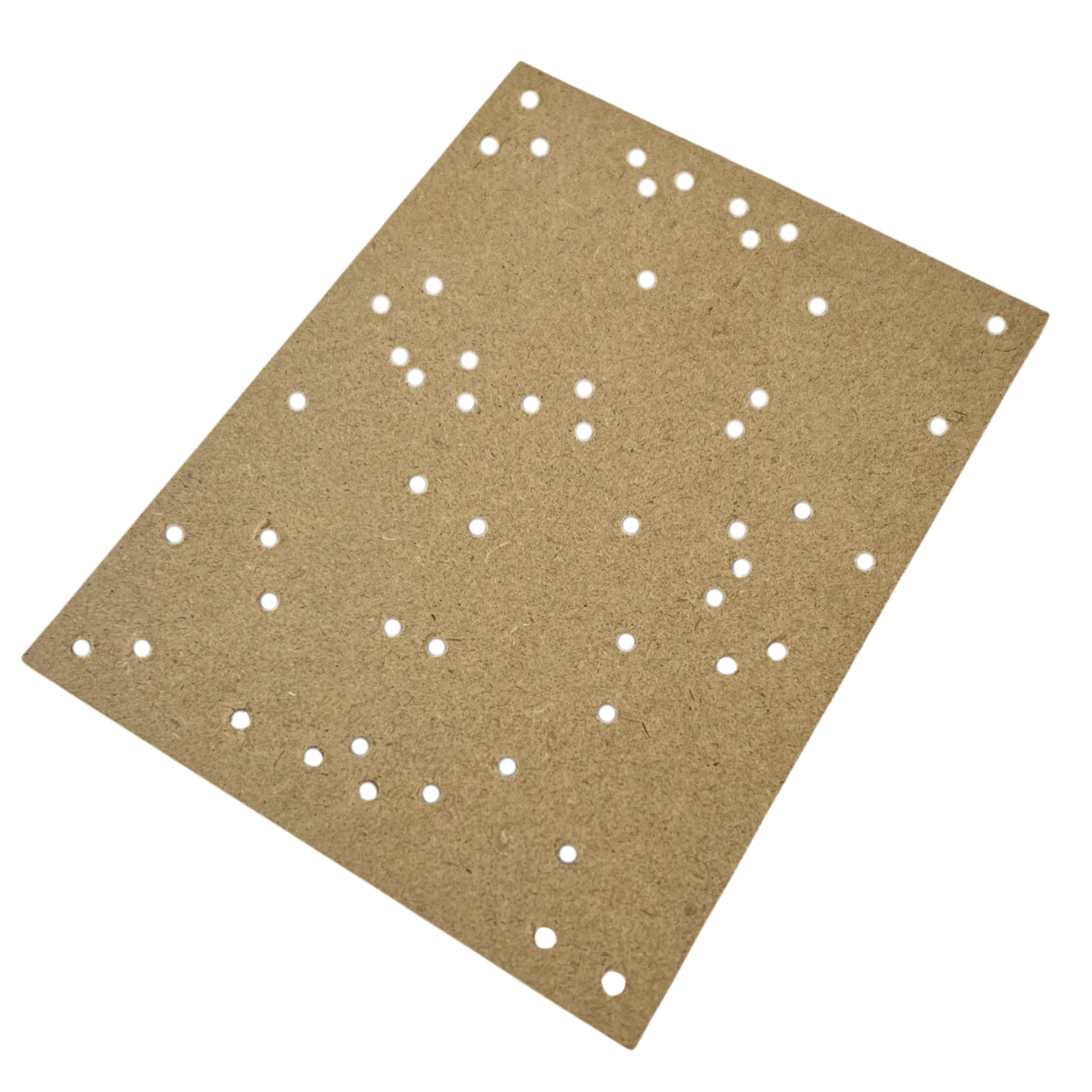

| 2 | MURA 5B V2 BOARD | CROSSOVER BOARD FOR SOLEN MURA 5B V2 SPEAKER KIT | SOLEN |
| 2 | PEMT160J825 | 8.2mfd 160v Metallized Polyester Caps | SOLEN |
| 2 | PEMT160J186 | 18mfd 160v Metallized Polyester Caps | SOLEN |
| 2 | B05A100K186 | 18mfd 100v Electrolytic Caps | SOLEN |
| 2 | B05A100K336 | 33mfd 100v Electrolytic Caps | SOLEN |
| 2 | S20.27 | 0.27mH 20awg, 0.34ohms DCR, 10mm H x 38mm D | SOLEN |
| 2 | S201.0 | 1.0mH 20awg, 0.70ohmS DCR, 13mm H x 51mm D | SOLEN |
| 2 | S20.75 | 0.75mH 20awg, 0.60ohmS DCR, 13mm H x 51mm D | SOLEN |
| 2 | MO1000J3R6 | 3.6 Ohms 10 W Link Metal Oxide Non-Inductive Resistors | SOLEN |
| 2 | WWSQP10J12R | 12 Ohms 10 W Wirewound Resistors | SOLEN |
| 2 | WWSQP10J8R2 | 8.2 Ohms 10 W Wirewound Resistors | SOLEN |
| 6 | 322GDS | DUAL CROSSOVER TERMINAL | SOLEN |
| 20 | TY5232MX | Tie Wrap 2.3mm x 20cm | SOLEN |
| 24 | 6X3/4P | Pan Srew #6x3/4" | SOLEN |
| 8 | 6X1/2P | Pan Srew #6x1/2" | SOLEN |
| 2 | RPT17GAS | ROUND GOLD PLATED BINDING POST CUP | SOLEN |
| 1 | POLYESTER | White Bonded Polyester Batting, 12" off a roll of 42", x1.5"(38mm) | SOLEN |
| 8 | FT4/16-2 | FT4/CL2 rated 2 Conductors 1.3 mm (16ga) Diameter Wire | SOLEN |
| 6 | GFD205-1614R | RED Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 2 | GFD205-1614B | BLACK Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 4 | GFD110-1614B | BLACK Fem. Disc. .110 16/14 Gold Plated Brass | SOLEN |
| FILENAME | ACTION |
|---|---|
| SOLEN MURA 5B v2 - USER MANUAL V01.pdf | Download |
