SP1-4000-HT
Out of stock

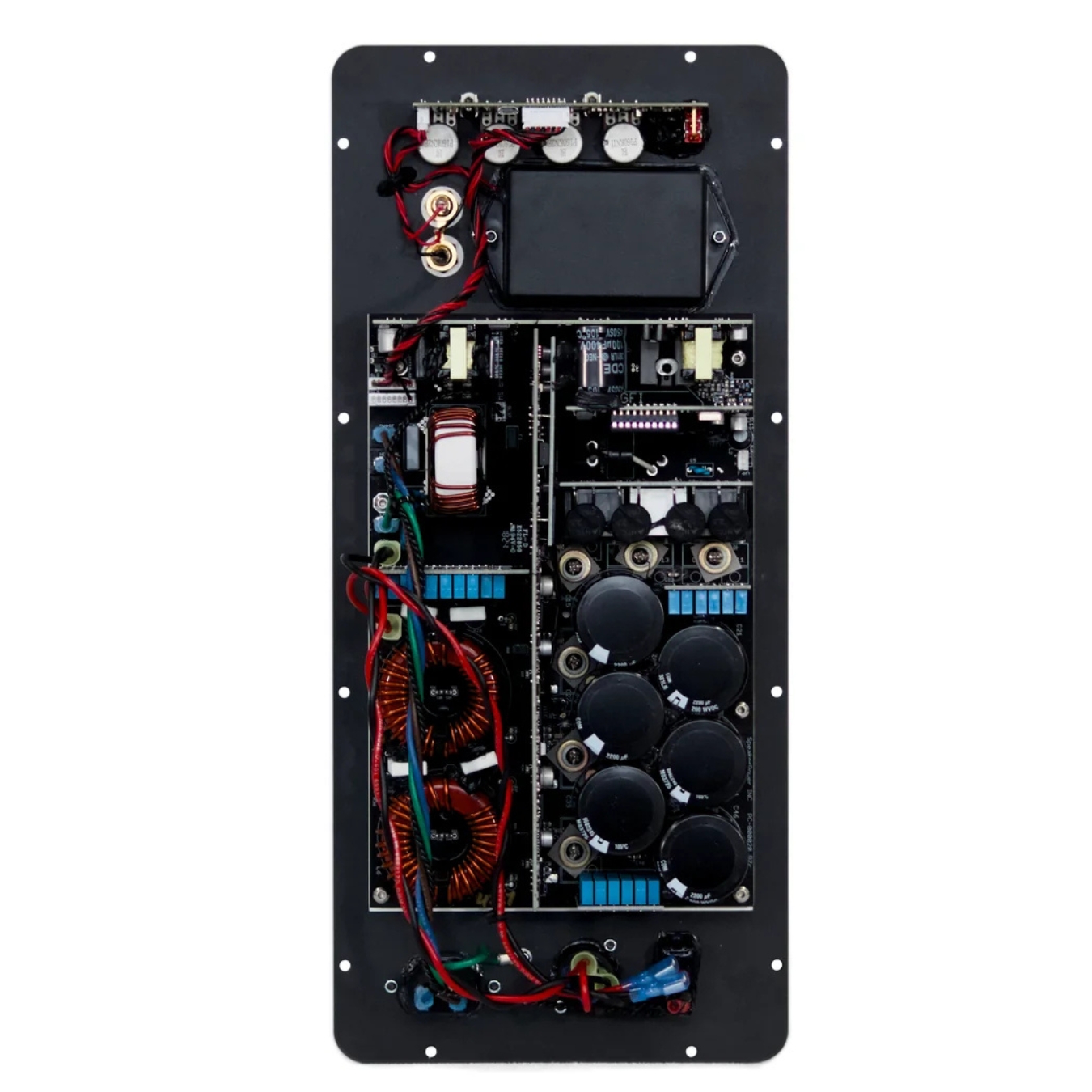

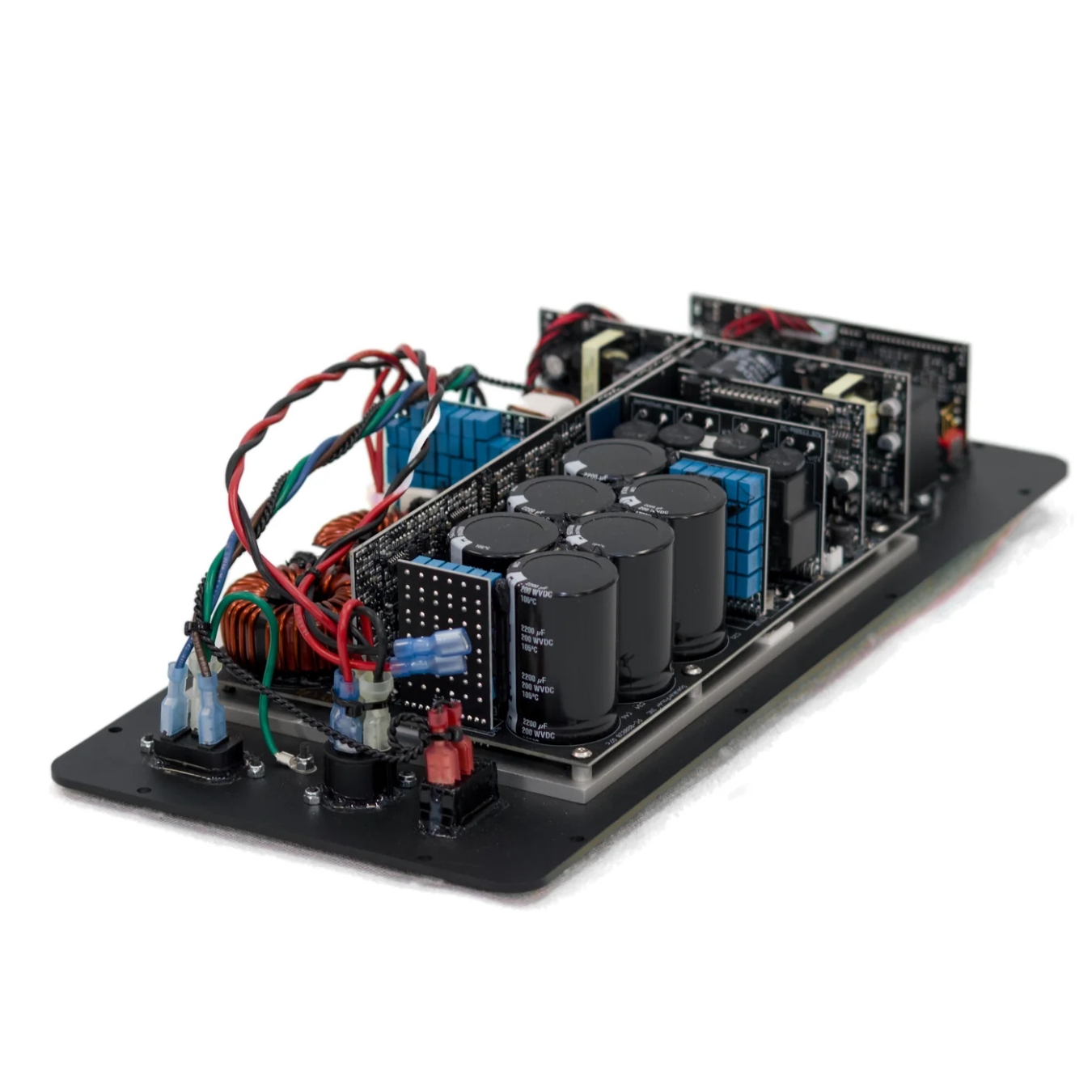

SPEAKER POWER SP1-4000-HT, 2600w Class D Subwoofer Plate Amplifier.
CA$2,228.80Each
- SP1-4000-HT
- SPEAKERPOWER
SPEAKER POWER SP1-4000-HT, 2600w Class D Subwoofer Plate Amplifier.
Mono Block Subwoofer Plate Amplifier
Home Theater (HT)
STABLE at 1 ohm
4000W at 2 ohms
2600W at 4 ohms
1500W at 8 ohms
115 VRMS (162 Vp) at Hi-Z
Subwoofer DSP Controls
OVERVIEW:
- This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
- Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
- The MONOBLOCK architecture ensures consistent and powerful performance.
FEATURES:
3-MODE SWITCH
- ON - Amplifier ON
- AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
- OFF-12V - Amplifier OFF, 12V TRIGGER enables amp
CONNECTIONS
- 3.5mm minijack 12V TRIGGER (IN / THRU)
- DUAL RCA (Single-ended) Summing with LFE
- XLR (Balanced) with Looping out (THRU)
- IEC C13 AC mains connector
- NL-4 SPEAKON auxiliary speaker connector
LED INDICATION
- GREEN - ON, Amplifier ready to pass signal
- RED - STBY, Amplifier is in low-power standby
ROTARY CONTROLS
- GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
- LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
- X-OVER - 60Hz to OUT (500Hz)
- DELAY - 0ms to 20ms
SPECIFICATIONS:
- AMPLIFIER TOPOLOGY CLASS-D
- POWER SUPPLY 4000W
- FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
- AMPLIFIER GAIN 45dB
- AC MAINS 100 - 125VAC 50/60Hz (120VAC ONLY)
- STANDBY POWER DRAW 10W
- COOLING ALUMINUM HEATSINK
- INPUT SENSITIVITY 316mV (at MAX GAIN)
- INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
- OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
- DIMENSIONS
- HEIGHT 15.7 in. (399 mm)
- DEPTH 2.7 in. ( 67 mm)
- WIDTH 7 in. (178 mm)
- WEIGHT 6 LBS (2.72 kg)
