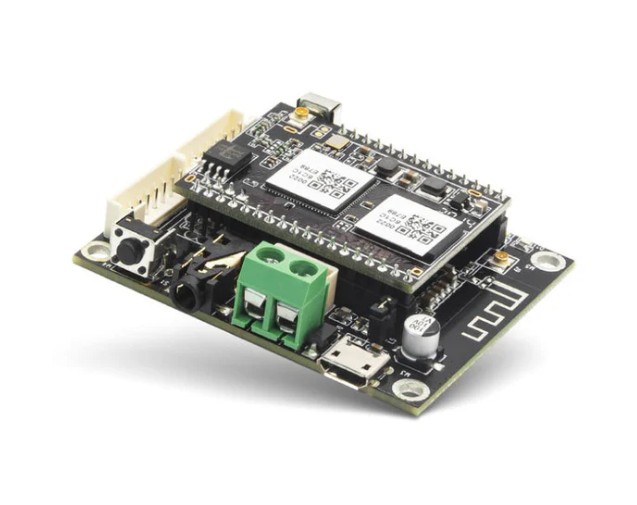

UP2STREAM MINI, Multiroom WiFi Streamer Board.
A Range Of Options To Suit Your Design
-
Wireless Capability
- AirPlay
- Spotify Connect
- WiFi
- Bluetooth
- DLNA
- UPnP
-
Multi-room
- Sync audio in all rooms
- Play different songs at the same time
- Support available audio input souce for multiroom streaming.
-
Music Service
Spotify, Apple Music Amazon Music, Tidal, Qobuz, TuneIn, Internet Radio, BBC Radio, Napster, iHeart Radio, Radio Paradise.
-
Lossless Audio
- Decoding up to 192khz/24bit, and output with CD quality.
- Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
-
Local Music Source
- Support phone storage, and NAS.
-
4STREAM APP
- Free iOS & Android APP
- Manage all Arylic streaming devices in one APP
- Full multiroom control
-
Optional Remote Control
- Easy to control your music playback from a distance.
Rename Your Device
With the 4STREAM APP, you can rename your Up2Stream streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.
Control In Your Favorite Way
-
AirPlay
Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes.
-
Bluetooth
Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more.
-
4STREAM & GO CONTROL APP
Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name.
-
Web Control
listen to the radio and your favorite playlists easily via web browsers.
DLNA/UPnP
Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000.
PC Sound Card
Once you connect the Up2Stream Mini to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2Stream Mini. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.
10 band EQ
Use GO CONTROL APP for 10 band advanced EQ control, and custom as you like. Apply on all your audio sources.
Tune Like An Expert
ACPWorkbench Tuning Tool is an advanced tuning tool that you can adjust specific EQ for each channel and switch pins configuration.

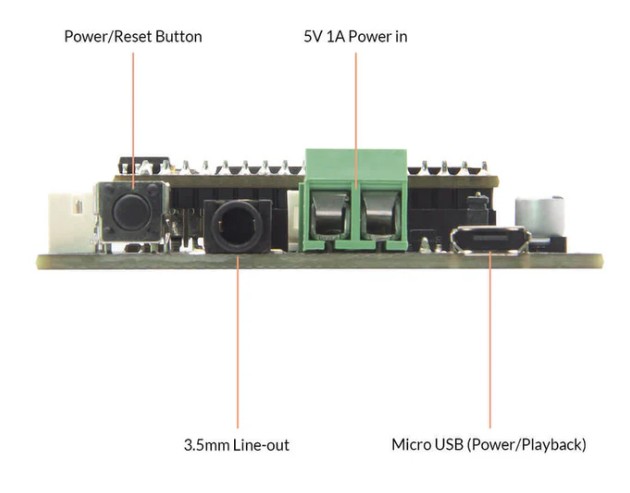

Plug and Play
- With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.
- This makes it incredibly easy and user-friendly for anyone to use.
Enhanced Up2Stream

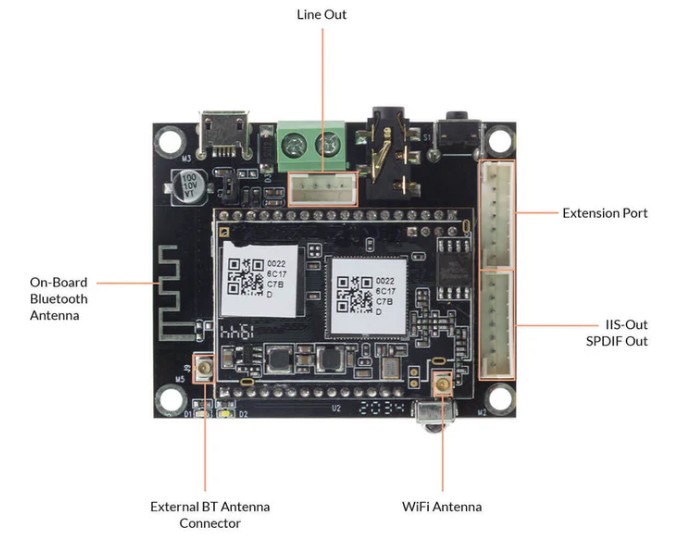

The Up2Stream Mini offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2Stream SPDIF Board, Up2Stream Button Board, Up2Stream ESS9023 DAC Board, Up2Stream IR Extension Board, and Up2Stream Volume Knob Board. You can find all the boards in Accessories.
Smart Home Assistant Integration
The Up2Stream Mini offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications.
Get API files below and check the cases in our forum.
| FILENAME | ACTION |
|---|---|
| Up2Stream_Mini_V3.0_Manual-en.pdf | Download |
