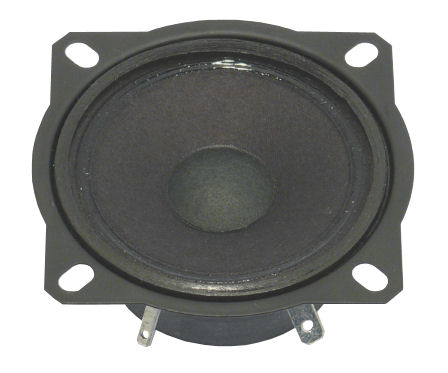

Visaton TW70, 70mm (2.5in / 2-1/2in) Paper Cone Tweeter, with 14mm Voice Coil #9002, 8ohm.
Cone tweeter with special basket for the high-frequency range above 5000 Hz. Balanced frequency response with brilliant highs and high power handling. Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Tweeter Type | Paper Cone Tweeter, with 14mm voice Coil #9002 |
| Cone / Dome Diameter | 70mm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 40 W |
| Frequency Response | 800 - 20000 Hz |
| Sensitivity | 90 dB |
| FILENAME | ACTION |
|---|---|
| TW70 SPEC SHEETS.pdf | Download |
