VM528
- VM528
- VOLT LOUDSPEAKERS

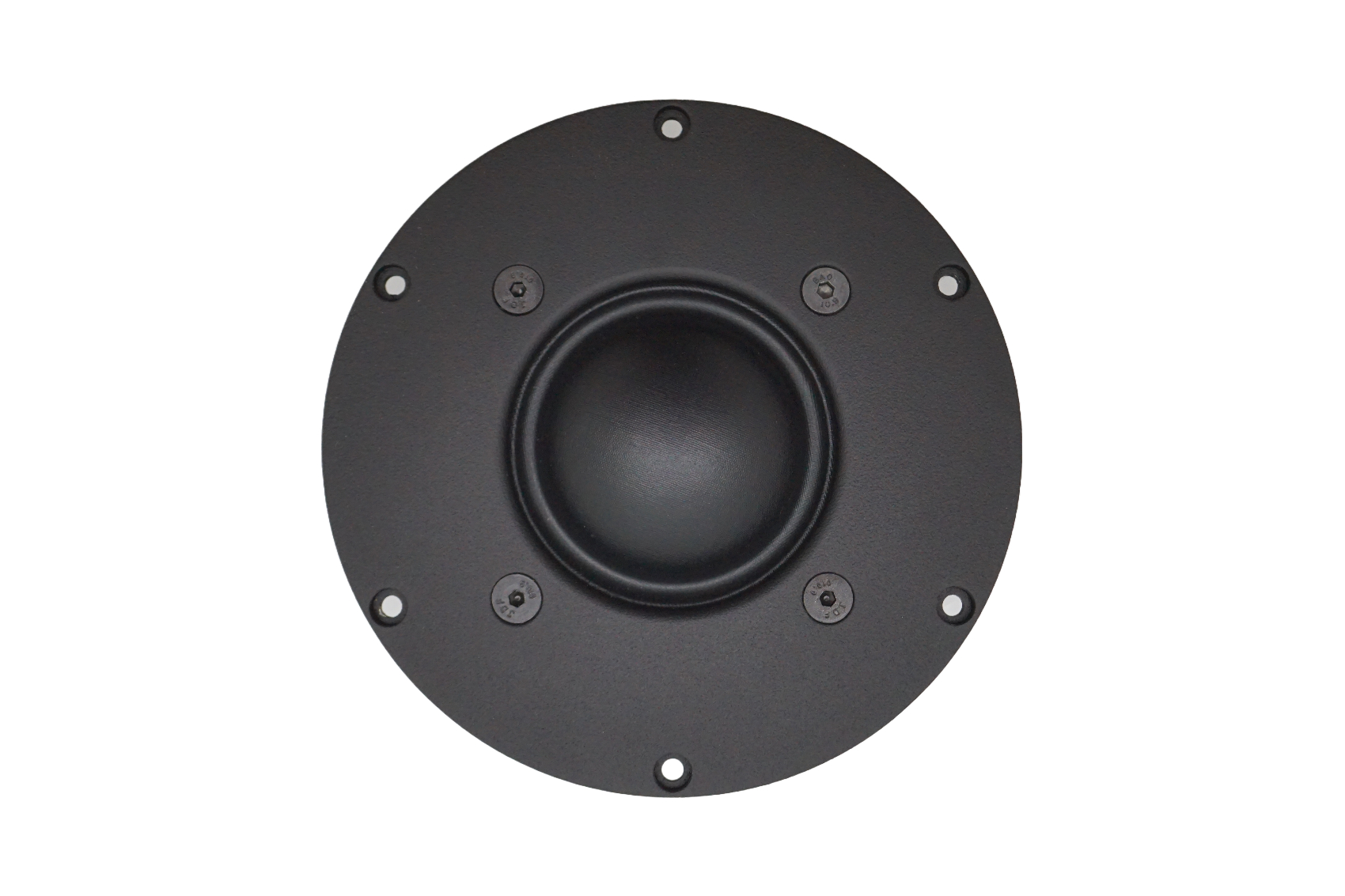

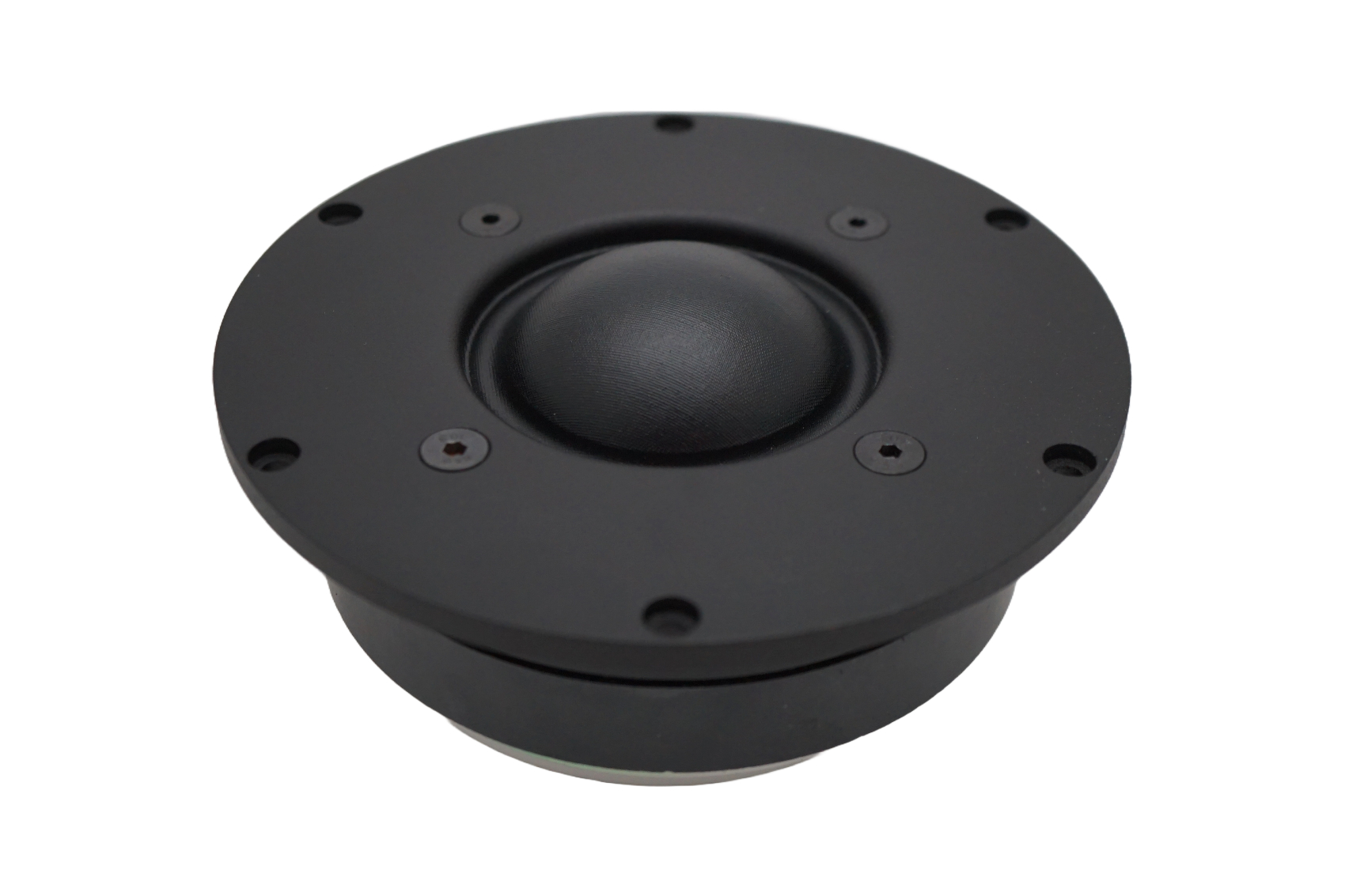

Volt Loudspeakers VM528, 52mm (2in) Textile Dome Midrange, 89db, 8ohm, 140mm Faceplate Front Mount
| Product Specifications | |
|---|---|
| Manufacturer | VOLT |
| Speaker Type | Textile Dome Midrange |
| Nominal Diameter | 5.2cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 75 W |
| Frequency Response | 500 - 5000 Hz |
| Sensitivity | 89 dB |
| Voice Coil Diameter | 52mm |
Designed for front mounting
Engineered for a smooth, extended response through the critical midband frequencies.
The VM528 uses a coated one-piece fabric 2" (52 mm) soft dome and surround. These are paired with a lightweight Kapton former and single-layer copper voice coil, delivering fast transient response with minimal coloration and exceptionally low distortion.

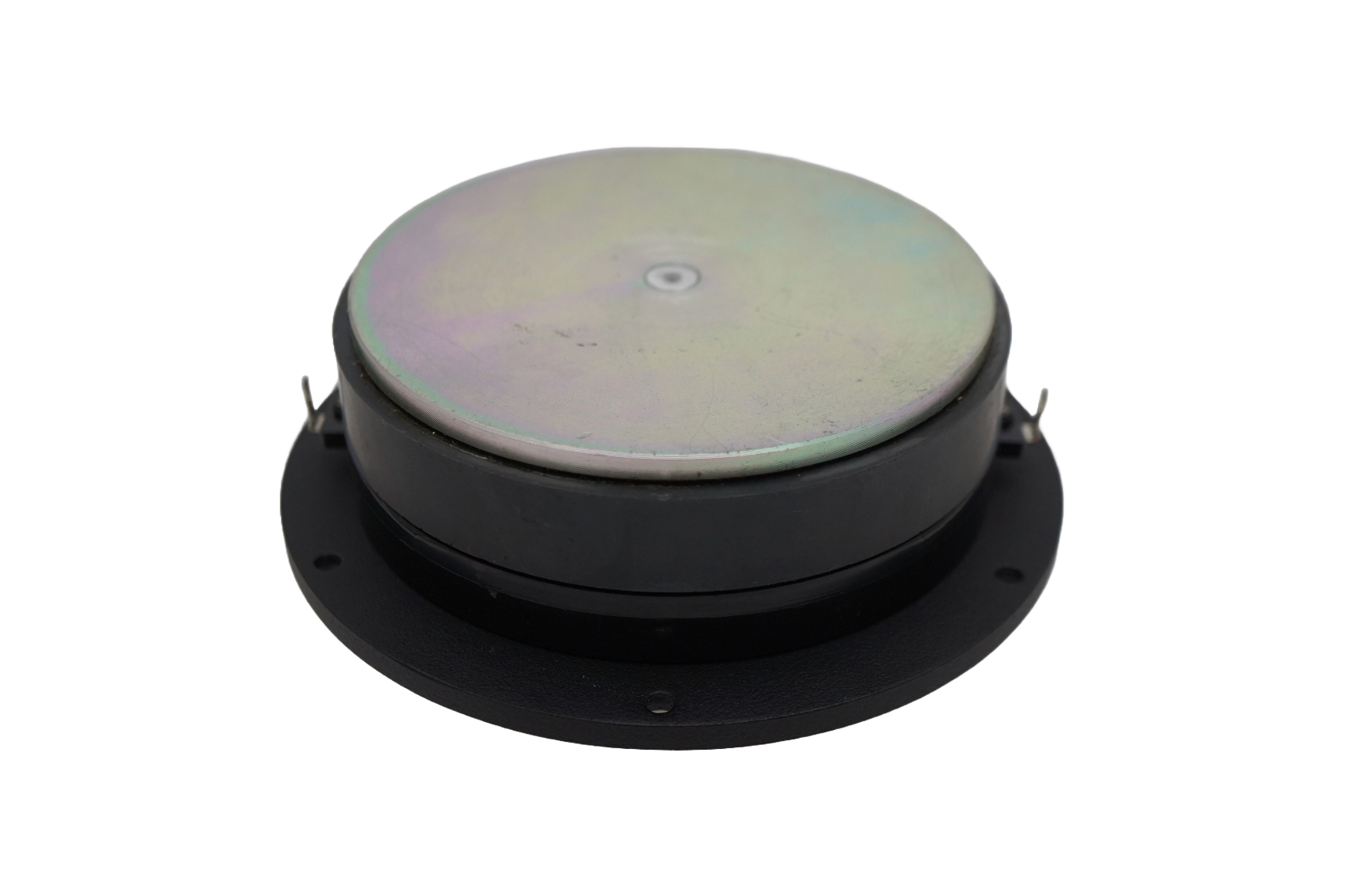

A precision FEA-designed magnet system provides high flux density and excellent thermal performance, helping the VM528 maintain power handling and efficiency under demanding conditions. The flat front-mounting plate is designed to control dispersion, giving the VM528 a wide, even radiation pattern that integrates naturally with surrounding drivers.

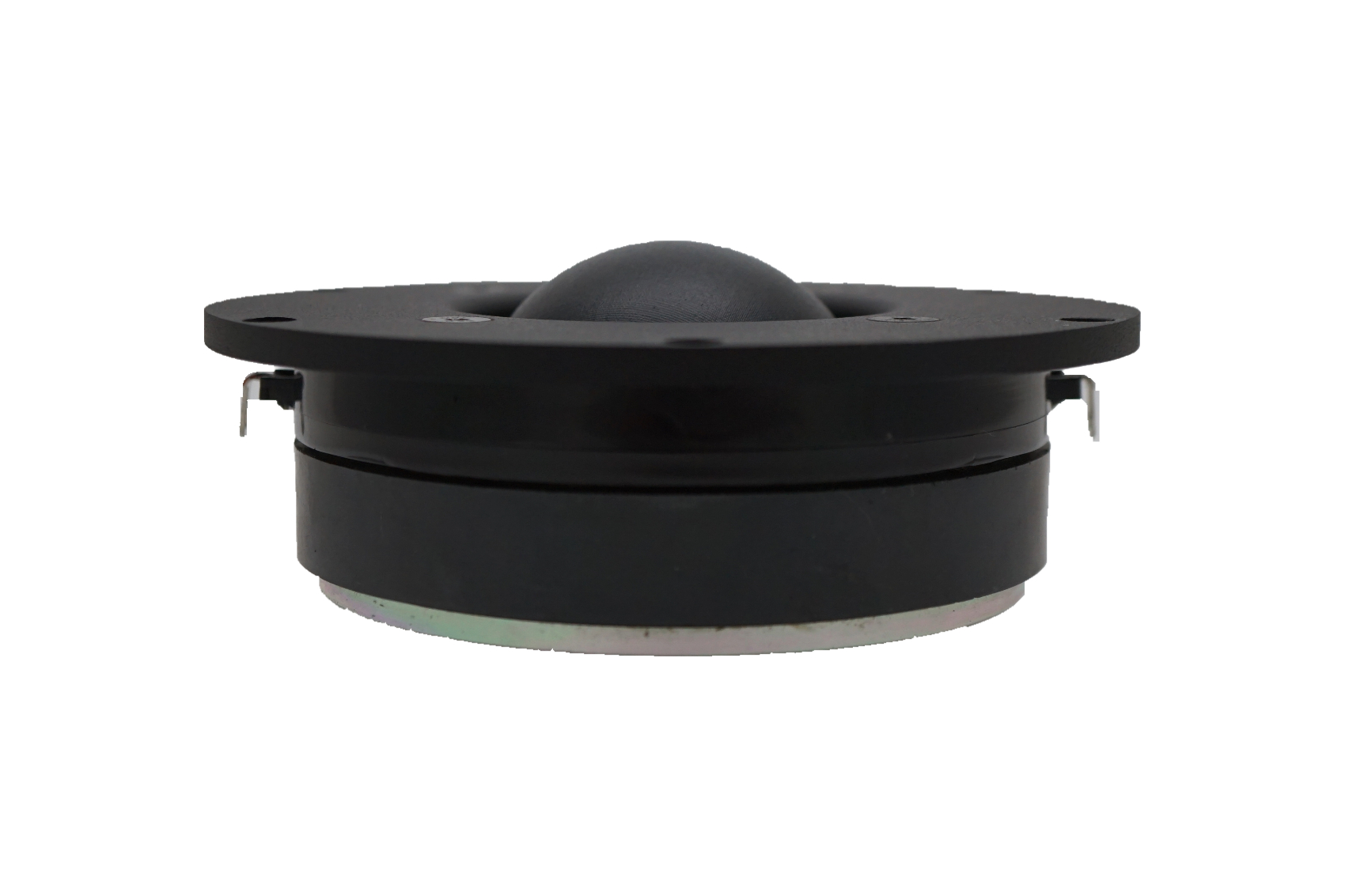

For ease of installation and service, the dome and coil are built onto a replaceable composite diaphragm ring that self-locates accurately, allowing straightforward field replacement. Standard 4.8 mm spade terminals accept either soldered connections or push-on receptacles.
VM528 (2″) Specifications
- Model Number: VM528
- Nominal Diameter (mm): 140
- Power Capacity (Watt AES): 75
- Frequency Range (Hz): 500-5000
- Nominal Impedance (Ohms): 8
- Voice Coil Diameter (mm): 52
- Voice Coil Height (mm): 6mm
- Voice Coil Layers: 1
- Magnet Gap Height (mm): 4
- Linear Excursion (XMax): ±1
- Maximum Excursion (mm): 2
- Volume Displaced (litres): 0.5
- Connection: Metal Push Terminals
- Chassis: Diecast Aluminium
