TW022WA02
- TW022WA02
- WAVECOR

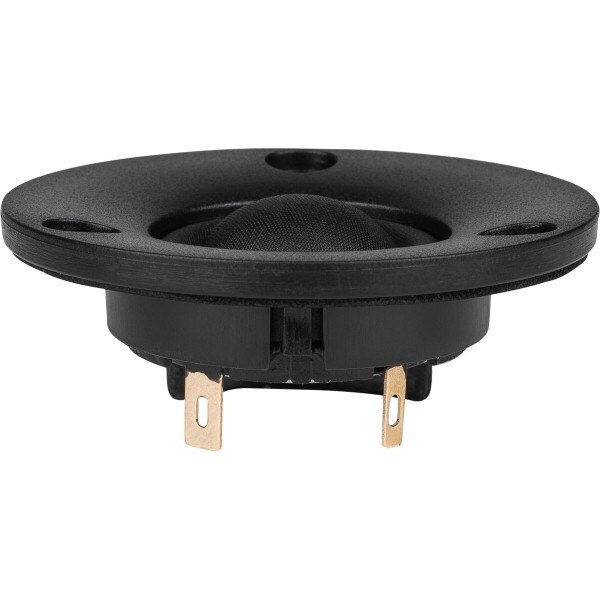

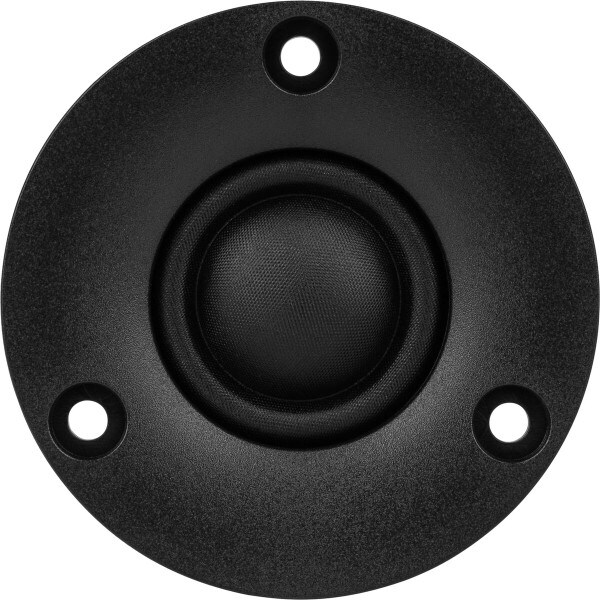

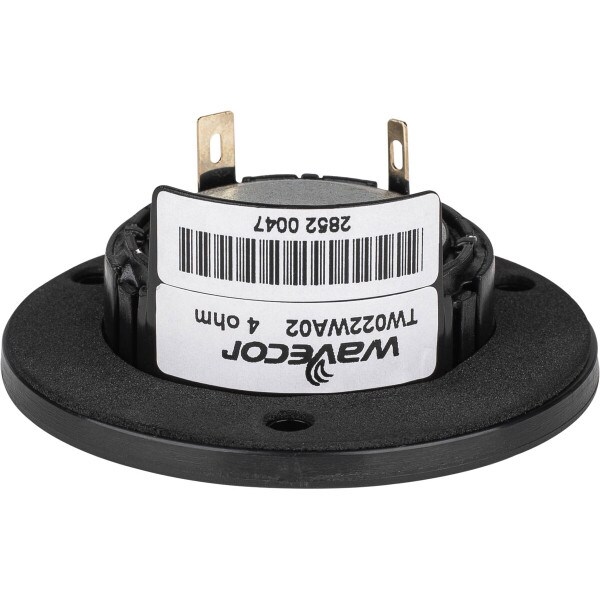

Wavecor TW022WA02, 22mm (0.875in / 7/8in) Textile Dome Neodymium Tweeter, 4ohm, 65mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Tweeter Type | Textile Dome Neodymium Tweeter |
| Cone / Dome Diameter | 22mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | |
| Frequency Range | 2500 - 40000 Hz |
| Sensitivity | 88 dB |
|
TW022WA02 is a compact 22 mm neodymium tweeter for applications, where small size is important, while still requiring the highest level of performance |
Innovation
In order to keep distortion and resonance frequency low the TW022WA02 is designed around a small external neodymium ring magnet to allow for a larger internal volume than that of traditional neodymium tweeters.
There is a version of TW022WA02 without face plate available for manufacturers, for building the unit directly into the cabinet baffle. The part number of this version is TW022WA01 and the electrical/acoustical specifications are identical to that of TW022WA02.
|
FEATURES |
 |
|
|
| FILENAME | ACTION |
|---|---|
| TW022WA01-02.pdf | Download |
