WF120BD05

4 left in stock

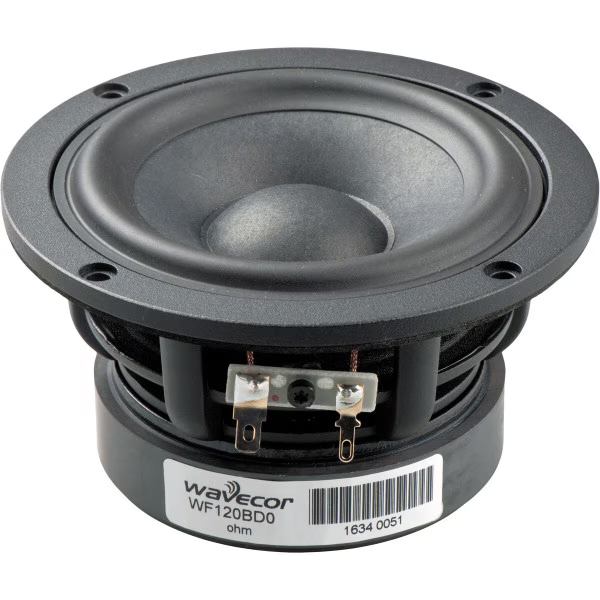

Wavecor WF120DB05, 120mm (4.5in /4-1/2in) Glass Fiber/Paper Cone Midbass, with 32mm Voice Coil, 4ohm.
CA$151.12Each

Wavecor WF120DB05, 120mm (4.5in /4-1/2in) Glass Fiber/Paper Cone Midbass, with 32mm Voice Coil, 4ohm.

Product Specifications
Manufacturer WAVECOR
Speaker Type Glass Fiber/Paper Cone Midbass
Nominal Diameter 12cm
Impedance 4 ohms
Power Handling (RMS) 60 W
Frequency Response 48 Hz
Sensitivity 87 dB
Voice Coil Diameter 32mm

The 4.75” transducers WF120BD05/WF120BD09 (4 ohm) and WF120BD06/WF120BD10 (8 ohm) were designed as high performance bass and midrange units for very compact monitors and high-end hi-fi speakers.
The only difference between WF120BD05 and WF120BD09 is the shape of the mounting flange of the frames. WF120BD06 and WF120BD10 differ in the same way.



FEATURES




  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Cone made of a new paper/glass fiber mix with improved consistency and stability
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 1.25” voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
FILENAME ACTION
WF120BD05_06_09_10.pdf Download
