WF152BD05
6 left in stock

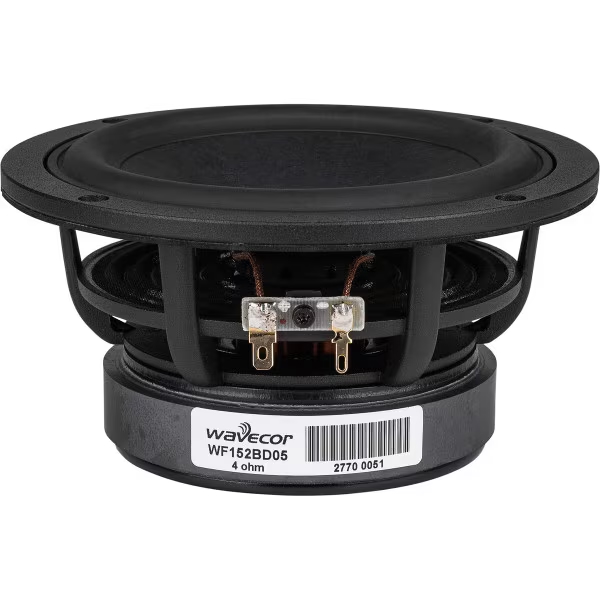

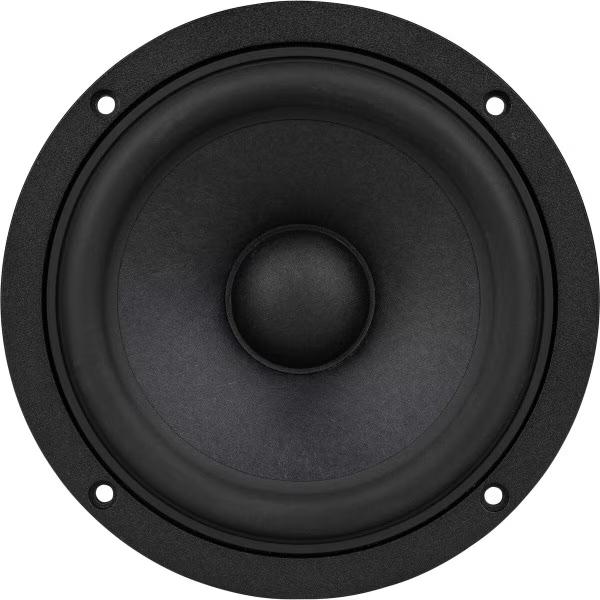

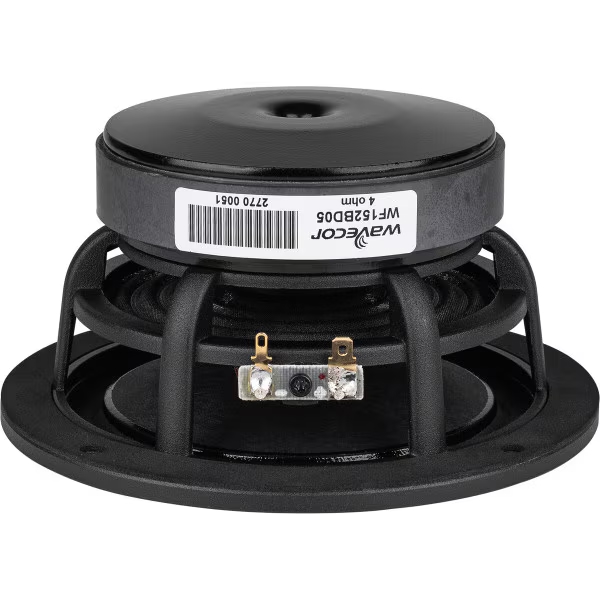

Wavecor WF152BD05, 152mm (5.5in / 5-1/2in) Glass Fiber/Paper Cone Midbass, with 32mm Voice Coil, 4ohm.
CA$175.22Each
- WF152BD05
- WAVECOR
Wavecor WF152BD05, 152mm (5.5in / 5-1/2in) Glass Fiber/Paper Cone Midbass, with 32mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Speaker Type | Glass Fiber/Paper Cone Midbass |
| Nominal Diameter | 15cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 70 W |
| Frequency Response | 50 Hz |
| Sensitivity | 90 dB |
| Voice Coil Diameter | 32mm |
The 6” transducers WF152BD05 (round, 4 ohm), WF152BD07 (truncated, 4 ohm), WF152BD06 (round, 8 ohm), and WF152BD08 (truncated, 8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.
Features
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Cone made of a new paper/glass fiber mix with improved consistency and stability
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 1.25” voice coil diameter for better control and power handling
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
| FILENAME | ACTION |
|---|---|
| WF152BD05_06.pdf | Download |
