WF182BD09

4 left in stock

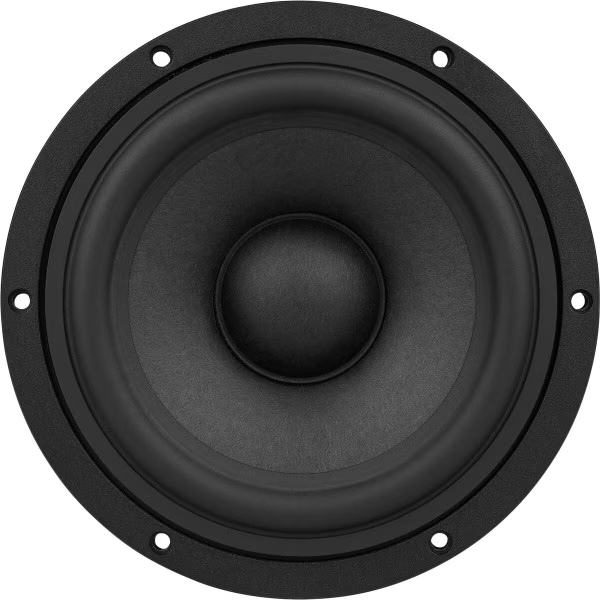

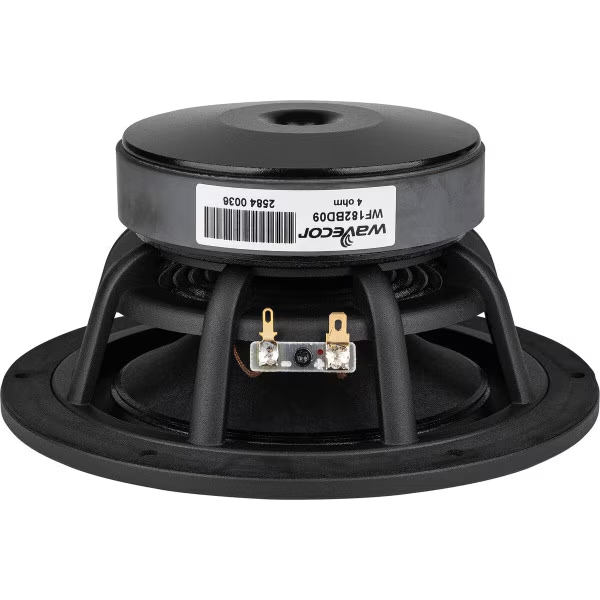

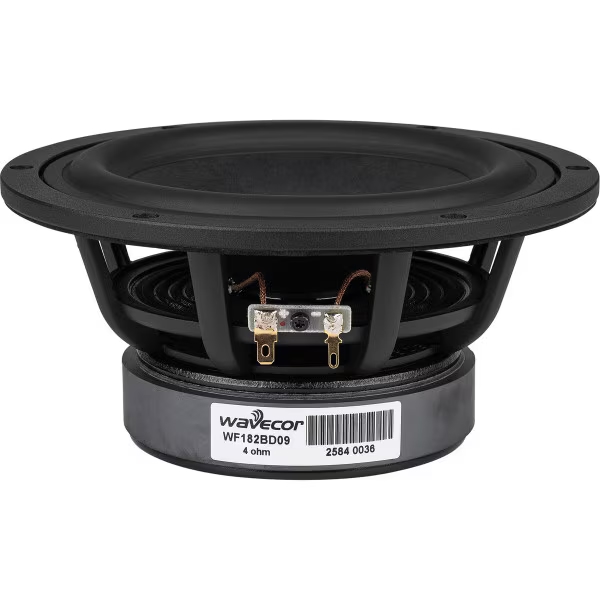

Wavecor WF182BD09, 182mm (7in) Glass Fiber/Paper Cone Woofer, with 39mm Voice Coil, 4ohm.
CA$218.74Each

Wavecor WF182BD09, 182mm (7in) Glass Fiber/Paper Cone Woofer, with 39mm Voice Coil, 4ohm.

Product Specifications
Manufacturer WAVECOR
Speaker Type Glass Fiber/Paper Cone Woofer
Nominal Diameter 18cm
Impedance 4 ohms
Power Handling (RMS) - W
Frequency Response 2500 Hz
Sensitivity 88.5 dB
Voice Coil Diameter 39mm

The 7” transducers WF182BD09 and WF182BD11 (both 4 ohm) and WF182BD10 and WF182BD12 (both 8 ohm) were designed as high performance bass and midrange units for  monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange.

Features

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Cone made of a new paper/glass fiber mix with improved consistency and stability
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 39 mm voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
FILENAME ACTION
WF182BD09_10_11_12.pdf Download
