PCX12-8
- PCX12-8
- DAYTON AUDIO

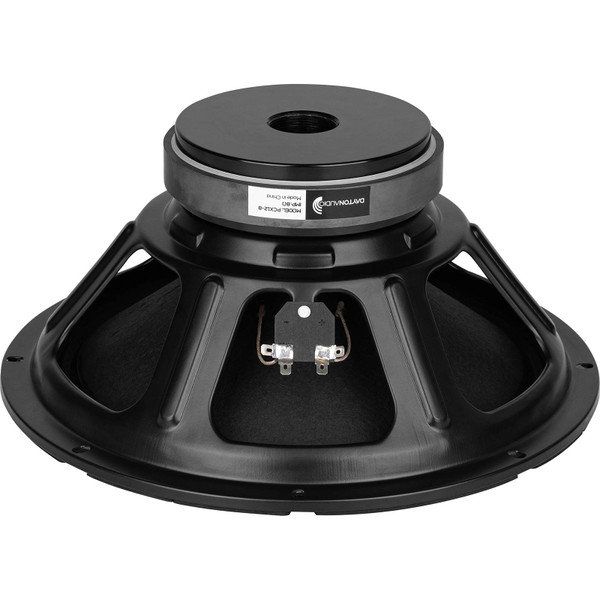

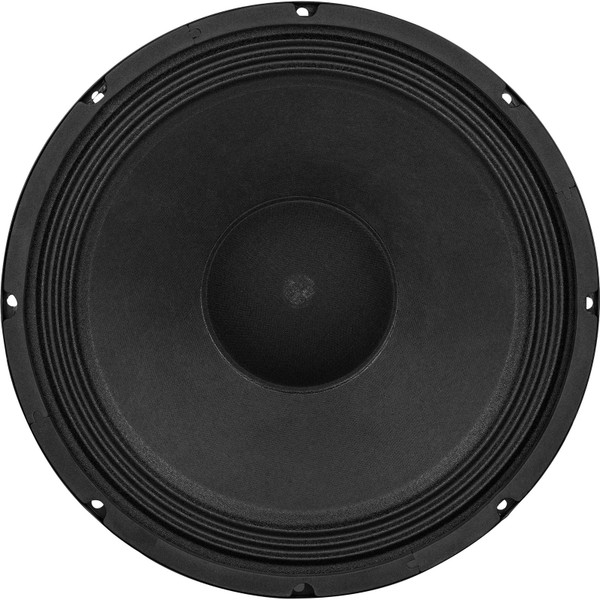

Dayton Audio PCX12-8, 310mm (12in) Pro Coaxial Woofer, 8 ohm. (compression driver not included)
The PCX12-8 is highly versatile and can be used in car audio and home theater, while also performing as expected in PA and live audio configurations thanks to its coaxial design. The flat response up to the crossover point makes it easy to pair with your favorite compression driver for reliable and predictable performance out in the field.
Key Features
1-3/8"-18 TPI mount is compatible with many popular horn drivers
Perfect form factor for creating ultra compact monitors
Point source design delivers equal off axis response in all directions for great dispersion
Screened dustcap provides protection for your horn driver
With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise
Key Specs:
Nominal Diameter: 12"
Power Handling (RMS): 200 Watts
Power Handling (MAX): 400 Watts
Impedance (without CD): 8Ω
Frequency Response (without CD): 50Hz - 5KHz
Sensitivity: 95.5 dB 2.83V/1m
Voice Coil Diameter: 2"
Maximum Linear Excursion: 2mm
| NOM DU FICHIER | ACTION |
|---|---|
| pcx128.pdf | Télécharger |
