SS8-22
- SS8-22
- DAYTON AUDIO
Dayton Audio SS8-22 8" Signature Series DVC Subwoofer 2 Ohm per Coil.
Key Features
- Massive triple-stacked magnet assembly provides motor strength and symmetry at high excursion
- Aluminum shorting sleeve, ring, and pole cap linearize inductance and reduce distortion
- Dual spider suspension with stitched tinsel leads ensures stability, durability, and precise motion
- 2.5" 4-layer copper voice coil on a vented aluminum former for excellent power handling and cooling
- Rigid anodized aluminum cone with indexed edge for pistonic accuracy and reduced resonance
- Extensive venting through cone, pole piece, spider, and gap minimizes compression during long sessions
The Dayton Audio SS8-22 Signature Series 8" Subwoofer delivers powerful, controlled bass from compact enclosures, making it a versatile choice for small-space systems. Rated for 500 watts RMS, the SS8-22 combines robust output with engineering refinements that keep distortion low and reliability high. Whether used in DSP-assisted sealed enclosures for tight, accurate performance, in compact vented/passive radiator designs for extended low end, or integrated into a car audio system where space efficiency is critical, the SS8-22 delivers bass that feels much larger than its size.
Key Specs:
- Nominal Diameter: 8"
- Power Handling (RMS): 500W
- Power Handling (MAX): 1,000W
- Impedance: 2Ω + 2Ω (Dual voice coils)
- Frequency Response: 20- 500Hz
- Sensitivity: 84.9 dB 2.83V/1m
- Voice Coil Diameter: 2.5"
- Maximum Linear Excursion: ±17 mm
Rigid Cone, Maximum Control

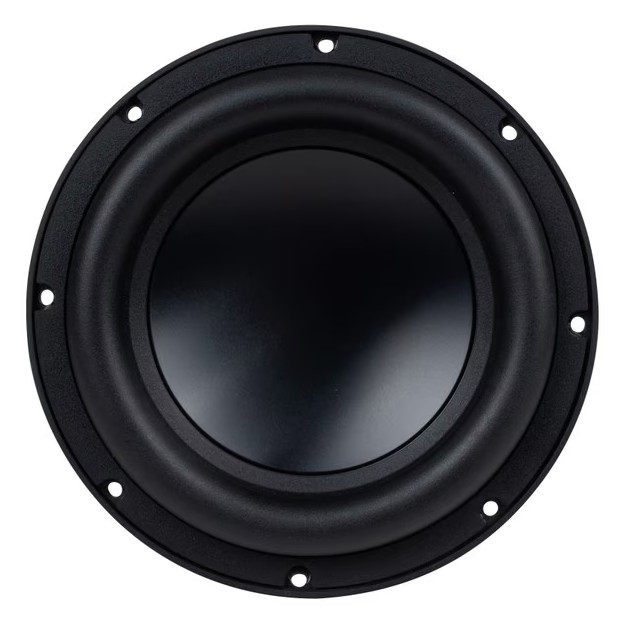

A thick anodized aluminum cone gives the SS8-22 the rigidity needed to maintain pistonic accuracy even under extreme excursion. Its indexed edge reinforces the transition between cone and surround, reducing unwanted resonances, while the high-roll butyl rubber surround supports deep excursion without sacrificing cone area. This combination ensures controlled, accurate bass reproduction that remains distortion-free at high output levels.
2.5" Voice Coil with Advanced Cooling
The SS8-22’s 2.5" diameter, 4-layer copper voice coil is wound on a vented aluminum former for excellent thermal performance. The multi-layer coil increases motor force and control, while the aluminum former acts as a heat sink to pull heat away from the windings. Extensive venting through the spider, pole piece, subcone, and coil gap promotes airflow and keeps the driver cool, minimizing compression even during demanding playback.
Optimized Motor for Low Distortion

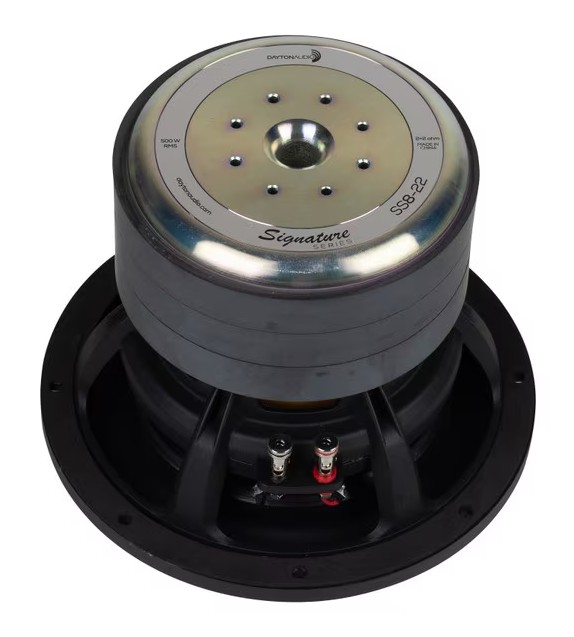

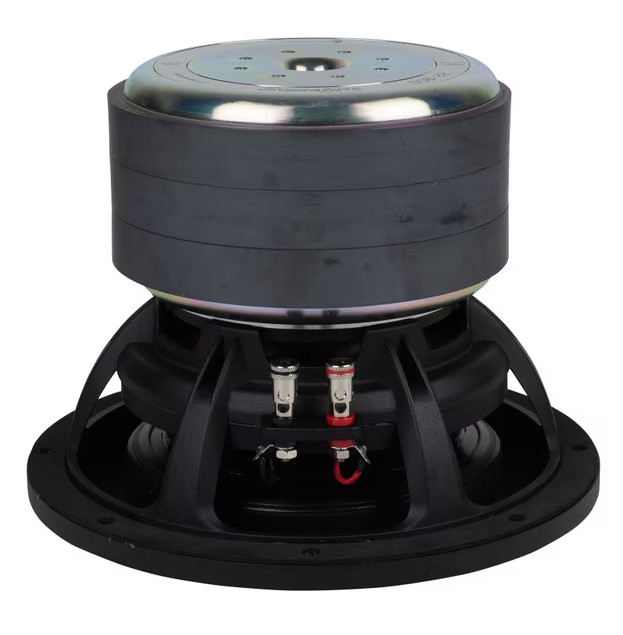

A triple-stacked, FEA-optimized magnet assembly drives the SS8-22, creating a strong and symmetrical magnetic field that ensures identical forward and backward cone travel. This symmetry minimizes distortion, while precision-machined plates with sculpted edges maximize magnetic transfer through the gap. An aluminum shorting sleeve, pole cap, and top plate ring keep inductance linear throughout the stroke, reducing non-linearities and enhancing clean response into the midbass region.
Consistent Performance at High Excursion

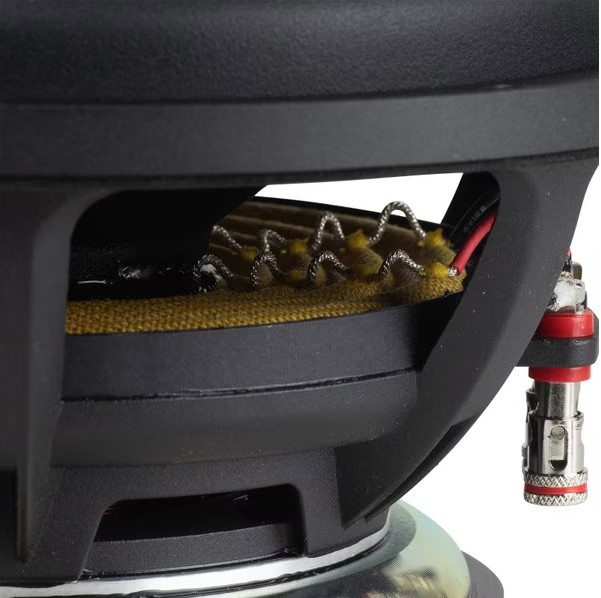

To maintain stability and eliminate rocking during high excursion, the SS8-22 uses a dual-spider suspension system. The wide spacing between spiders ensures accurate coil alignment, while stitched tinsel leads integrated into the top spider prevent fatigue and noise. This robust suspension design ensures long-term durability and consistent pistonic motion under heavy loads.
mall in size, huge in performance — bass that defies expectations
Compact yet powerful, the Dayton Audio SS8-22 Signature Series 8" Subwoofer is designed for systems where space is limited but high-performance bass is required. From shoebox-sized home theater subs to custom car audio installs, the SS8-22 delivers tight, controlled low end with authority well beyond its size class. As part of Dayton Audio’s Signature Series, it blends durability, precision, and output in a compact driver built for serious performance.
Note: The SS8-22 subwoofer is a dual voice coil driver with a 2-ohm impedance per coil. All parameters are measured with the voice coil wires in series, resulting in a single 4-ohm load.
