  • A25-10
  • GRS

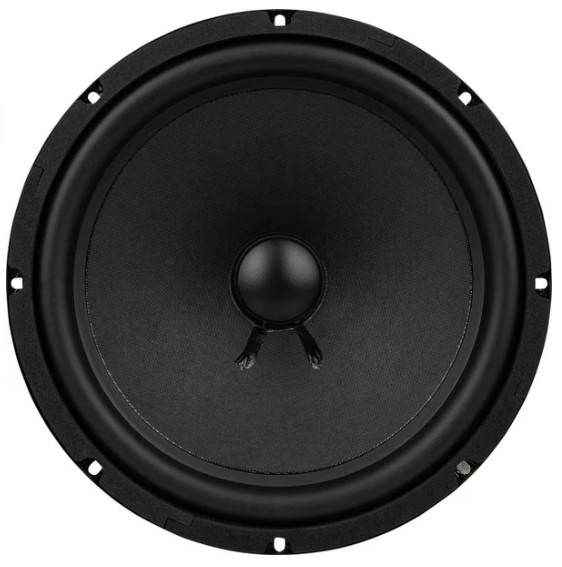

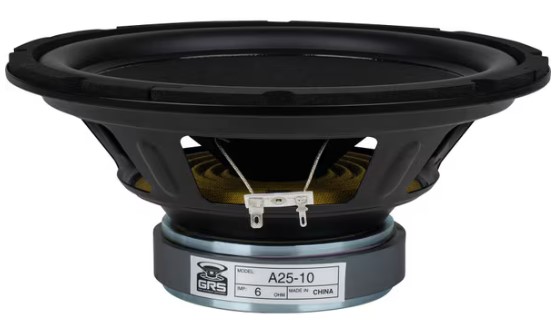

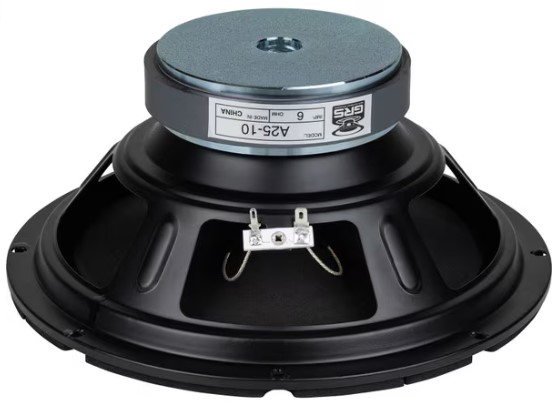

GRS A25-10 Replacement, 254mm (10in) Woofer for Dynaco A25 6 Ohm.

The Dynaco A-25 was once celebrated for its natural and distortion-free sound reproduction; however, the passage of time has taken its toll on the original components, leaving a shadow of their former glory. GRS has created a replacement woofer that captures the essence of the original design, with the reliability you'd expect of a modern woofer! This 10-inch drop-in replacement was created for those who want to rediscover their favorite music as they once heard it.

Key Features
  • Meticulously crafted replacement woofer for the Dynaco A-25 speaker
  • Lighter cone design for improved transient response and accurate music reproduction
  • Aging considerations addressed with a softer suspension and cloth dust cap
  • Fully compatible with the Dynaco A25's aperiodic bass reflex port
  • Underdamped woofer design for precise performance with the original A25 cabinet

Retro Sound, Modern Performance - Reignite your Dynaco A-25 Experience

Rediscover the legacy of the Dynaco A-25 speaker with our meticulously crafted replacement woofer. The Dynaco A-25, known for its natural, distortion-free sound reproduction, owed much of its performance to its unique woofer design. We've strived to bring that sound back to the present with our replacement woofer, ensuring that you get to relive the magic of the Dynaco A-25 once more.


Aging Considerations and Modern Improvements

We've made sure to consider the aging issues of the original, integrating a softer suspension to provide more travel room and a cloth dust cap for an authentic touch. Our replacement woofer is not just a part; it's a tribute to the revered Dynaco A-25's legacy, designed to bring its historic sound into the present.

Lighter Cone, Higher Performance

Our woofer boasts a light cone, that promises an improved transient response. This means that rapid changes in the music are accurately reproduced, giving you an unmatched audio experience, just as the original.

A Well-Designed Drop-in

We've taken care to ensure the woofer is fully compatible with the A25's aperiodic bass reflex port. This principal allowed the speaker to deliver deep bass from a relatively small enclosure beyond what was possible at the time. To do this we've reduced Re and Fs to underdamp the woofer ensuring exact performance when interacting with the air volume into the original A25 cabinet.

Specifications:

  • Nominal Diameter: 10"
  • Power Handling: 70W
  • Impedance: 6Ω
  • Frequency Response: 50Hz - 4500Hz
  • Sensitivity: 90.4dB 2.83V/1m
  • Voice Coil Diameter: 1.5"
  • Maximum Linear Excursion: 4.5mm
NOM DU FICHIER ACTION
A25_10.pdf Télécharger
