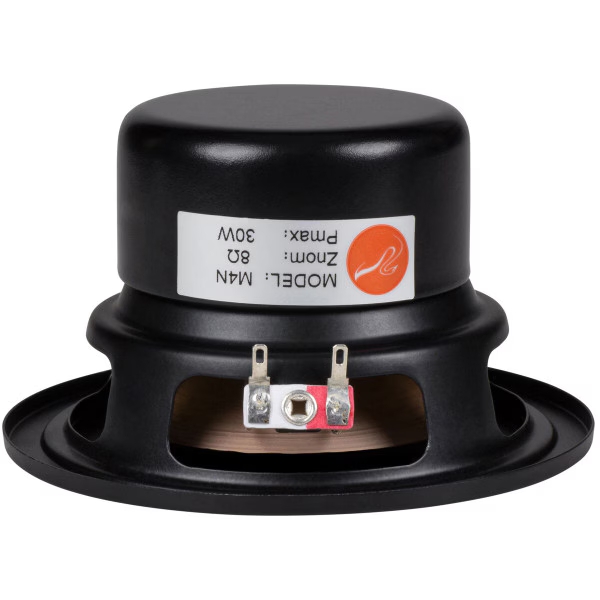

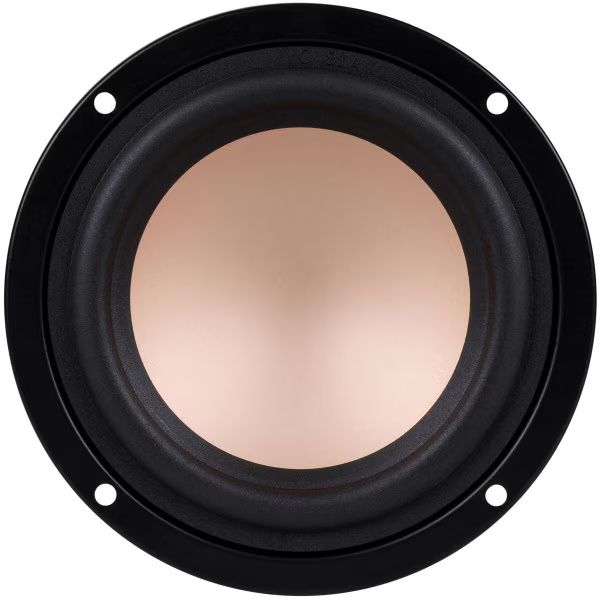

Hi-Vi Research M4N, 116mm (4.5in / 4-1/2in) Aluminium Magnesium Cone Fullrange, with 20mm (0.75in / 3/4in) Voice Coil, 8ohm.
Product Specifications | |
---|---|
Manufacturer | HI-VI RESEARCH |
Speaker Type | Aluminium Magnesium Cone Fullrange |
Nominal Diameter | 12cm |
Impedance | 8 ohms |
Power Handling (RMS) | 25 W |
Frequency Response | 70 - 18000 Hz |
Sensitivity | 82 dB |
Voice Coil Diameter | 20mm |
A shielded magnet structure allows the HiVi M4N 4" full-range speaker to be incorporated easily into audio/video applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (70 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. Stamped steel frame, magnesium/aluminum ally cone, optimized magnetic circuit, and high temperature CCAW voice coil.
Key Features
NOM DU FICHIER | ACTION |
---|---|
m4n.pdf | Télécharger |
