ZA3
Reste 4 en stock
Fosi Audio ZA3, Stereo Integrated Amplifier 2x 155W with Sub Out, TPA3255.
199,99 $CAChq
- ZA3
- FOSI AUDIO
Fosi Audio ZA3, Stereo Integrated Amplifier 2x 155W with Sub Out, TPA3255.
Descriptions
- Dual-Mode Innovation: This new generation mini amplifier offers both stereo and mono modes, adapts flexibly to your diverse needs, allowing seamless mode switching. In stereo mode, it delivers a robust output of up to 180W, while in mono mode, the power soars to a maximum of 235W. Pair two ZA3 units in mono configuration to create a powerful audio system, significantly enhancing your listening experience.
- Richer Connectivity: Debut amplifier with balanced input and trigger in, the ZA3 features a balanced combo audio signal input connector supporting both XLR and 1/4" TRS plugs. This design minimizes interference and reduces noise floor. The 12V trigger-in connector enables synchronization with other devices, streamlining the process of turning on/off without individual operations.

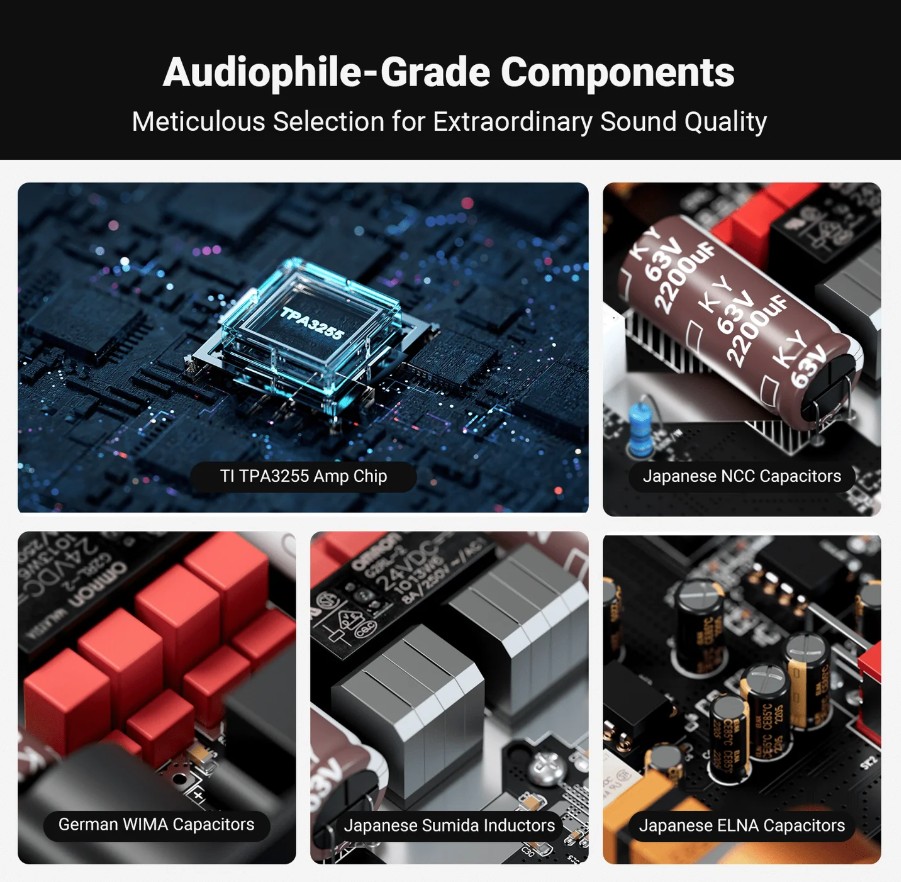

- Audiophile-Grade Components: The ZA3 features the TPA3255 high-end Class-D amp chip and utilizes premium Japanese NCC, ELNA, and German WIMA capacitors, and Japanese Sumida inductors for exceptional audio quality. With a SINAD rating of up to 89dB, an SNR of up to 106dB, and a low noise floor of only 150μV, it delivers exceptional clarity and low distortion.
- Advanced Heat Dissipation: Based on V3's groundbreaking heat dissipation design, we upgraded ZA3's cooling system by featuring a larger chassis, moving vents to the sides, and adding dust covers to achieve better ventilation for a sustained and stable high power output.
- Enhanced Scalable Fun: Personalize your audio experience with the op-amp rolling feature! The ZA3 stocks five swappable op-amps for left and right channel outputs, balanced input, and subwoofer output. Experiment with compatible DIP8 dual op-amps such as Sparkos SS3602, MUSES02, OPA2604, OPA2134PA, OP249, AD827, RM4558, LM4562, LME49720HA, etc. to fine-tune your sound to perfection.
Specifications
- Chip Set: Texas Instruments TPA3255
- Output Power:
With 48V/5A PSU Stereo; 155Wx2 @4Ω; Mono: 235Wx1 @4Ω - Terminating Impedance: 2-8Ω
- Input Mode: RCA, XLR, 1/4" TRS
- Output Mode: Speaker Output (supports banana plug or bare wire connection), Active Subwoofer Output
- Frequency Range: 20Hz - 20KHz(±0.1dB)
- SINAD: 89dB
- THD: ＜0.006%
- SNR: ≥106dB
- Dynamic Range: ≥106dB
- Device Dimension: 15.49 x 18.39 x 5.08 cm; 1.78 Kilograms
- DC Input Range: 24-48V
- Power Supply: 48V/5A

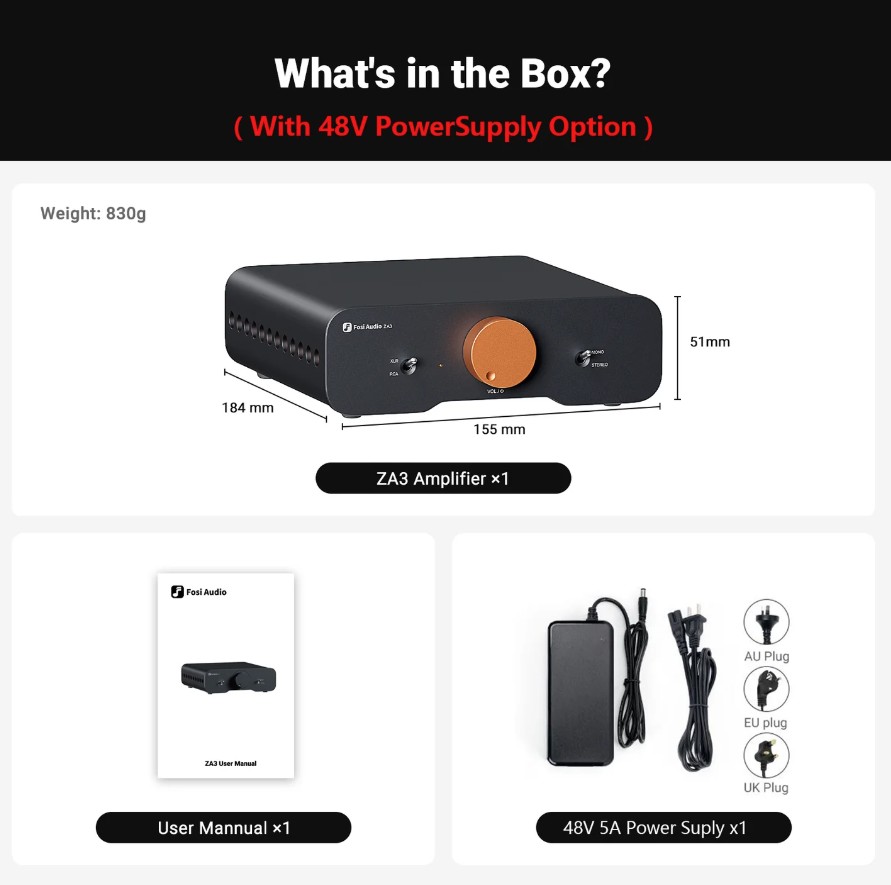

What‘s in the box？
- ZA3 Power Amplifier x 1
- 48V/5A Power Adapter x 1
- User’s Manual x 1
| NOM DU FICHIER | ACTION |
|---|---|
| ZA3.pdf | Télécharger |
