ZD3
Reste 5 en stock
Fosi Audio ZD3, Fully Balanced Desktop DAC, USB, HDMI ARC, Optical, Coax, Bluetooth.
259,99 $CAChq
- ZD3
- FOSI AUDIO
Fosi Audio ZD3, Fully Balanced Desktop DAC, USB, HDMI ARC, Optical, Coax, Bluetooth.
Descriptions
- Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound.
- Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

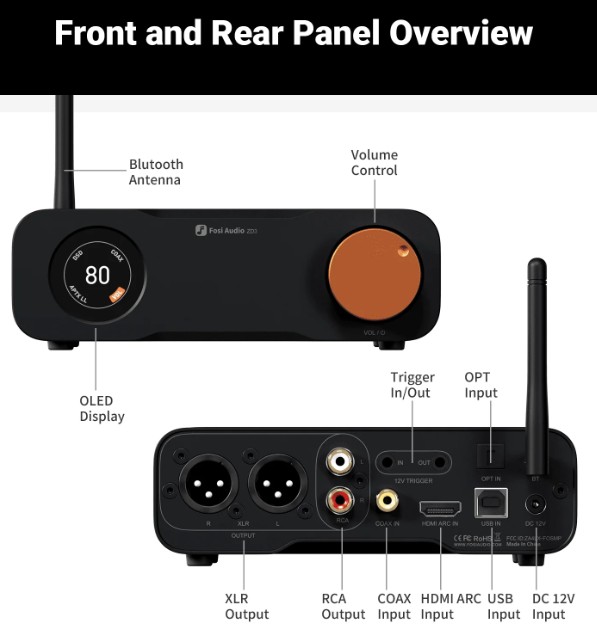

- Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios.
- Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.
- Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.
When the ZD3 is used with an LG TV, a bug in the LG TV system may cause issues with the HDMI-CEC function. Specifically, after turning off the TV with the power button or remote control, both the TV and ZD3 may automatically power back on after a short time. If you are using an LG TV, we recommend disabling the HDMI-CEC function. We are working hard to resolve this issue and sincerely apologize for any inconvenience caused. Thank you for your understanding.
Specifications
- Chip Set: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720
- Maximum Sampling Rate:
USB: PCM 32bit/768kHz; DSD512
OPT/COAX: PCM 24bit/192kHz
Bluetooth: PCM 24bit/48kHz - Output Level:
XLR: 5Vrms RCA: 2.5Vrms - Input Mode:USB, HDMI (ARC), Coaxial, Optical, Bluetooth
- Output Mode: XLR, RCA
- SINAD: 126dB
- THD: ≥120dB
- THD+N: <0.00008%
- Dynamic Range: ≥123dB
- Noise Floor: ≤2μV
- Bluetooth Version: 5.0
- Bluetooth Connection Distance: ≥13m
- Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC
- Power Supply: DC 12V 1.5A
- USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual)Mac OS X, Linux (No driver required)

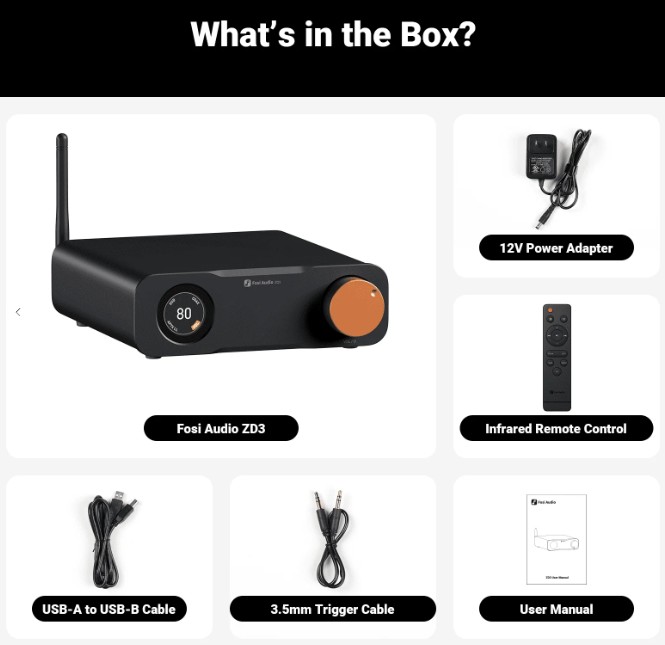

What‘s in the box？
- DAC ZD3 *1
- 12V Power Adapter *1
- Infrared Remote Control *1
- USB-A to USB-B Cable *1
- 3.5mm Trigger Cable *1
- USER MANUAL *1
| NOM DU FICHIER | ACTION |
|---|---|
| Fosi Audio ZD3.pdf | Télécharger |
