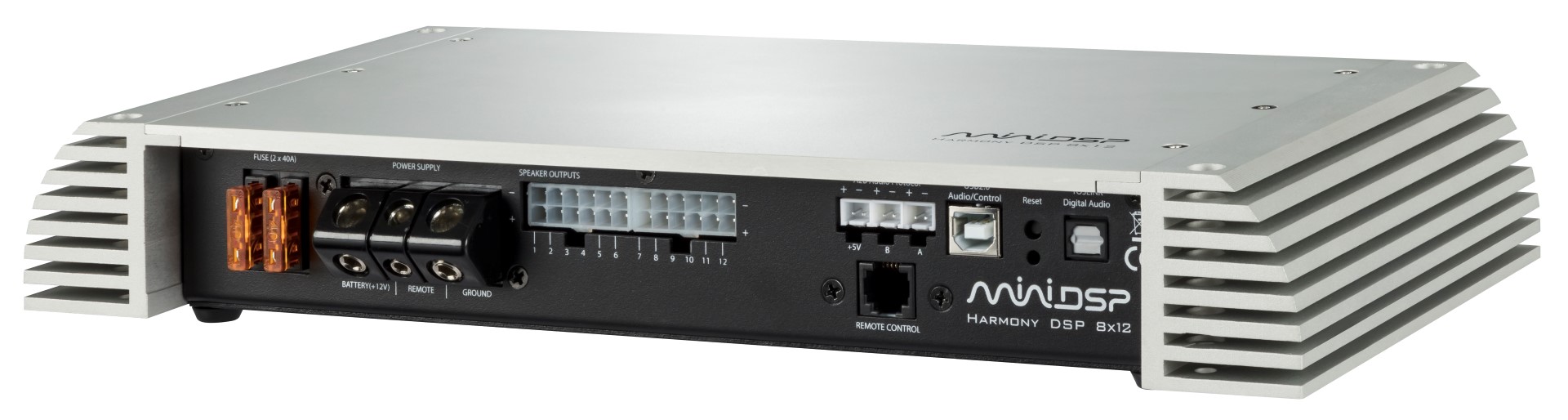

miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.
Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.
In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.
Features
400MHz 32bit Sharc Floating point processor
Dirac Live technology helps tune your cabin environment
All Digital amplifier
USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
Windows/Mac compatible GUI
Remote control or preset/master & sub volume control
What's in the Box?
1 x Harmony 8x12 Car Amplifier
1 x Dirac Live license
2 x Speaker wiring harness
1 x 1m USB cable
1 x Control GUI plugin provided automatically under UserDownloads section on purchase

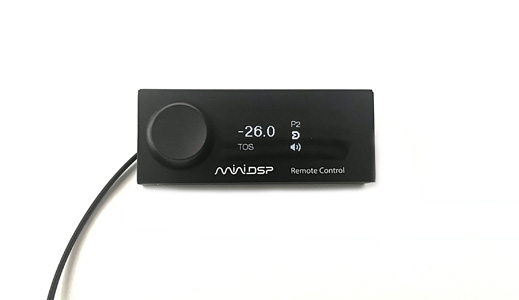

1 x 5m remote cable + OLED Remote control module
NOTE: The UMIK-1/2 are measurement microphones approved by Dirac Research. Knowing the major effect a wrong calibration/measurement would have on the final results of Dirac Live tuning, we strongly recommend that you select a UMIK-1/2 microphone together with your platform for a plug&play experience leading to best results. Any issues related to 3rd party microphones such as ASIO/USB audio driver incompatibility/Latency problems or incorrect calibration process will not be under our support structure by our support team.
