MR13TX-4
Reste 4 en stock

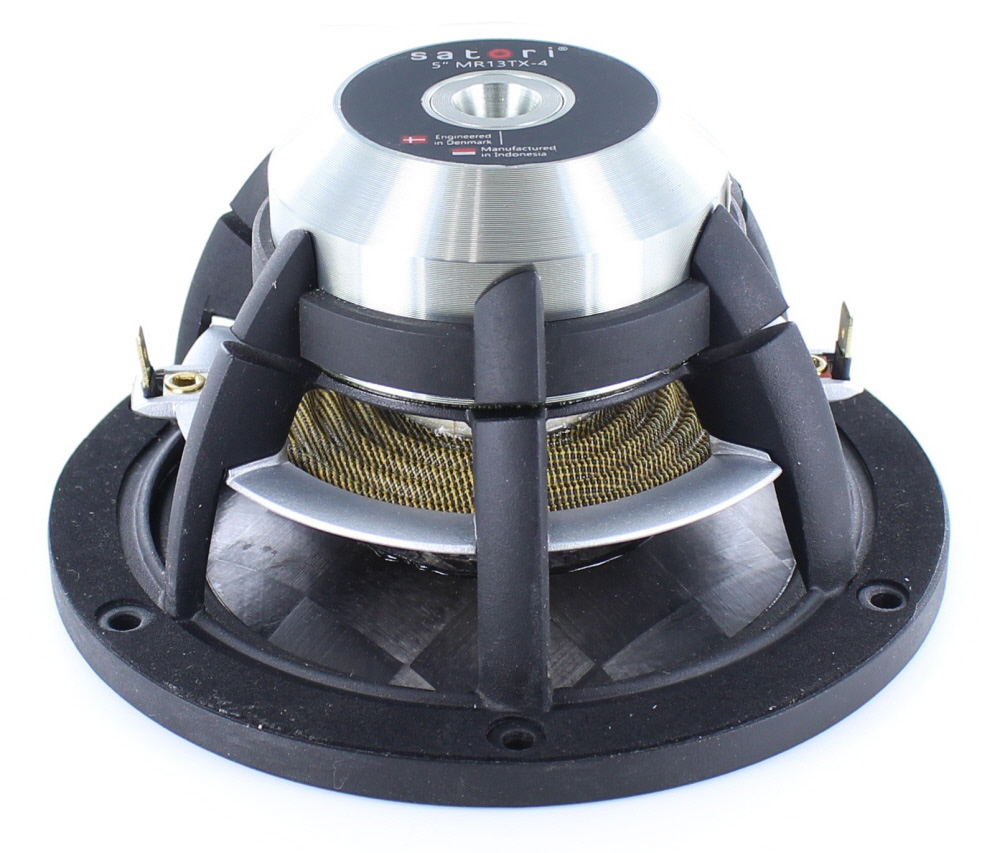

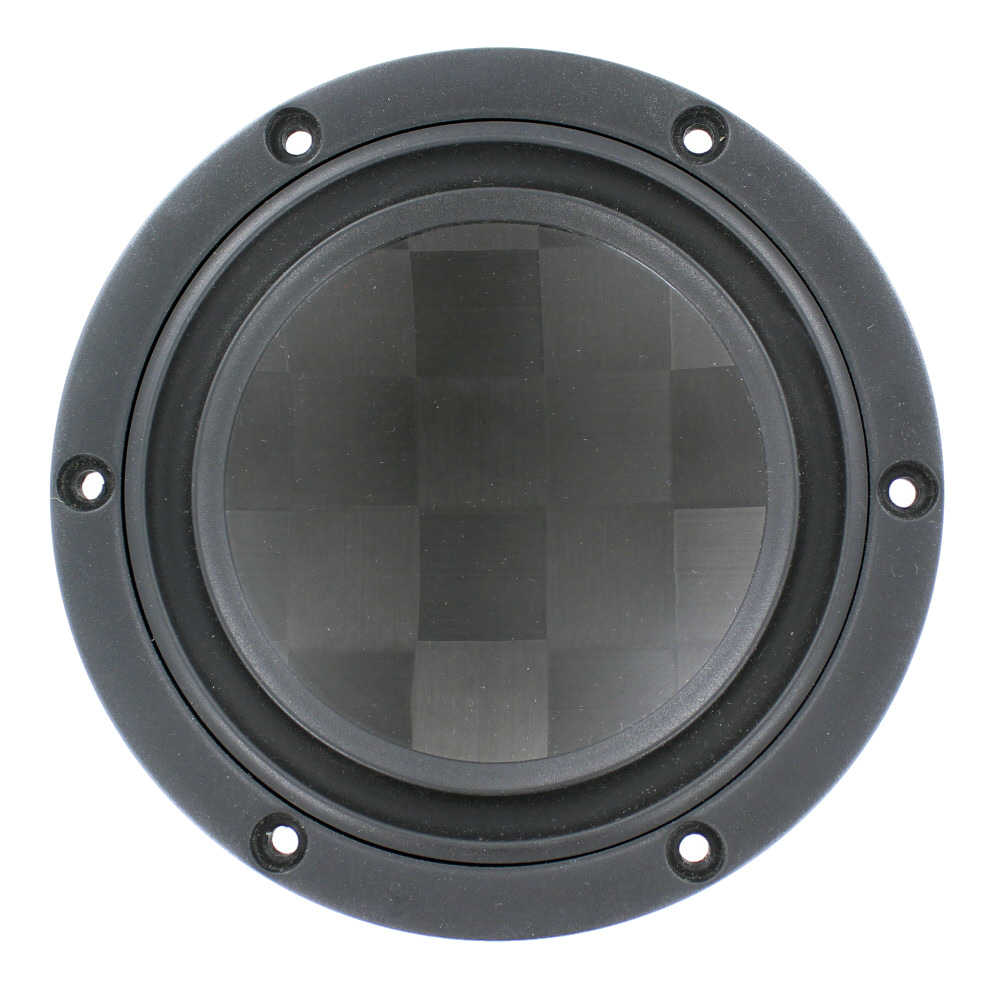

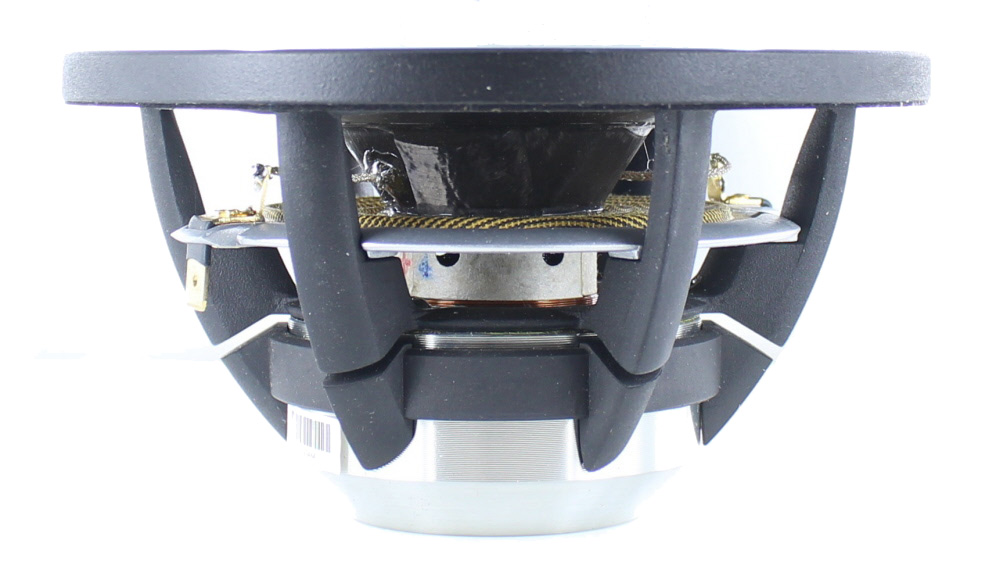

SB ACOUSTICS SATORI MR13TX-4, 132mm (5in) TEXTREME CONE NEODYMIUM MIDRANGE 4 OHM
480,98 $CAChq
- MR13TX-4
- SB ACOUSTICS
SB ACOUSTICS SATORI MR13TX-4, 132mm (5in) TEXTREME CONE NEODYMIUM MIDRANGE 4 OHM
| Product Specifications | |
|---|---|
| Manufacturer | SB ACOUSTICS |
| Speaker Type | Textreme Cone Neodymium Midrange |
| Nominal Diameter | 13cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 30 W |
| Resonance Frequency | 44 - 10000 Hz |
| Sensitivity | 90 dB |
| Voice Coil Diameter | 31mm |
SB ACOUSTICS SATORI MR13TX-4, 13cm TEXTREME CONE NEODYMIUM MIDRANGE 4OHM
Features
- Advanced TeXtreme® cone
- Vented aerodynamic cast aluminum chassis
- Inverted soft low damping rubber surround
- Advanced BIMAX spider
- Powerful optimized low distortion neodymium motor system
- Extended copper sleeve on pole piece
- Non-conducting fiberglass voice coil former
- Vented pole piece and voice coil
- Light weight CCAW voice coil
- Long life silver lead wires
Specs
- Nominal Impedance 4 Ω
- DC resistance, Re 3.4 Ω
- Voice coil inductance, Le 0.11 mH
- Effective piston area, Sd 69 cm2
- Voice coil diameter 30.5 mm
- Voice coil height 11 mm
- Air gap height 5 mm
- Linear coil travel (p-p) 6 mm
- Magnetic flux density 1.08 T
- Magnet weight 0.1 kg
- Net weight 0.79 kg
- Free air resonance, Fs 44 Hz
- Sensitivity (2.83 V / 1 m) 90 dB
- Mechanical Q-factor, Qms 4.98
- Electrical Q-factor, Qes 0.28
- Total Q-factor, Qts 0.27
- Moving mass incl. air, Mms 7.2 g
- Force factor, Bl 4.9 Tm
- Equivalent volume, VAS 12.2 liters
- Compliance, Cms 1.81 mm/N
- Mechanical loss, Rms 0.4 kg/s
- Rated power handling* 30 W
* IEC 268-5, T/S parameters measured on drive units that are broke in.
| NOM DU FICHIER | ACTION |
|---|---|
| mr13tx4.pdf | Télécharger |
