MR16PNW-4

Reste 2 en stock

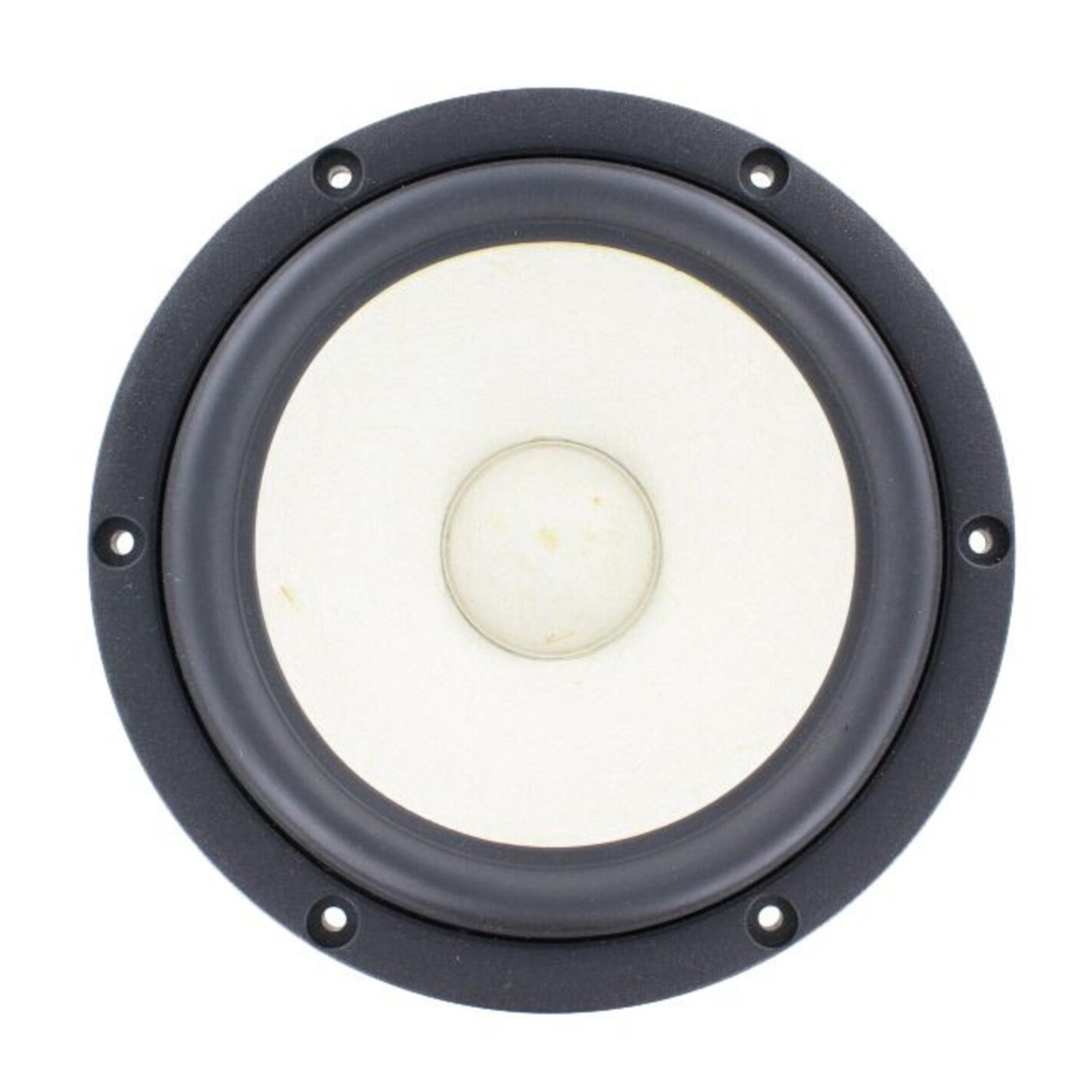

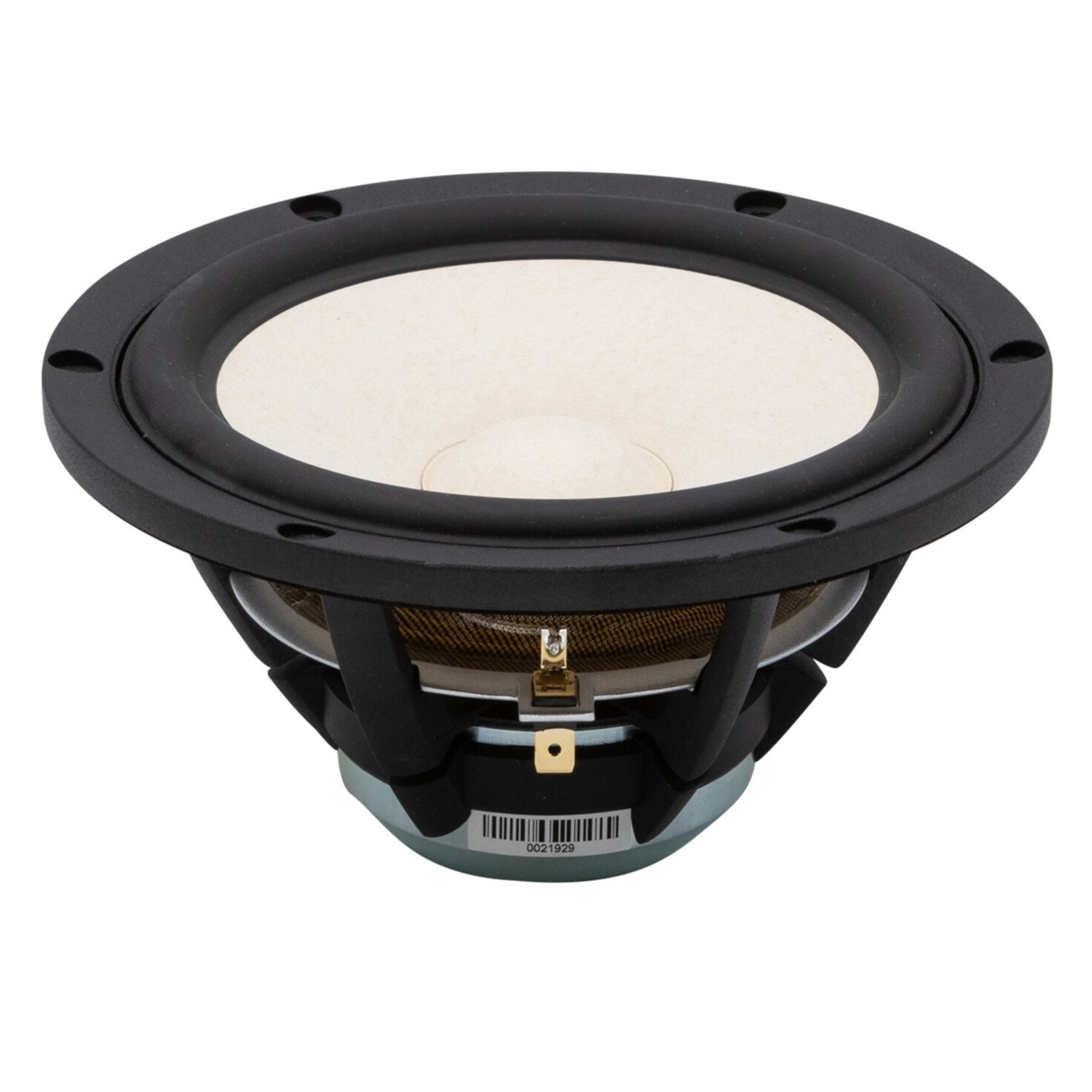

SB ACOUSTICS SATORI MR16PNW-4, 17cm PAPYRUS CONE NEODYMIUM MIDRANGE WHITE 4OHM
278,38 $CAeach
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type White Papyrus Cone Neodymium Midrange
Nominal Diameter 17cm
Impedance 4 ohms
Power Handling (RMS) 60 W
Frequency Response 31 - 8000 Hz
Sensitivity 92.5 dB
Voice Coil Diameter 36mm
SB ACOUSTICS SATORI MR16PNW-4, 17cm PAPYRUS CONE NEODYMIUM MIDRANGE WHITE 4OHM
Features Vented aerodynamic cast aluminium chassis for optimum strength and low compression
Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
Soft low damping rubber surround for optimum transient response
Advanced BIMAX spider for improved linearity
Powerful optimized low distortion neodymium motor system
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and reduced distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires attached 180° apart for improved stability
Vented pole piece and coil former for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
Mode balanced cone for reduced break-up

Specs Nominal Impedance 4 Ω
DC resistance, Re 3.2 Ω
Voice coil inductance, Le 0.11 mH
Effective piston area, Sd 119 cm2
Voice coil diameter 35.5 mm
Voice coil height 11.2 mm
Air gap height 5 mm
Linear coil travel (p-p) 6.2 mm
Magnetic flux density 1.17 T
Magnet weight (NEO) 0.13 kg
Net weight 1 kg
Free air resonance, Fs 31 Hz
Sensitivity (2.83 V / 1 m) 92.5 dB
Mechanical Q-factor, Qms 4.85
Electrical Q-factor, Qes 0.26
Total Q-factor, Qts 0.25
Moving mass incl. air, Mms 11.2 g
Force factor, Bl 5.2 Tm
Equivalent volume, VAS 47.2 liters
Compliance, Cms 2.35 mm/N
Mechanical loss, Rms 0.45 kg/s
Rated power handling* 40 W
* IEC 268-5, high-pass Butterworth, 200 Hz, 12 dB/oct.
NOM DU FICHIER ACTION
mr16pnw4.pdf Télécharger
