MW13P-8

Reste 4 en stock

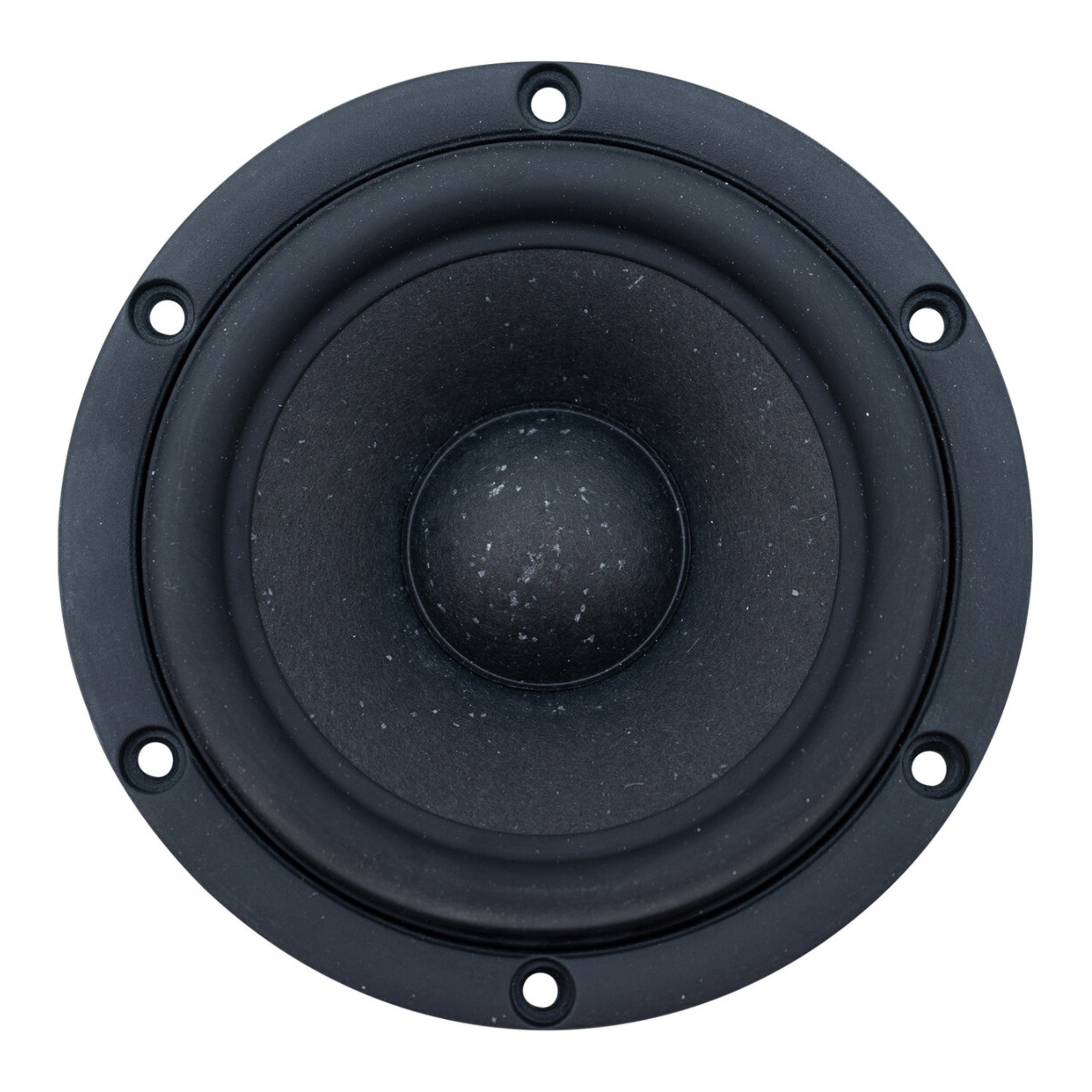

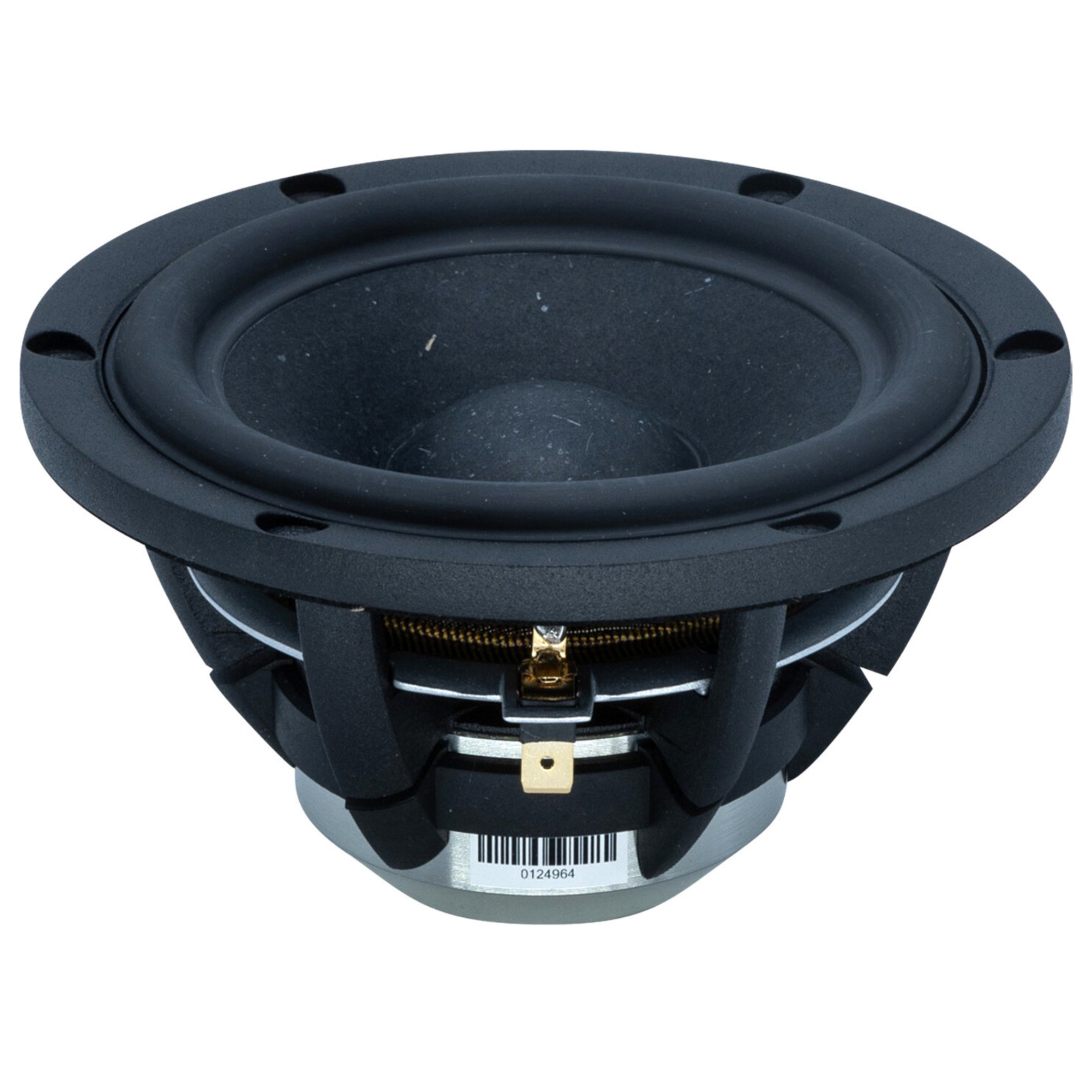

SB ACOUSTICS SATORI MW13P-8, 13cm PAPYRUS CONE NEODYMIUM MIDWOOFER BLACK 8OHM
236,71 $CAeach
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Papyrus Cone Neodymium Midbass
Nominal Diameter 13cm
Impedance 8 ohms
Power Handling (RMS) 40 W
Resonance Frequency 41.5 Hz
Sensitivity 87 dB
Voice Coil Diameter 31mm
SB ACOUSTICS SATORI MW13P-8, 13cm PAPYRUS CONE NEODYMIUM MIDWOOFER BLACK 8OHM
Features Vented aerodynamic cast aluminium chassis for optimum strength and low compression
Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
Soft low damping rubber surround for optimum transient response
Advanced BIMAX spider for improved linearity
Powerful optimized low distortion neodymium motor system
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and reduced distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires attached 180° apart for improved stability
Vented pole piece and coil former for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Specs Nominal Impedance 8 Ω
DC resistance, Re 6.0 Ω
Voice coil inductance, Le 0.15 mH
Effective piston area, Sd 70 cm2
Voice coil diameter 30.5 mm
Voice coil height 15 mm
Air gap height 5 mm
Linear coil travel (p-p) 10 mm
Magnetic flux density 1.08 T
Magnet weight 0.1 kg
Net weight 0.78 kg
Free air resonance, Fs 41.5 Hz
Sensitivity (2.83V/1m) 87 dB
Mechanical Q-factor, Qms 3.55
Electrical Q-factor, Qes 0.33
Total Q-factor, Qts 0.30
Moving mass incl. air,Mms 6.8 g
Force factor, Bl 5.7 Tm
Equivalent volume, Vas 15.0 liters
Compliance, Cms 2.16 mm/N
Mechanical loss, Rms 0.5 kg/s
Rated power handling* 40 W
* IEC 268-5, T/S parameters measured on drive units that are broken in
