SB15CAC30-8

Name: SB15CAC30-8
Brand: SB ACOUSTICS
SKU: SB15CAC30-8
Price: 145.43 CAD
Availability: InStock

Reste 2 en stock

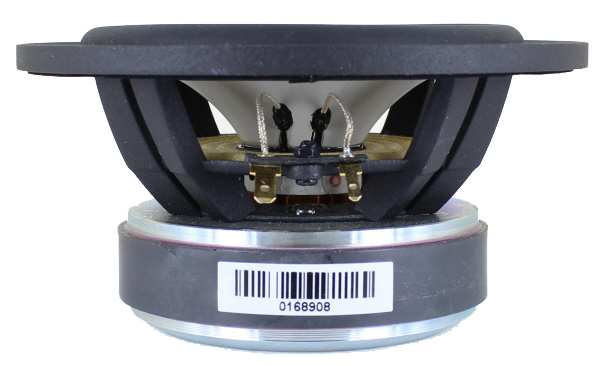

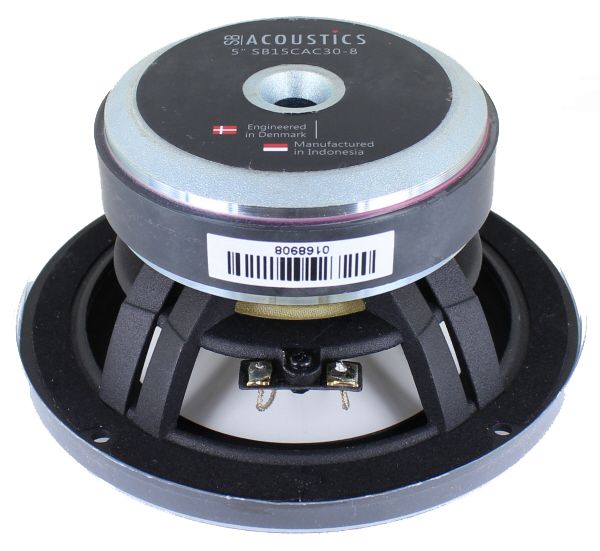

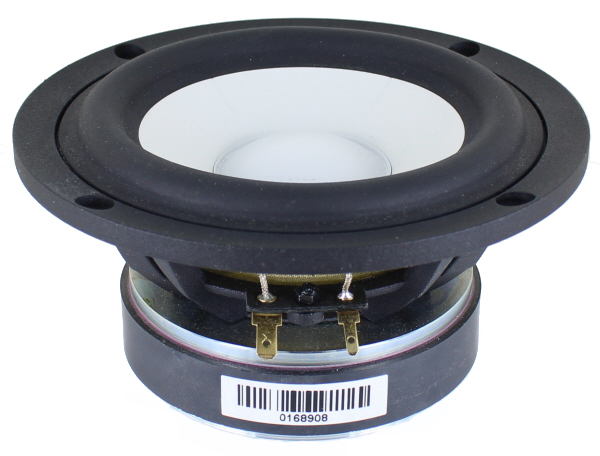

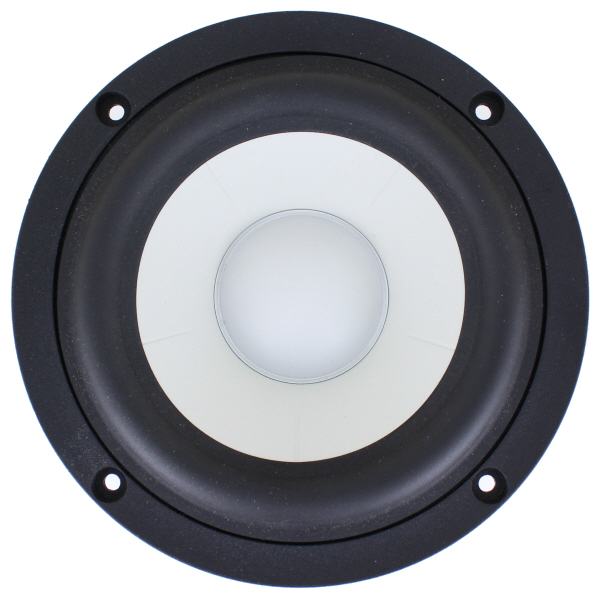

SB ACOUSTICS SB15CAC30-8, 150mm (5.5in / 5-1/2in) CERAMIC CONE MIDWOOFER 8 OHM

145,43 $CA^Chq

Haut-parleurs de Bas Médiums

Quantité

UGS : SB15CAC30-8
Marque : SB ACOUSTICS

ASSISTANCE 24/7

Assistance à tout moment

PAIEMENTS ACCEPTÉS

Visa, Paypal, MasterCard

PAIEMENT SÉCURISÉ

100% sécurisé

LIVRAISON

Partout dans le monde

PRIX COMPÉTITIFS

Qualité garantie

SB ACOUSTICS SB15CAC30-8, 150mm (5.5in / 5-1/2in) CERAMIC CONE MIDWOOFER 8 OHM

Product Specifications
Manufacturer	SB ACOUSTICS
Speaker Type	Ceramic Cone Midbass
Nominal Diameter	15cm
Impedance	8 ohms
Power Handling (RMS)	50 W
Frequency Response	36 Hz
Sensitivity	85.5 dB
Voice Coil Diameter	30mm

SB ACOUSTICS SB15CAC30-8, 15cm CERAMIC CONE MIDWOOFER 8OHM Features Vented cast aluminum chassis for optimum strength and low compression Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up Soft low damping rubber surround for improved transient response Non-conducting fibre glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and low distortion CCAW voice coil for reduced moving mass Long life silver lead wires Vented pole piece for reduced compression Specs Nominal Impedance 8 Ω DC resistance, Re 5.7 Ω Voice coil inductance, Le 0.14 mH Effective piston area, Sd 82 cm2 Voice coil diameter 30.5 mm Voice coil height 14 mm Air gap height 5 mm Linear coil travel (p-p) 10 mm Magnetic flux density 1.0 T Magnet weight 0.54 kg Net weight 1.46 kg Free air resonance, Fs 35.5 Hz Sensitivity (2.83 V / 1 m) 86 dB Mechanical Q-factor, Qms 4.77 Electrical Q-factor, Qes 0.42 Total Q-factor, Qts 0.38 Moving mass incl. air, Mms 10.7 g Force factor, Bl 5.7 Tm Equivalent volume, VAS 17.9 liters Compliance, Cms 1.88 mm/N Mechanical loss, Rms 0.5 kg/s Rated power handling* 50 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

NOM DU FICHIER	ACTION
sb15cac308.pdf	Télécharger
