Les composants de filtres passifs pour haut-parleurs les plus performants disponibles.

27TDC06

Reste 4 en stock

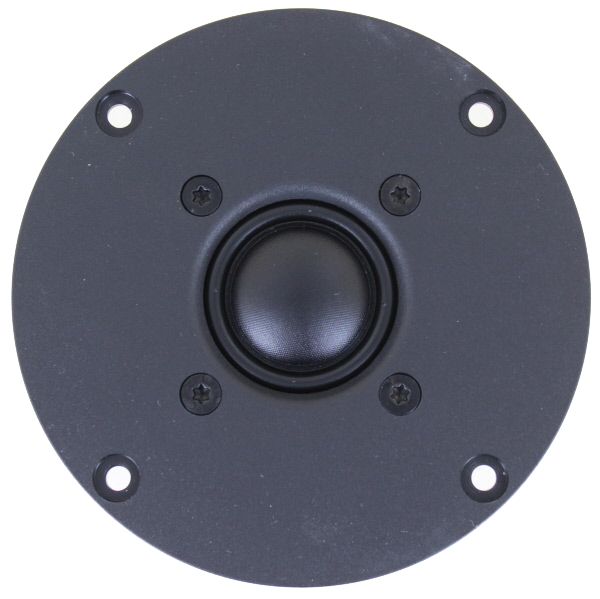

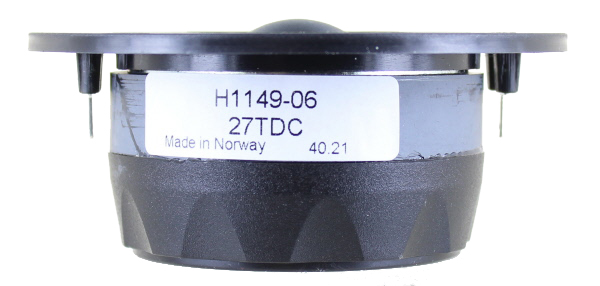

Seas Prestige 27TDC, 26mm (1in) Textile Dome Tweeter, H1149, 6ohm, 104mm Faceplate
113,96 $CAChq

Seas Prestige 27TDC, 26mm (1in) Textile Dome Tweeter, H1149, 6ohm, 104mm Faceplate

Product Specifications
Manufacturer SEAS PRESTIGE
Tweeter Type Textile Dome Tweeter
Cone / Dome Diameter 26mm
Impedance 6 ohms
Power Handling (RMS) 150 W (short term) | 55 W (long term)
Frequency Response 200 - 25000 Hz
Sensitivity (1W, 1m) 90 dB

27TDC is a High Definition precoated fabric dome tweeter with a wide, soft polymer
surround and a rear chamber.

Sonotex precoated fabric diaphragm with high consistency and excellent stability
against variations in air humidity.

Sonomax surround for low resonance, excellent mechanical linearity and stability
without magnetic fluid damping.

The voice coil is wound on an aluminium voice coil former with adequate
ventilating holes to eliminate noise from internal air flow.

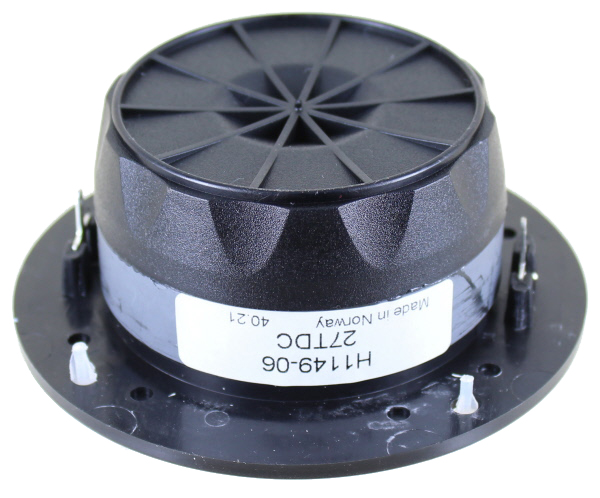

Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.

The chassis is precision moulded from glass fibre reinforced plastic, and its front
design offers optimum radiation conditions.

NOM DU FICHIER ACTION
27tdc.pdf Télécharger
