MURA 5B

En stock
Solen MURA 5B, 2way Speaker Kit using the SB-Acoustics SB13PFCR25-8 and SB19ST-C000-4.
199,00 $CA Paire 244,00 $CA

Solen MURA 5B, 2way Speaker Kit using the SB-Acoustics SB13PFCR25-8 and SB19ST-C000-4.

The Solen MURA 5B speaker kit was designed with the goal of having exctionaly good sounding speaker at a very low cost.

The crossover is composed of a 2nd order network with an optional filter to get a more open sound in the vocal range.

Bass extension down in the low 40Hz (in-room) is solid and controlled. Highs are detailed yet a bit laid back.

HIGHLIGHTS
- Big soundstage from a small footprint
- Strong and controlled bass
- Smooth yet detailed sound

SPECIFICATIONS
- HIGH FREQUENCY DRIVER : SB Acoustics SB19ST-C000-4
- LOW FREQUENCY DRIVER : SB Acoustics SB13PFCR25-8
- FREQUENCY RESPONSE ON AXIS (±3dB) : 58 Hz - 30 kHz
- LOW FREQUENCY EXTENSION (-10dB IN A TYPICAL ROOM): 35 Hz
- SENSITIVITY IN-ROOM (2.83V/1m): 86.5 dB
- IMPEDANCE : 8Ω (minimum 5.3Ω at 5.3KHz)
- EXTERNAL DIMENSIONS (HxWxD) : 317.5x190.5x241.3 mm (12½x7½x9½ in)
- RECOMMENDED AMPLIFIER POWER : 50W+ at 8Ω
- WEIGHT : 5.2 kg (11.4 lbs) each

Solen offers the detailed plans if you want to build the cabinets yourself.

We also have CNC machined Flat Pack Cabinets available separately.

MURA 5B BOX FP = Flat Pack MDF unassembled

!!! NO ASSEMBLY INCLUDED !!!

!!! CABINETS NOT INCLUDED !!!

KIT CONTENT
QT PART # ITEM MANUFACTURER
2 SB19ST-C000-4 19mm TEXTILE DOME TWEETER, 4 OHMS, 88MM FACEPLATE SB ACOUSTICS
2 SB13PFCR25-8 150mm FIBER CONE MIDWOOFER, 8 OHMS SB ACOUSTICS

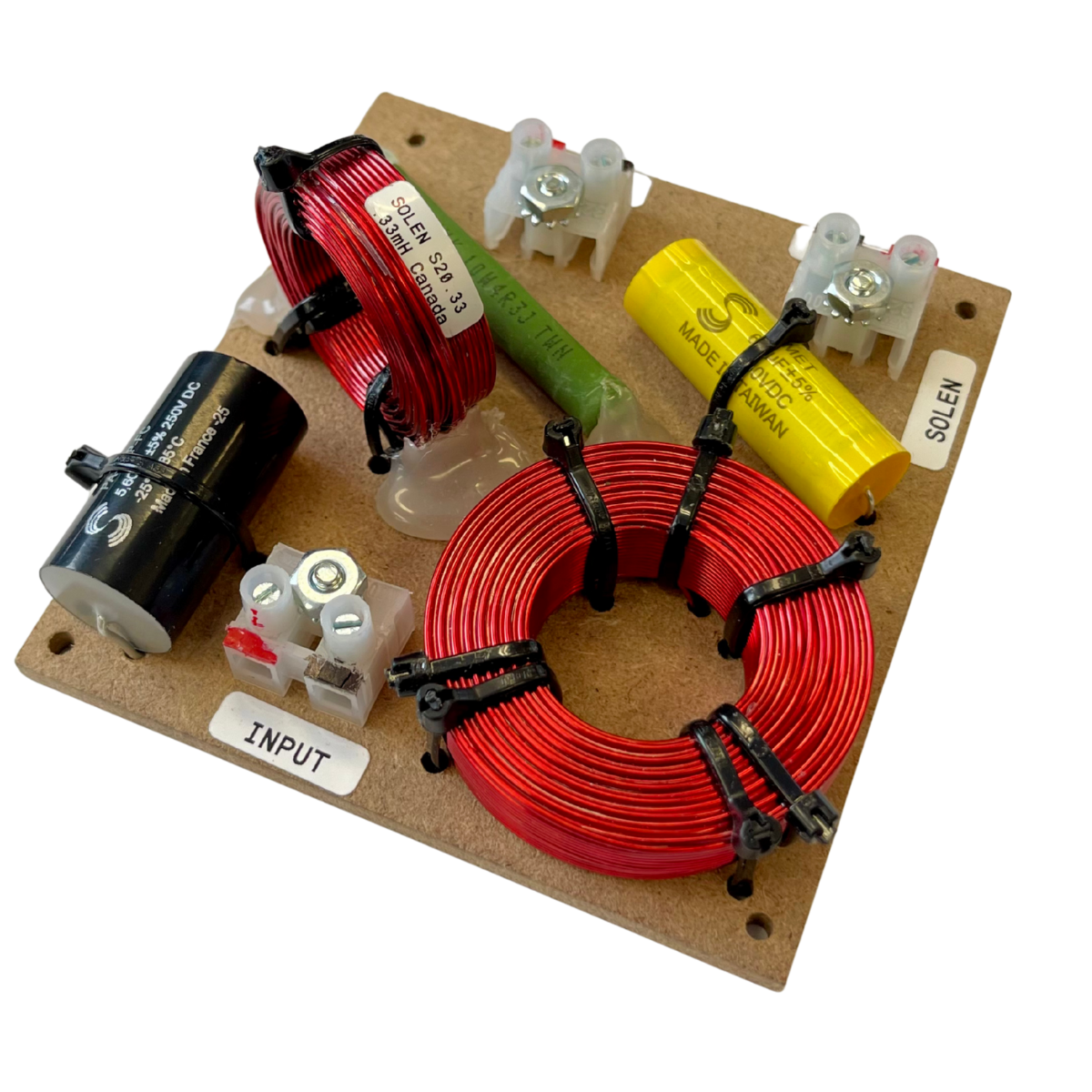

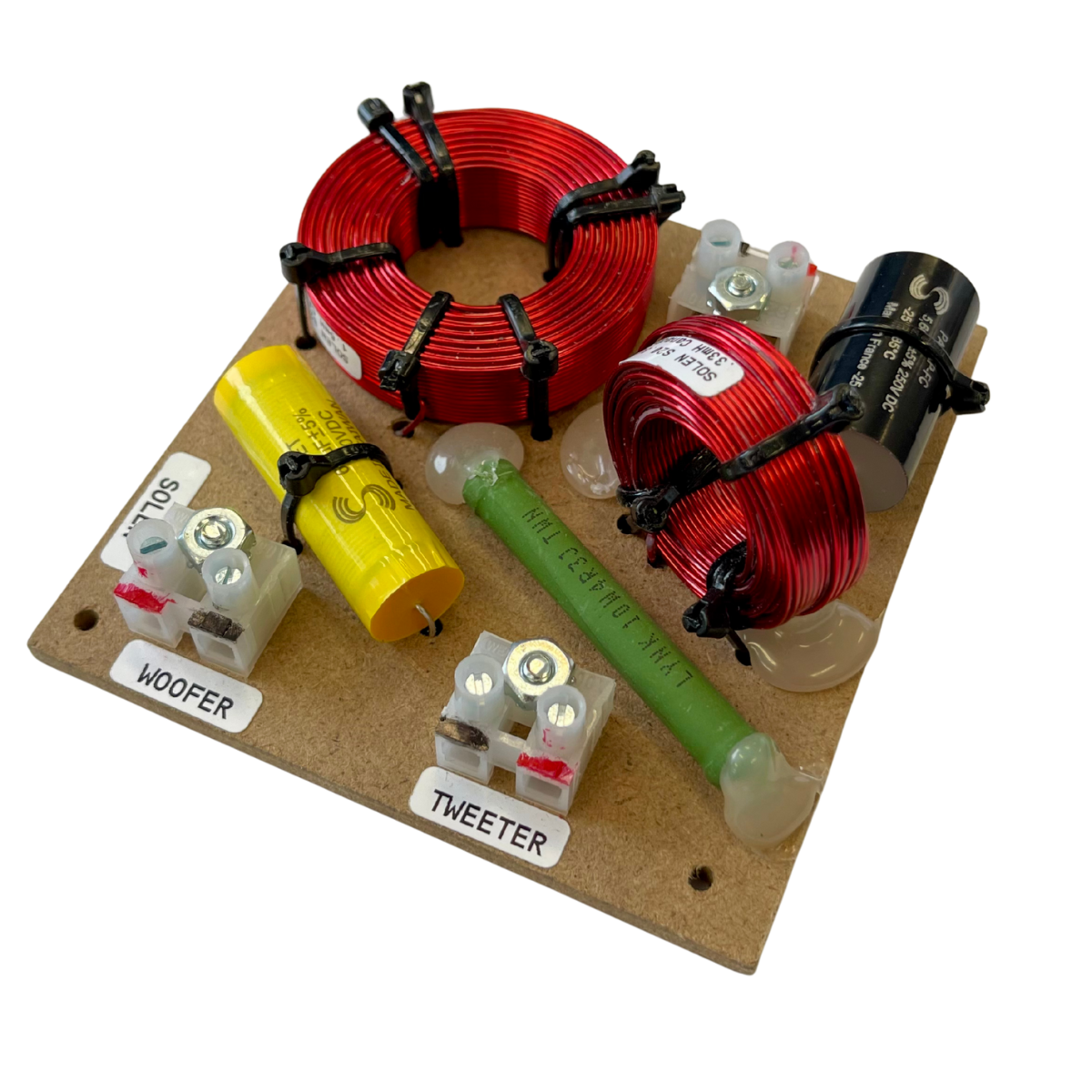

2 MURA 5B BOARD CROSSOVER BOARD FOR SOLEN MURA 5B SPEAKER KIT SOLEN
2 PEMT160J685 6.8mfd 160v Metallized Polyester Caps SOLEN
2 PEMT160J565 5.6mfd 160v Metallized Polyester Caps SOLEN
2 S20.33 0.33mH 20awg, 0.38ohms DCR, 11mm H x 45mm D  SOLEN
2 S201.5 1.5mH 20awg, 0.91ohmS DCR, 13mm H x 51mm D  SOLEN
2 MO1000J4R3 4.3 Ohms 10 W Link Metal Oxide Non-Inductive Resistors SOLEN
2 PPE033 0.33mfd Fast Capacitors 630v PPE Series Metallized Polypropylene SOLEN
6 322GDS DUAL CROSSOVER TERMINAL SOLEN
14 TY5232MX Tie Wrap 2.3mm x 20cm SOLEN
32 6X3/4P Pan Srew #6x3/4" SOLEN
2 RPT17GAS ROUND GOLD PLATED BINDING POST CUP SOLEN
1 POLYESTER White Bonded Polyester Batting, 12" off a roll of 42", x1.5"(38mm) SOLEN
8 FT4/16-2  FT4/CL2 rated 2 Conductors 1.3 mm (16ga) Diameter Wire SOLEN
6 GFD205-1614R RED Fem. Disc. .205 16/14 Gold Plated Brass SOLEN
2 GFD205-1614B BLACK Fem. Disc. .205 16/14 Gold Plated Brass SOLEN
4 GFD110-1614B BLACK Fem. Disc. .110 16/14 Gold Plated Brass SOLEN
NOM DU FICHIER ACTION
SOLEN MURA 5B - PLANS.pdf Télécharger
