AL130

Reste 2 en stock

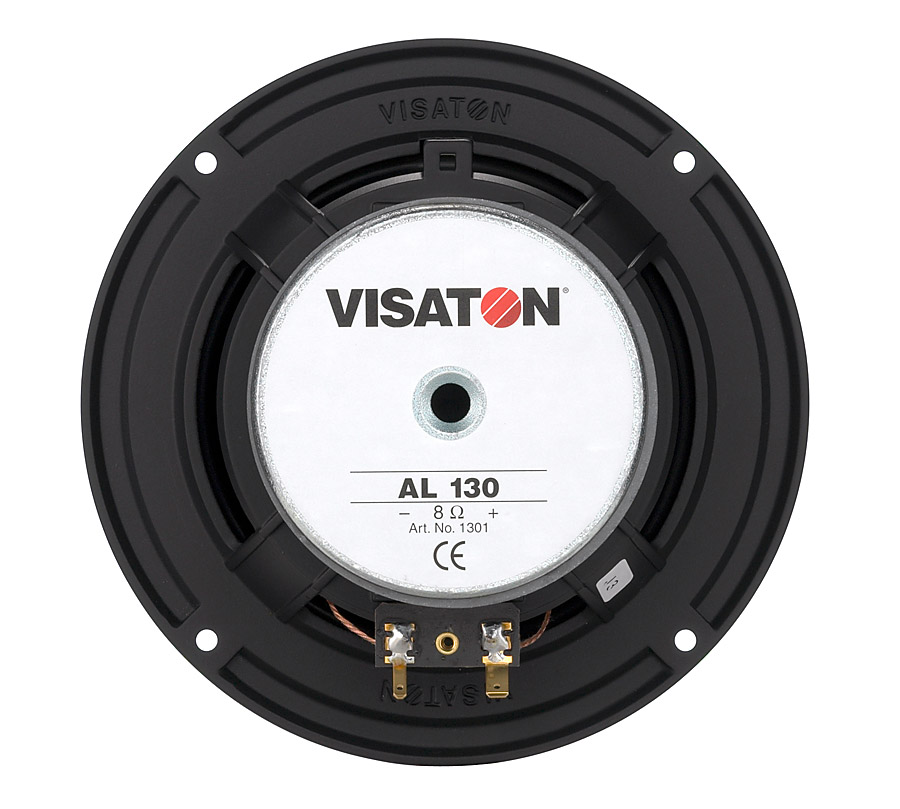

Visaton AL130, 153mm (5.5in / 5-1/2in) Aluminium Cone Mid-Bass, with 25mm Voice Coil, #1301, 8ohm.
263,70 $CAChq

Visaton AL130, 153mm (5.5in / 5-1/2in) Aluminium Cone Mid-Bass, with 25mm Voice Coil, #1301, 8ohm.

Product Specifications
Manufacturer VISATON
Speaker Type Aluminum Cone Mid-Bass
Nominal Diameter 15cm
Impedance 8 ohms
Power Handling (RMS) 60 W
Frequency Response 40 - 8000 Hz
Sensitivity 87 dB
Voice Coil Diameter 25mm

13 cm (5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 3-way High-End applications up to 5000 Hz.

NOM DU FICHIER ACTION
AL130 SPEC SHEETS.pdf Télécharger
