GF200

Reste 2 en stock

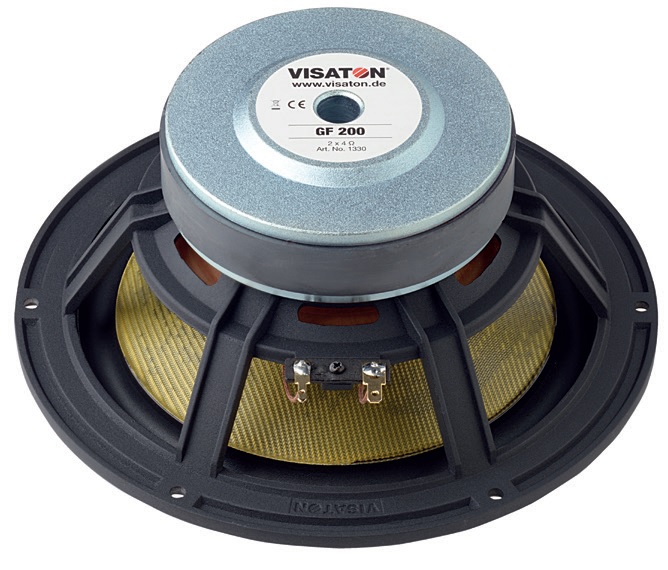

Visaton GF200, 222mm (8in) Glass Fiber Cone Woofer, with 38mm Voice Coil, #1330, 4+4ohm.
257,86 $CAChq

Visaton GF200, 222mm (8in) Glass Fiber Cone Woofer, with 38mm Voice Coil, #1330, 4+4ohm.

Product Specifications
Manufacturer VISATON
Speaker Type Glass Fiber Cone Woofer
Nominal Diameter 22cm
Impedance 4+4 ohms
Power Handling (RMS) 120 W
Frequency Response 29 - 2000 Hz
Sensitivity 88 dB
Voice Coil Diameter 38mm

20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The long stroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling.   Possible connections: (1) one voice coil not connected (2) both voice coils in series (3) both voice coils in parallel

NOM DU FICHIER ACTION
GF200 SPEC SHEETS.pdf Télécharger
