R10SC-100V
Reste 2 en stock
Visaton R10SC-100V, 102mm (4in) Water Repellent Paper Cone Fullrange, with 15mm Voice coil, with 100v Transfo #2045.
66,09 $CAChq
- R10SC-100V
- VISATON

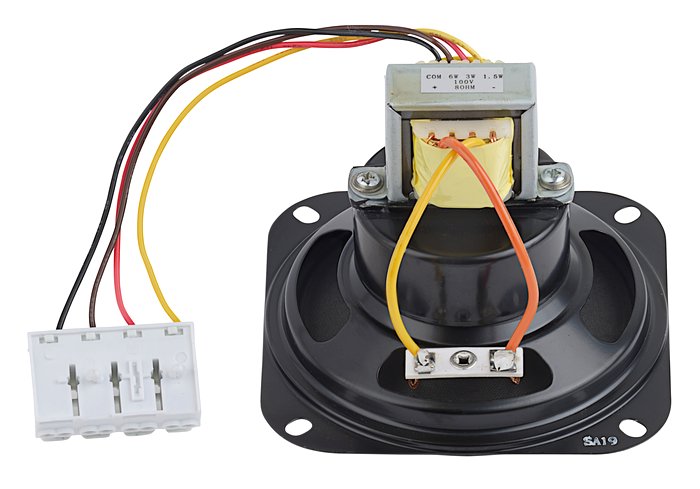

Visaton R10SC-100V, 102mm (4in) Water Repellent Paper Cone Fullrange, with 15mm Voice coil, with 100v Transfo #2045.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Speaker Type | Water Repellent Paper Cone Fullrange |
| Nominal Diameter | 10cm |
| Impedance | 100v |
| Power Handling (RMS) | 6 W / 3 W / 1.5 W |
| Frequency Response | 100 - 13000 Hz |
| Sensitivity | 90 dB |
| Voice Coil Diameter | 15mm |
Magnetically shielded 10 cm (4") fullrange speaker with high efficiency, balanced frequency response and high frequency rise for good off-axis speech intelligibility.
Water-repellent cone and rubber gasket.
Especially suitable as speaker for public applications and public transport systems.
With 100 V transformer.
An spring-terminal block, which can be fixated via catch pins, allows quick and easy connection to a 100 V network.
Typical applications
- Ceiling- mounted speakers in railway carriages and busses
Attributes
- 100 V transformer
- Functionally at cold according to EN 60068-2-1/EN 50155
- Cold storage (-40 °C) according to EN 60068-2-1/EN 50155
- Functionally at damp heat (cyclic) according to EN 60068-2-3/EN 50155
- Functionally at dry heat according to EN 60068-2-2/EN 50155
IP = 64, 67
| NOM DU FICHIER | ACTION |
|---|---|
| R10SC100v.pdf | Télécharger |
