W130X

Reste 2 en stock

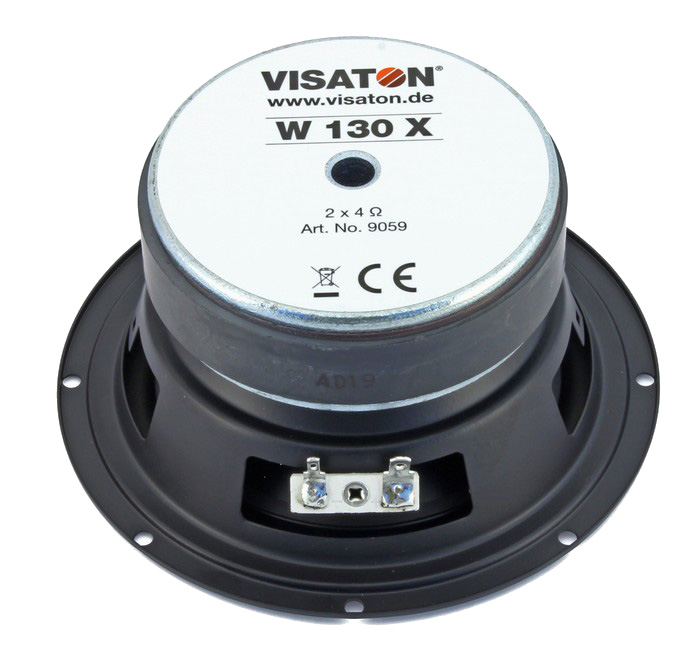

Visaton W130X, 148mm (5.5in / 5-1/2in) Polypropylene Cone Woofer, with 40mm Dual Voice Coil, #9059, 4+4ohm.
95,57 $CAChq

Visaton W130X, 148mm (5.5in / 5-1/2in) Polypropylene Cone Woofer, with 40mm Dual Voice Coil, #9059, 4+4ohm.

Product Specifications
Manufacturer VISATON
Speaker Type Polypropylene Cone Woofer
Nominal Diameter 15cm
Impedance 4 + 4 ohms
Power Handling (RMS) 60 W
Frequency Response 40 - 6000 Hz
Sensitivity 78 dB
Voice Coil Diameter 40mm

13 cm (5") woofer with robust polypropylene membrane for very compact subwoofer. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The enormous membrane displacement for its size as well as the very low resonance frequency allows a considerable sound pressure level, the one does not trust such a small speaker. Possible connections: (1) one voice coil not connected (2) both voice coils in series (3) both voice coils in parallel



NOM DU FICHIER ACTION
W130X SPEC SHEETS.pdf Télécharger
