WF223BD01

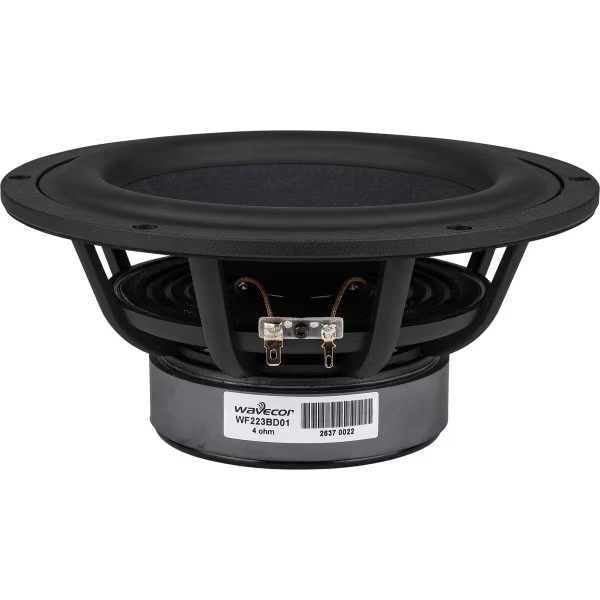

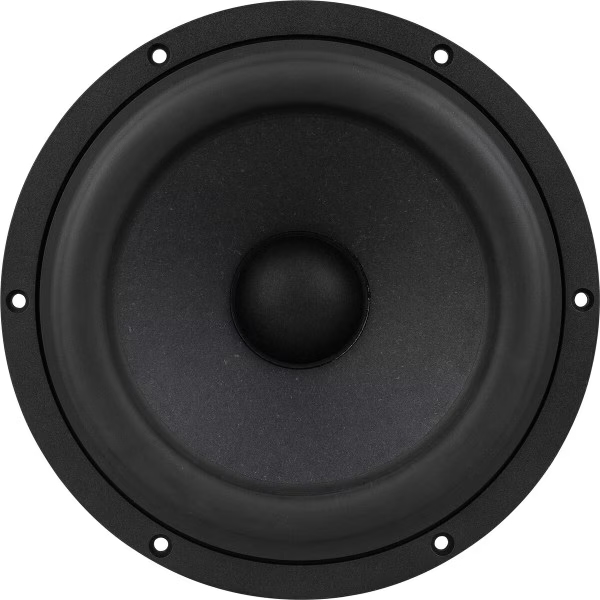

Wavecor WF223BD01, 223mm (8in) Glass Fiber/Paper Cone Woofer, with 39mm Voice Coil, 4ohm.

The 8.75” transducers WF223BD01 (4 ohm) and WF223BD02 (8 ohm) were designed as high performance bass/midrange units for  monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange.
Ideal for 3-way constructions they additionally offer designers the rare opportunity of working with 8” 2-way solutions if paired with a suitable tweeter like for instance some of the Wavecor 30 mm units.

Features

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Cone made of a new paper/glass fiber mix with improved consistency and stability
• Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented center pole with dual flares for reduced noise level and compressions at large cone excursions
• Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 39 mm voice coil diameter for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black plated motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection
