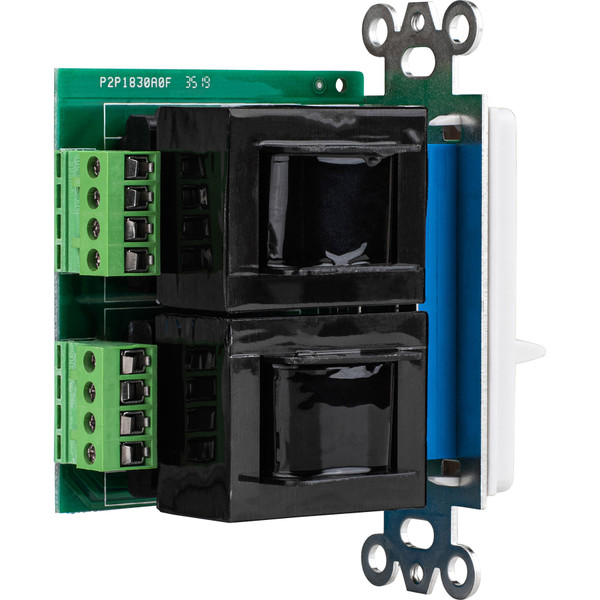

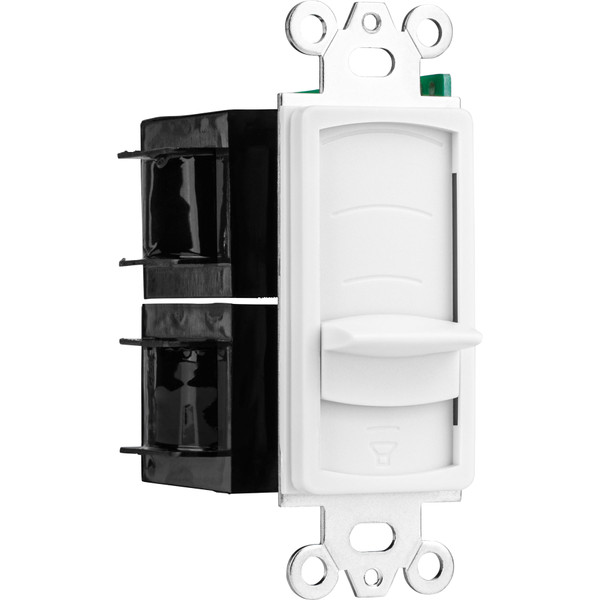

VC-100S

• 12 indented attenuation steps from no signal to full signal with no signal quality loss
• Impedance matching design for use with any combination of 4, 8, or 16-ohm speakers
• Fits into most deep single gang electrical junction boxes
• Independent grounds allow you to use with any amplifier

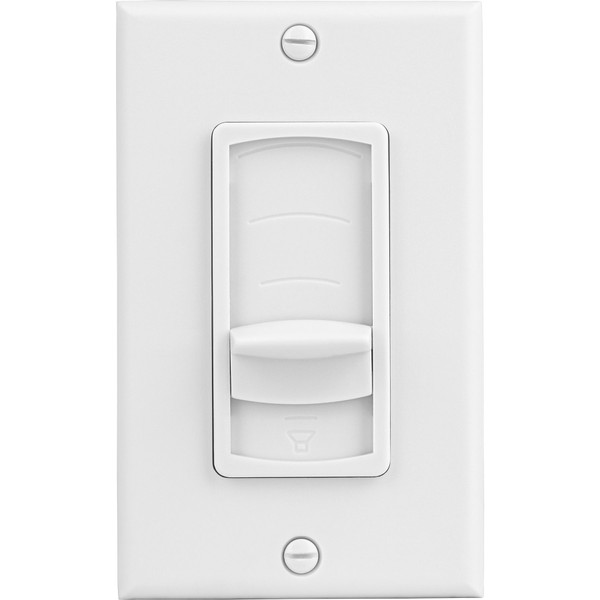

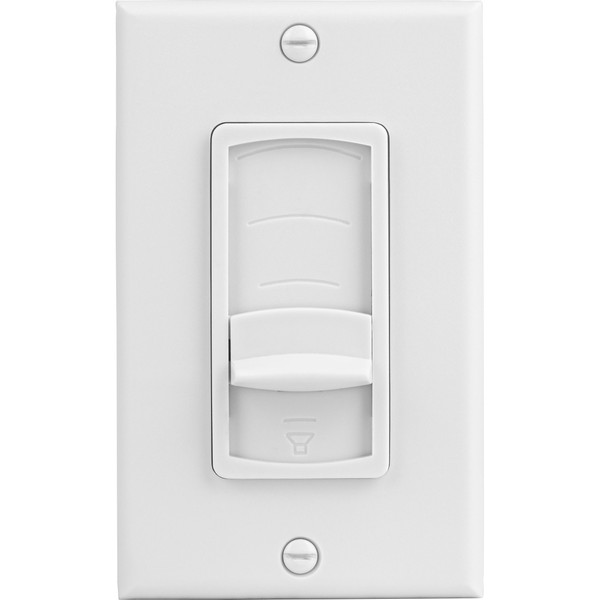

• Includes matching white wall plate

Specifications:

• Type: Sliding impedance matching
• Power handling: 2 x 100W
• Speaker impedance: 4, 8, 16 ohms
• Attenuation steps: 12 (step 1 is no signal, steps 2-7 at 3 dB each, step 8-11 at 6 dB each, step 12 is full signal)
• Frequency response: 35-20,000 Hz
• Input / output connections: Phoenix-type, up to 14-gauge speaker cable
• Size: Standard single gang
• Dimensions: 4" x 1-3/4" x 3"
