12MCS500

Name: 12MCS500
Brand: BEYMA
SKU: 12MCS500
Price: 249.93 CAD
Availability: InStock

(0)

In stock

Beyma 12MCS500, 31cm (12.25in / 12-1/4in) Paper Cone Pro Midbass, with 64mm Voice Coil, 98dB, 8ohm. !!! ITEM NOT ACTUALLY IN STOCK, ALLOW 1-2 WEEKS DELAY FOR DELIVERY !!!

CA$249.93^Each

Pro Bass Midranges

Choose another model

Choose another model
PD.153C01 CA$310.00 ^Each CA$420.00
ROSSO-6MW150D CA$127.68^Each
BIANCO-8MW125 CA$83.23^Each
BIANCO-8MWN150 CA$99.00 ^Each CA$165.88
BIANCO-10MW150 CA$110.18^Each
BIANCO-10MW200 CA$109.73^Each
BIANCO-12MW200 CA$127.90^Each
ROSSO-12MW300 CA$209.50^Each
BIANCO-12OB150 CA$110.95^Each
NERO-12MWN400D CA$313.45^Each
BIANCO-15MW200 CA$136.23^Each
BIANCO-15MW350 CA$189.63^Each
BIANCO-15OB350 CA$187.40^Each
ROSSO-15MW500 CA$301.90^Each
MB620-8 CA$68.08^Each
MB820-8 CA$63.59^Each
MB1025-8 CA$84.79^Each
6MB200N-8 CA$199.28^Each
8MB200N-8 CA$218.42^Each
10MB250N-8 CA$206.98^Each
12MB400N-8 CA$329.58^Each
15MB500N-8 CA$276.16^Each
WF259PA01 CA$551.68^Each
WF259PA02 CA$551.68^Each
5MP60/N CA$96.46^Each
6B30/P CA$85.50^Each
8BR40/N CA$99.76^Each
WF211PA01 CA$342.61^Each
WF211PA02 CA$342.61^Each
NERO-10MWN600D CA$313.45^Each
NERO-12MWN700D CA$332.08^Each
NERO-15MWN700D CA$370.73^Each
6PT-8 CA$26.76^Each
8PT-8 CA$37.79^Each
BIANCO-8MW250 CA$84.68^Each
NERO-8MWN400D CA$248.23^Each
PAW25 CA$208.32^Each
PAW30ND CA$557.57^Each
6CMV2 CA$86.60^Each
8CMV2 CA$95.36^Each
10CMV2 CA$110.72^Each
12CMV2 CA$160.60^Each
15CMV2 CA$210.47^Each
5G40ND/N CA$188.55^Each
6G40ND CA$226.91^Each
8G40 CA$185.26^Each
8MC300ND CA$316.80^Each
8MC500ND CA$356.27^Each
10MCS500 CA$237.87^Each
10MCB700 CA$314.60^Each
10MC700ND CA$488.90^Each
10MC500 CA$265.28^Each
12MCB700 CA$321.19^Each
12MC700ND CA$502.06^Each
12MC500 CA$279.54^Each
15MC500 CA$317.90^Each
15MC700ND CA$556.87^Each
15MCB700 CA$384.80^Each
5P200FE CA$124.97^Each
5P200ND CA$208.28^Each

Quantity

SKU: 12MCS500
Brand: BEYMA

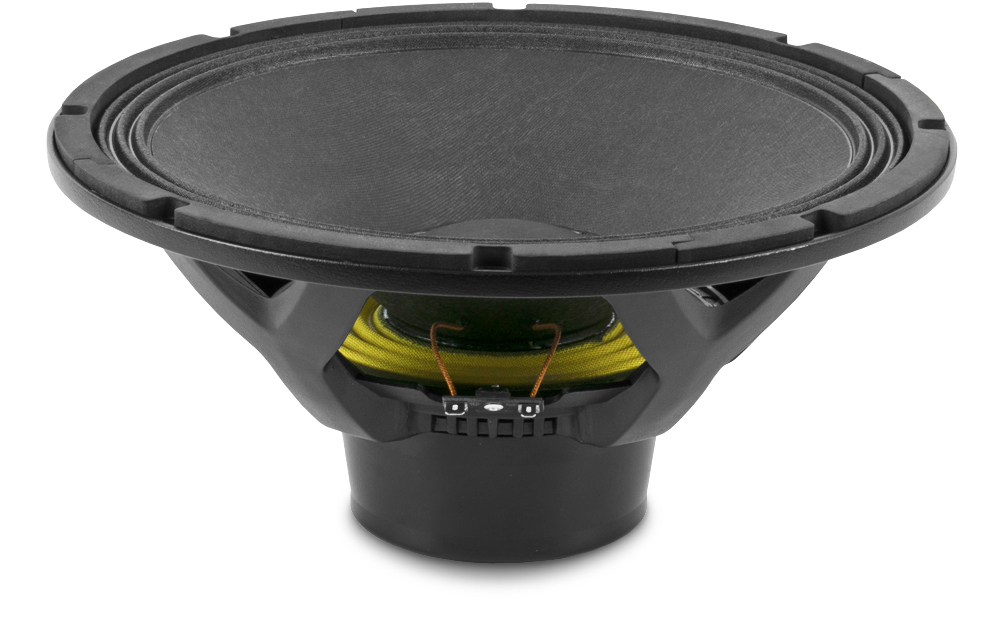

Beyma 12MCS500, 31cm (12.25in / 12-1/4in) Paper Cone Pro Midbass, with 64mm Voice Coil, 98dB, 8ohm.

Technical specifications

Power capacity

500 W AES

Nominal diameter

300 mm 12 in

Nominal impedance

8 Ohm

Minimum impedance

7.3 ohm

Program power

1000 W

Sensitivity

98 dB 1 W @ 1 m @ ZN

Frequency range

65-5000 Hz

Voice coil diameter

63.5 mm 2.5 in

BL factor

17.6 N/A

Moving mass

0.059 kg

Winding length

19.5 mm

Air gap height

9.5 mm

Xdamage pp

40 mm

Parameters Thiele & Small

57 Hz

5.6 ohm

Qms

7.8

Qes

0.38

Qts

0.36

Vas

57 l

Cms

132 µm / N

Rms

2.7 kg/s

Efficiency %

2.6

0.055m²

Xmax

8 mm

440 cm³

Le @1 kHz

1.1 mH

Construction details

Depth

141 mm 5.55 in

Net weight

6 kg 13.3 lb

Total weight

6.7 kg 14.77 lb

Magnet

Ferrite

FILENAME	ACTION
12MCS500.pdf	Download

12MCS500

Technical specifications

Parameters Thiele & Small

Construction details
