CE4876-16
- CE4876-16
- DAYTON AUDIO

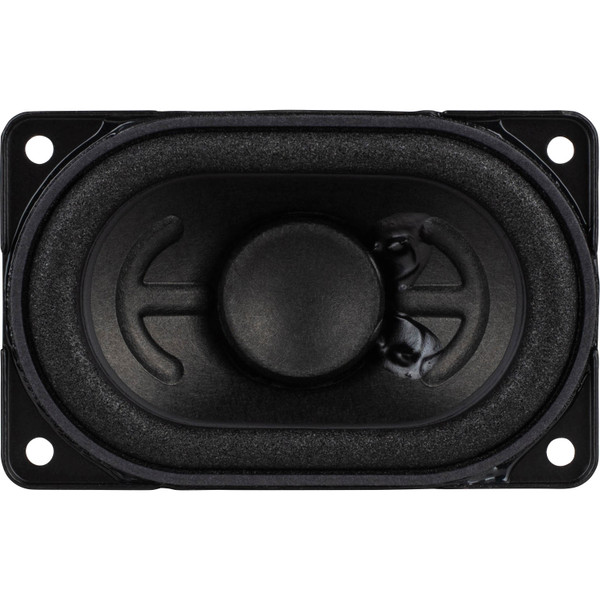

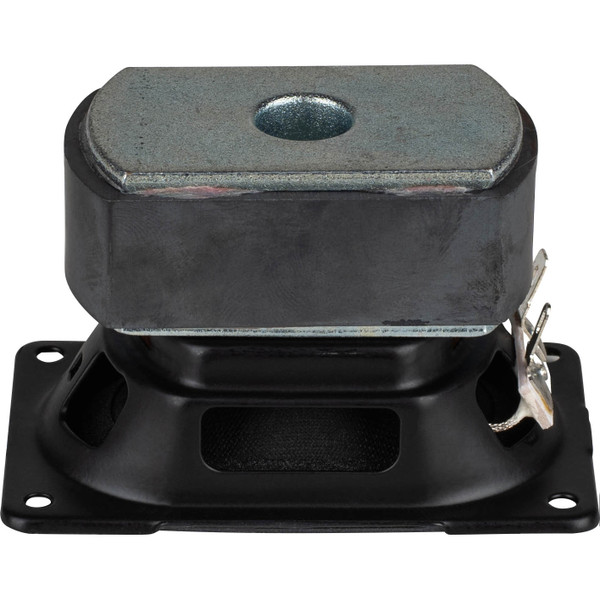

Dayton Audio CE Series CE4876-16, 48mm x 76mm (2in x 3in) Racetrack Full-Range 10W 16 ohm
Don't let the 2" x 3" racetrack shape fool you-the Dayton Audio CE4876-16 punches well above its weight class when it comes to full-range sound on a budget. Perfect for commercial installations, small projects, or DIY audio builds where space and cost are at a premium but quality can't be compromised, this high-aspect ratio woofer delivers crisp highs, rich mids and surprisingly robust bass for its proportions. The CE4876-4 handles up to 10 watts of power without breaking a sweat. For economic, compact audio that's high on performance but low on price, this micro speaker is music to any manufacturer's or maker's ears. Big sound, small footprint, tiny price tag.
- High Economic Value
- Delivers crisp, clear audio, ensuring an immersive listening experience
- High-quality audio solutions without breaking the bank, ideal for budget-conscious projects
- Suitable for commercial use, DIY projects, art exhibits, and more
Product Specifications |
|
|---|---|
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 16Ω |
| Frequency Response | 190 - 18,000Hz |
| Sensitivity | 86dB 2.83V/1m |
| Voice Coil Diameter | 19" |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 190Hz |
| DC Resistance (Re) | 14.5Ω |
| Voice Coil Inductance (Le) | 0.22mH |
| Mechanical Q (Qms) | 1 |
| Electromagnetic Q (Qes) | 1.8 |
| Total Q (Qts) | 1.5 |
| Mechanical Compliance of Suspension (Cms) | 0.29mm/N |
| BL Product (BL) | 4.84T·m |
| Diaphragm Mass Inc. Airload (Mms) | 2.28g |
| Maximum Linear Excursion (Xmax) | 2.45mm |
| Surface Area of Cone (Sd) | 26.3cm² |
