CE4895-8
- CE4895-8
- DAYTON AUDIO

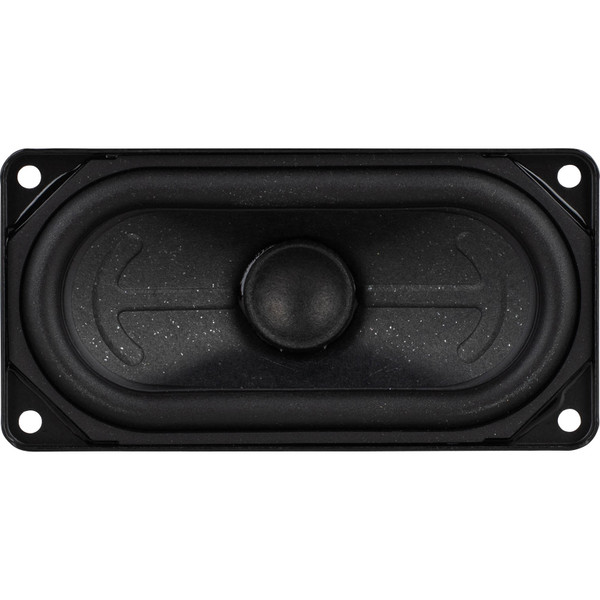

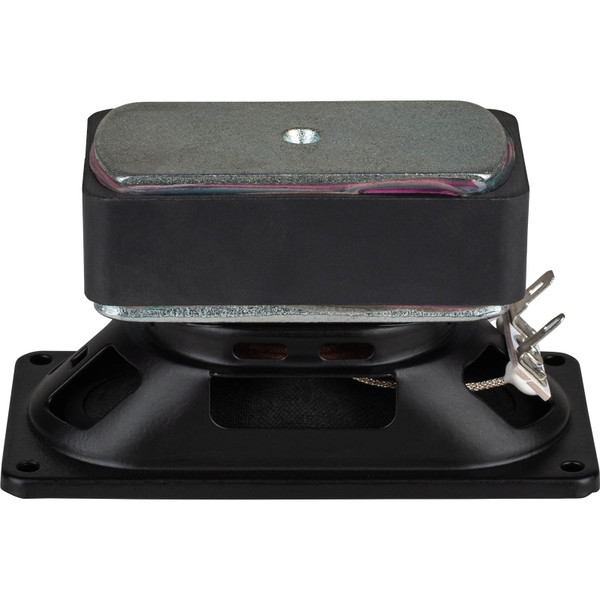

Dayton Audio CE Series CE4895-8 48mm x 95mm (2in x 3.75in / 2-3/4in) Racetrack Full-Range 22W 8 ohm
This full-range wonder may be small in size, but it's big on sound. Dayton Audio's CE4895-8 racetrack speaker punches well above its dimensions, delivering 22 watts of rich, full-bodied audio in a package measuring just 2 by 3.5 inches. Despite its commercial-grade durability, this speaker is a DIY enthusiast's dream come true for small projects. Its high aspect ratio means broad dispersion and a wide sweet spot, while its 8-ohm impedance plays nicely with a variety of amps. For micro installations where space is at a premium but sound quality cannot be compromised, this miniature maestro hits the high notes. Affordable, no-nonsense, and ready to rock right out of the box, the CE4895-8 proves that the best things in audio come in small packages.
- High Economic Value
- Delivers crisp, clear audio, ensuring an immersive listening experience
- High-quality audio solutions without breaking the bank, ideal for budget-conscious projects
- Suitable for commercial use, DIY projects, art exhibits, and more
Product Specifications |
|
|---|---|
| Power Handling (RMS) | 22 Watts |
| Power Handling (MAX) | 44 Watts |
| Impedance | 8Ω |
| Frequency Response | 204 - 15,000Hz |
| Sensitivity | 86dB 2.83V/1m |
| Voice Coil Diameter | 16" |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 143Hz |
| DC Resistance (Re) | 7.2Ω |
| Voice Coil Inductance (Le) | 0.49mH |
| Mechanical Q (Qms) | 7.2 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.6 |
| Mechanical Compliance of Suspension (Cms) | 0.45mm/N |
| BL Product (BL) | 5.36T·m |
| Diaphragm Mass Inc. Airload (Mms) | 2.6g |
| Maximum Linear Excursion (Xmax) | 1.75mm |
| Surface Area of Cone (Sd) | 29.3cm² |
