MA1280
1 left in stock

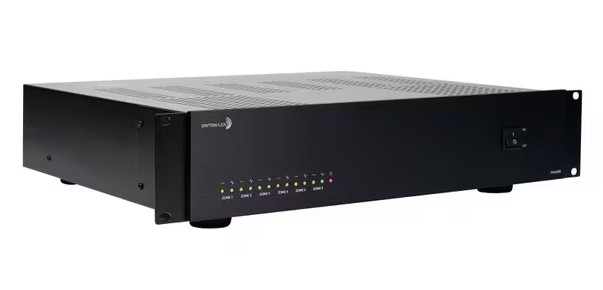

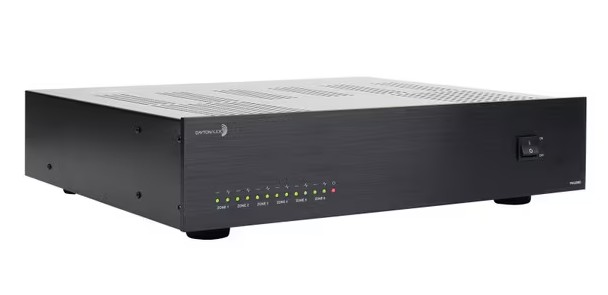

Dayton Audio MA1280, 8 Input, 80W X 12 Channel Class D Amplifier.
CA$1,124.20Each
- MA1280
- DAYTON AUDIO
Dayton Audio MA1280, 8 Input, 80W X 12 Channel Class D Amplifier.
From whole-home audio to home theater, the Dayton Audio MA Series multi-channel amplifiers deliver the perfect balance of power, efficiency, flexibility, and reliability. Featuring both global and individual channel inputs, these amplifiers can be configured for a wide range of applications. Their efficient, lightweight Class D design keeps energy consumption low without compromising on output performance.
Key Features
- Powerful Multi-Channel Amplification – 12 Class D channels delivering 80W RMS per channel at 8 ohms or up to 160W per zone in bridged mode, perfect for driving whole-home or theater systems
- Flexible Audio Routing – Use 8 independent line inputs, 2 stereo bus inputs, or a combination of both to send music exactly where you want it
- Whole-Home or Single-Room Use – Distribute audio to 6 zones for up to 6 rooms, or power a full multi-channel home theater setup with ease

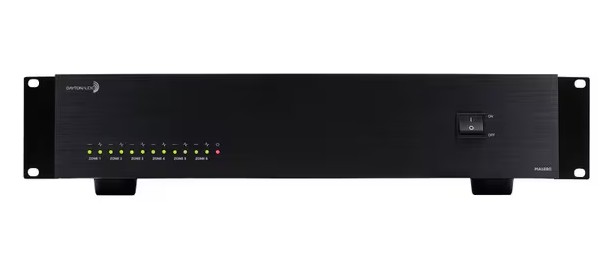

- Smart Installation Features – 2RU rack-mountable design with removable ears, manual or auto-on signal sensing, and 12V trigger input for automation systems
- Clean, Detailed Sound – Wide 20Hz–20kHz frequency response, high 106 dB signal-to-noise ratio, and low <1% THD for professional-quality audio

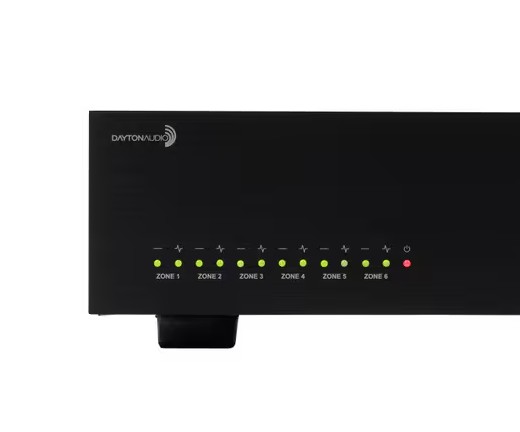

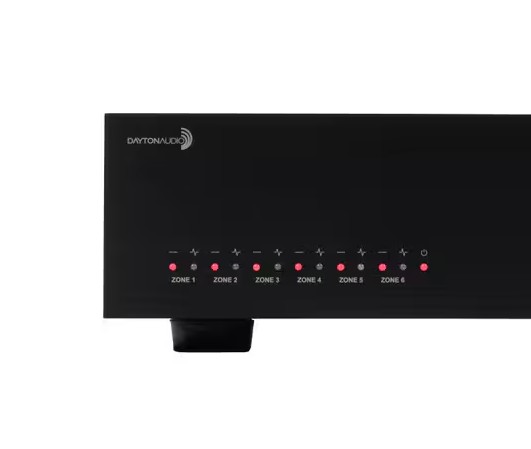

- Zone Status at a Glance – Bi-color LEDs show each channel pair’s operational status for quick troubleshooting
- Efficient & Reliable – Lightweight Class D design runs cool while delivering consistent, dependable performance in demanding setups
Key Specs:
- Channels: 12
- Power Handling @ 8ohms (RMS): 80 Watts
- Power Handling @ 4ohms (RMS): 160 Watts
- Frequency Response: 20Hz- 20kHz
- Inputs: 2 Stereo Bus Inputs, 1 mono input per channel
- Outputs: 2 Stereo Bus Outputs
MA1280 Specifications
| Channels | 12 |
| Power Handling (RMS) | 80 WPC @ 4 ohm |
| Power Handling (RMS) | 160 WPC @ 4 ohm |
| Power Handling (Bridged) | 160 W @ 8 Ohm |
| Frequency Response | 20 Hz - 20 kHz |
| Input Sensitivity | 680 mV |
| SNR, A-Weighted | 102 dB |
| Total Harmonic Distortion | <1% @ rated power |
| Inputs | 4 Individual Line Inputs, 2 Stereo Bus Inputs |
| Outputs | 2 Stereo Bus Outputs |
| Power Requirements | 120 - 240 VAC |
| Standby Consumption | 5 Watts |
| Dimensions | 19" W x 14.25" D x 4" H (width includes rack ears) |
| Weight | 17.13 lbs. |
In The Box
- 1 x MA1280 Amplifier
- 2 x Rack Mounting Brackets
- 1 x Rack Mount Installation Kit
- 6 x 4 pole Phoenix Connectors
- 1 x 6' Power Cable
- 1 x User Manual
| FILENAME | ACTION |
|---|---|
| dayton-audio-ma-series-user-manual.pdf | Download |
