ST602-4
- ST602-4
- DAYTON AUDIO

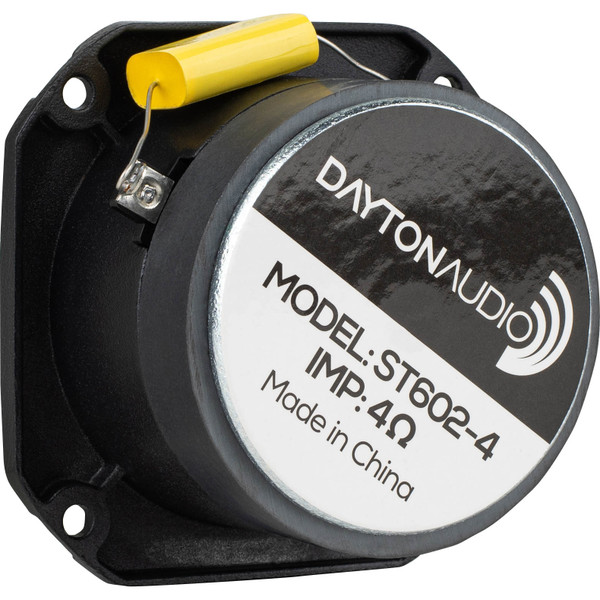

Dayton Audio ST602-4 60W Titanium Bullet Tweeter with Square Frame Pair
The ST602-4 from Dayton Audio was designed to articulate and reinforce the high-frequency output of any professional loudspeaker. With a great price-to-performance ratio, you would be hard-pressed to find a better driver to keep on hand!
Key Features
High sensitivity output designed for pro audio duty
1" titanium diaphragm for a detailed response
Compact size to fit in the tightest spaces for smaller boxes
5,100Hz crossover point is perfect for 3-way designs
Easily adds detail to any existing system
Key Specs:
Power Handling (RMS): 30 Watts
Power Handling (MAX): 60 Watts
Impedance: 8 Ω
Frequency Response: 5100Hz - 20kHz
Sensitivity: 106 dB 2.83V/1m
Voice Coil Diameter: 1"
Frequency Response & Impedance
The Dayton Audio ST602-4 is a supertweeter that can keep up with many midrange drivers. By taking advantage of its high-frequency response, you can add air and clarity to any PA system!
High Sensitivity
The Dayton Audio ST602-4 has a high sensitivity to keep up with the demands of live audio. An output sensitivity of 106dB means the ST602-4 can add detail to even the most sensitive PA cabinets. When installed, the high-frequency output of the ST602-8 provides a clear and airy experience for every audience member in the crowd!
High Value
Dayton Audio created the ST602-4 to provide a reliable replacement option with a response that comfortably integrates with existing designs, all at a great value. These features also put the speaker designer at an advantage, allowing for a large variety of possible combinations when choosing drivers for their own projects!
| FILENAME | ACTION |
|---|---|
| st6024.pdf | Download |
