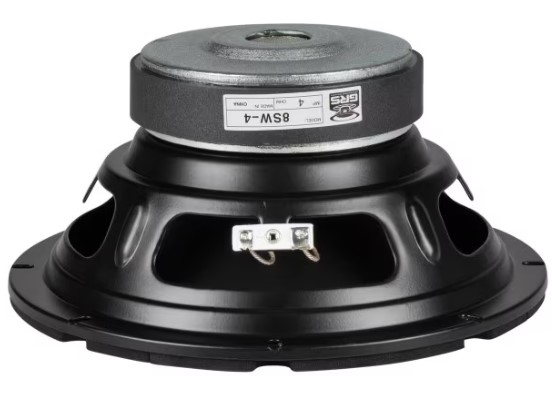

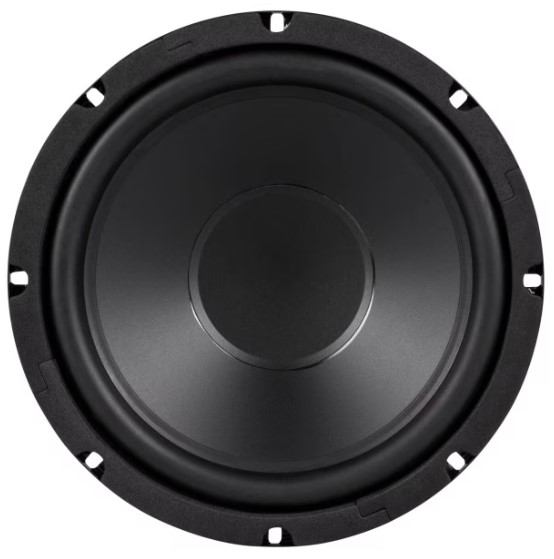

GRS 8SW-4, 209mm (8in) Poly Cone Subwoofer 4 Ohm.
- Polypropylene cone for perfect balance of stiffness, mass, and self-damping
- Butyl rubber surround ensures high excursion and long-term durability
- Large 1-1/2" voice coil and bumped back plate enable high power handling
- Long-throw design for deep, powerful bass
Now you can replace blown or damaged subwoofers with new drivers that equal or outperform the original! GRS poly cone subwoofers are the perfect replacement for tired, worn-out subwoofers in a variety of audio gear and even work great for new designs. Their handsome polypropylene cones provide durability and good looks, while the large vented magnet assemblies and extended voice coils enable long-throw performance and authoritative bass in a variety of enclosures.
The 8" model features a 1-1/2" diameter voice coil with extended 6mm excursion for solid bass performance in compact sealed and vented enclosures. These versatile subs are also rugged enough to be used in dipole and automotive infinite baffle applications.
See the below list of recommended enclosure alignments for new designs.
Recommended sealed enclosure: 1.0 ft^3, F3 = 48 Hz, Qtc: 1.16
Recommended vented enclosure: 1.0 ft^3, Fb = 40 Hz, F3 = 34 Hz
| FILENAME | ACTION |
|---|---|
| 8sw-4.pdf | Download |
