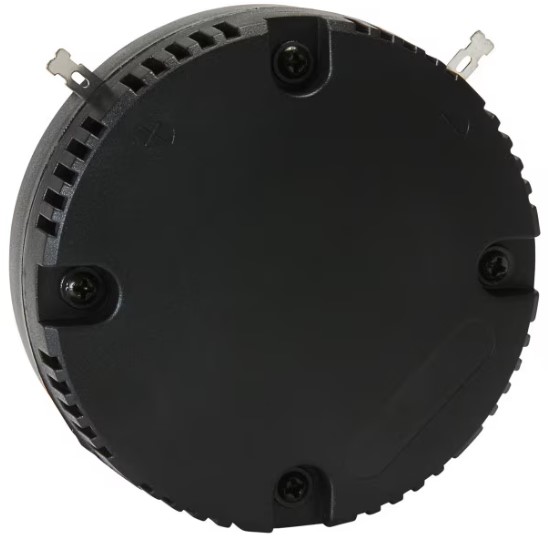

GRS PZ1188 Piezo Horn Driver Similar to KSN1188A.
Finally, an affordable drop-in replacement for those vintage KSN1188A piezos! GRS piezo tweeters are built using a 22 mm ceramic piezo element, to the original CTS specifications.
Key Features
- Perfect replacement for many classic loudspeakers
- No crossover required - great for simple, economical designs
- Great for super tweeter applications in DJ/Karaoke systems
- Equal or superior to products being sold for 8-10 times our price!

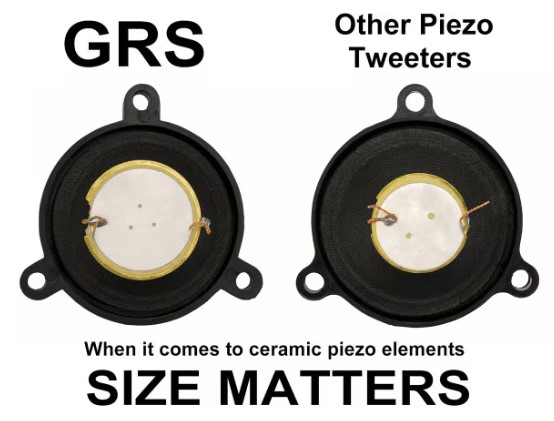

- 22 mm ceramic piezo element that follows original CTS specs
Standard 1-3/8" 18-TPI threads facilitate use with 1" horns. With a wide frequency range and ample power handling, this is also a prime candidate for new designs, especially if the crossover requirements must be kept to an absolute minimum. This 100 watt driver incorporates advanced protective circuitry which allows it to be used at power levels of up to 400 watts.
Specifications: • Power handling: 400 watts max • Frequency response: 800-20,000 Hz • SPL: 93 dB 1W/1m • Dimensions: Diameter: 3-7/8", Depth: 3".
