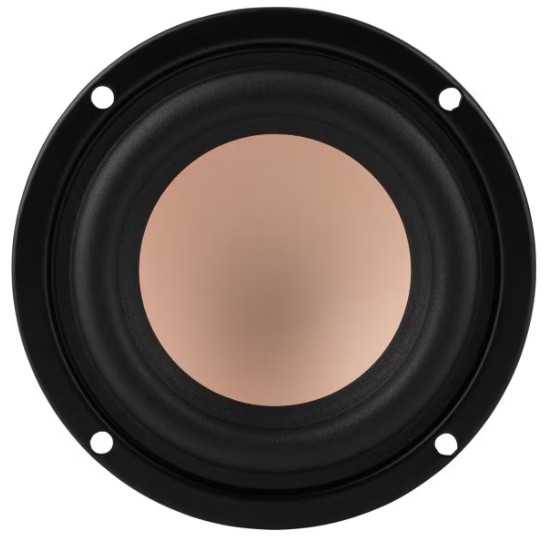

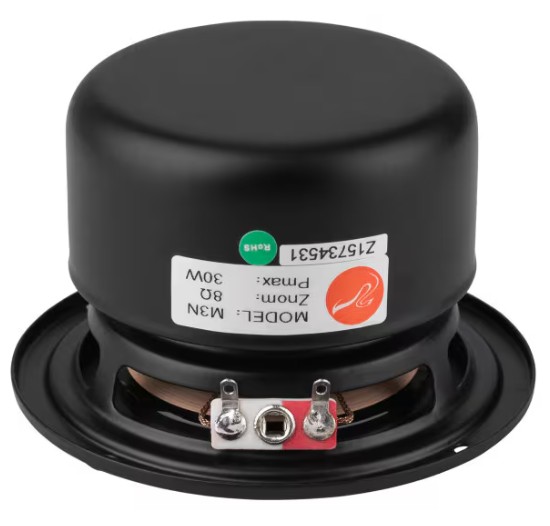

Hi-Vi Research M3N, 90mm (3.5in / 3-1/2in) Aluminium Magnesium Cone Fullrange, with 20mm (0.75in / 3/4in) Voice Coil, 8ohm.
Product Specifications | |
---|---|
Manufacturer | HI-VI RESEARCH |
Speaker Type | Aluminium Magnesium Cone Fullrange |
Nominal Diameter | 9cm |
Impedance | 8 ohms |
Power Handling (RMS) | 15 W |
Frequency Response | 100 - 15000 Hz |
Sensitivity | 82 dB |
Voice Coil Diameter | 20mm |
A shielded magnet structure allows the HiVi M3N 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.
FILENAME | ACTION |
---|---|
m3n.pdf | Download |
