CCB5075

Name: CCB5075
Brand: SCAN-SPEAK
SKU: CCB5075
Price: 993.65 CAD
Availability: InStock

(0)

In stock

SCAN-SPEAK CCB5075, 2way Bookshelf Speaker Kit with 15W/8534T00 and D2010/852100.

CA$993.65 ^Pair CA$1,169.00

Scan-Speak Kits

Choose another model

Choose another model
EXPERIENCE (2way MTM Floorstanding) CA$2,710.65 ^Pair CA$3,189.00
ULTIMATE REVELATION (2way MTM Floorstanding) CA$2,030.65 ^Pair CA$2,389.00

2way Kits

Choose another model

Choose another model
BIJOU170 (2way Bookshelf) CA$690.02^Each
A42RW (2way Bookshelf) CA$449.65 ^Pair CA$529.00
A52RW (2way Bookshelf) CA$602.65 ^Pair CA$709.00
EXPERIENCE (2way MTM Floorstanding) CA$2,710.65 ^Pair CA$3,189.00
ULTIMATE REVELATION (2way MTM Floorstanding) CA$2,030.65 ^Pair CA$2,389.00
A26 (2way Monitor) CA$1,741.65 ^Pair CA$2,049.00
BIFROST (2way Bookshelf) CA$2,166.65 ^Pair CA$2,549.00
EXOTIC (2way Bookshelf) CA$3,645.65 ^Pair CA$4,289.00
FROY MKIII (2way MTM Bookshelf) CA$3,161.15 ^Pair CA$3,719.00
IDUNN (2way Bookshelf) CA$942.65 ^Pair CA$1,109.00
MIMIR (2way Bookshelf) CA$849.15 ^Pair CA$999.00
ODIN MKIII (2way MTM Bookshelf) CA$3,662.65 ^Pair CA$4,309.00
THOR (2way MTM Transmission Line) CA$3,611.65 ^Pair CA$4,249.00
TRYM (2way Bookshelf) CA$2,809.15 ^Pair CA$3,299.00
ANANYA (2way MTM Floorstanding) CA$4,045.15 ^Pair CA$4,759.00
MANTIKA 2 (2way MTM Floorstanding) CA$908.65 ^Pair CA$1,069.00
ALTO GENESIS SAT (2way Bookshelf) CA$381.42^Pair
ALTO LINE (2way Floorstanding) CA$608.27^Pair
ALTO1 (2way Bookshelf) CA$408.87^Pair
ALTO2 (2way Floorstanding) CA$420.44^Pair
ARIA (2way Bookshelf) CA$573.59^Each
ARIA LIGHT (2way Bookshelf) CA$283.19^Each
ARIA MHT (2way Bookshelf) CA$1,785.78^Pair
ARIA2 (2way MTM Bookshelf) CA$903.00^Each
ARIA2 LIGHT (2way MTM Bookshelf) CA$333.75^Each
BIJOU (2way Bookshelf) CA$1,463.57^Pair
CLOU (2way Floorstanding) CA$566.37^Pair
COUPLET (2way MTM Bookshelf) CA$1,612.40^Pair
COUPLET LIGHT (2way MTM Bookshelf) CA$574.62^Pair
FONTANA (2way Floorstanding) CA$1,610.24^Pair
FONTANELLA SAT (2way Bookshelf) CA$1,515.72^Pair
GRAND ORGUE (2way Floorstanding) CA$2,401.27^Pair
MB208/H (2way MTM Monitor) CA$262.33^Each
NANO MK2 SAT (2way Bookshelf) CA$171.83^Each
PETIT ORGUE (2way Monitor) CA$1,038.81^Pair
PORTRAIT (2way On-Wall) CA$260.06^Pair
STELLA LIGHT (2way Floorstanding) CA$362.65^Pair
STUDIO 1 (2way Monitor) CA$988.24^Each
TABULA (2way Shelf) CA$267.29^Each
TOPAS (2way Transmission Line) CA$2,237.99^Pair
VIB170AL (2way Floorstanding) CA$1,216.53^Pair
VIB2000GF (2way Floorstanding) CA$1,134.17^Pair
BRAGI (2way MTM Bookshelf) CA$1,401.65 ^Pair CA$1,649.00
MICRO (2way Bookshelf) CA$262.65 ^Pair CA$309.00
MICRO C (2way Bookshelf) CA$390.15 ^Pair CA$459.00
ARA (2way Bookshelf) CA$1,274.15 ^Pair CA$1,499.00
ARA BE (2way Bookshelf) CA$1,894.65 ^Pair CA$2,229.00
KOURTISANE4.2 (2way Bookshelf) CA$645.15 ^Pair CA$759.00
ARA TX (2way Bookshelf) CA$1,979.65 ^Pair CA$2,329.00
KOMPACTE (2way Bookshelf) CA$823.65 ^Pair CA$969.00
APHEL (2way Floorstanding) CA$1,159.40 ^Pair CA$1,364.00
LUCID (2way Bookshelf) CA$3,416.15 ^Pair CA$4,019.00
ACUITY (2way Bookshelf) CA$3,516.65 ^Pair CA$4,149.00
JOLLITY (2way Bookshelf) CA$662.15 ^Pair CA$779.00
JOY (2way Bookshelf) CA$1,274.15 ^Pair CA$1,499.00
EXPRESSION (2way Bookshelf) CA$569.00^Pair
PURE CA$850.00 ^Pair CA$1,000.00
MURA 5B CA$199.00 ^Pair CA$244.00
TOY DSP CA$1,997.50 ^Pair CA$2,350.00
TOY PASSIVE CA$1,848.75 ^Pair CA$2,175.00
HORIZON CA$1,115.00 ^Pair CA$1,315.00
STUDIO 2 CA$706.50^Each
ZYKLOP CA$898.67^Each
LABELLE CR CA$1,017.14^Each

Quantity

SKU: CCB5075
Brand: SCAN-SPEAK

SCAN-SPEAK CCB5075, 2way Bookshelf Speaker Kit with 15W/8534T00 and D2010/852100.

Product Specifications

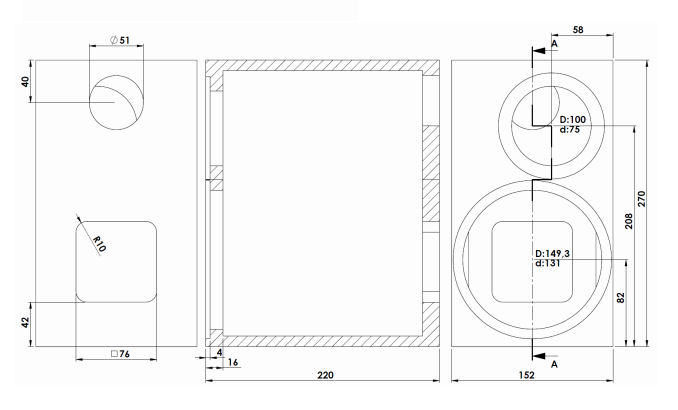

Manufacturer	Compact Classic Bookshelf loudspeaker Small speaker with big sound, this tiny speaker measures only 15 x 22 x 27cm (W x D x H) and has an internal volume of approximately 5½ liter, but sound like it was much larger. It features a 20mm Dome tweeter D2010/852100 and a 15cm midwoofer 15W/8534T00, both from our Classic family.

KIT CONTENT

QT	PART #	ITEM	MANUFACTURER
2	D2010/852100	20mm Textile Dome Tweeter	SCAN-SPEAK

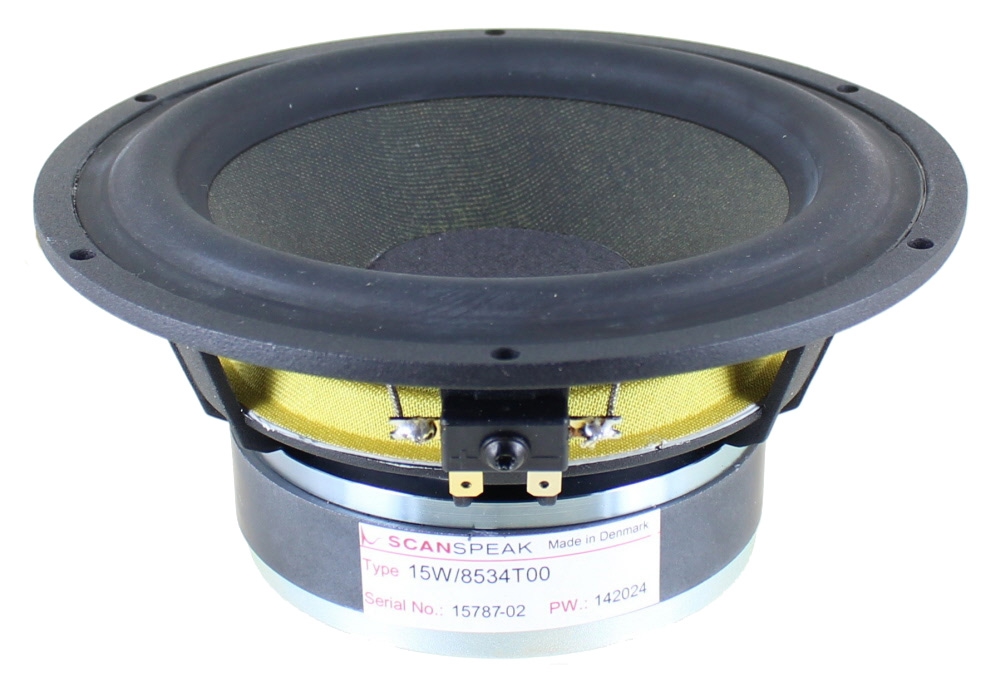

2	15W/8534T00	15cm Phenomax Cone Midwoofer	SCAN-SPEAK
2	PB470	4.7 mfd 400v 20x33	SOLEN
2	PA1000	10 mfd 250v 24x33	SOLEN
2	S20.33	.33 mH 0.8 11x22x45	SOLEN
2	L141.0	1.0 mH 1.5 19x38x76	SOLEN
2	AOC1600G3R3	3.3 Ohms 16w 2% 9x55mm	SOLEN
2	MO1000J1R5	1.5 Ohms 10w	SOLEN
2	PCB-S	PCB 2Way Small X-over	SOLEN
6	322GDS	Crossover Terminal	SOLEN
16	TY5242MX	Tie Wrap 3.6mm x 21cm	SOLEN
2	PT-1.9F	Flared Port 1-7/8in x 5-5/8in, Adjust Drawing to Fit	SOLEN
2	SBPP-BK	Plate Terminal 104mm x 104mm	DAYTON AUDIO
4	858-LU	Binding Post Gold 8x38mm	SOLEN
20	OXSOCKET6X3/4	Hex Socket Screw #6x3/4	SOLEN
8	6X3/4P	Pan Screw #6x3/4	SOLEN
1	POLYESTER	Fiberflex 38mmx12inx42in	SOLEN
6	CLASSIC1.6	Tin Plated OFC 2x1.6mm	SUPRA CABLES
4	GFD205-1614R	Female Disconnect .205 16/14 RED	SOLEN
2	GFD205-1614B	Female Disconnect .205 16/14 BLACK	SOLEN
2	GFD110-1614B	Female Disconnect .110 16/14 RED	SOLEN

FILENAME	ACTION
CCB5075.pdf	Download
