MR120BD02
4 left in stock

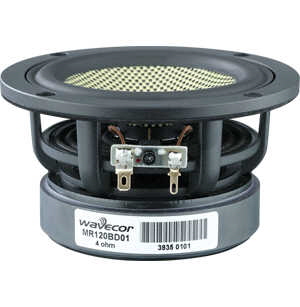

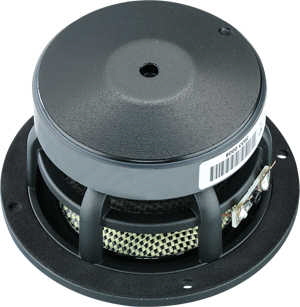

Wavecor MR120BD02, 120mm (4.5in / 4-1/2in) Kevlar/Carbon Fiber Cone Midrange, 8ohm.
CA$161.84Each
- MR120BD02
- WAVECOR
Wavecor MR120BD02, 120mm (4.5in / 4-1/2in) Kevlar/Carbon Fiber Cone Midrange, 8ohm.
The 4.75” transducer MR120BD02 (round, 8 ohm) is designed as high performance midrange unit for high quality multi-way speakers.
FEATURES:
- New cone of interwoven Kevlar/Carbon fibers, a new reference for the combination of low mass, rigidness, and damping - highly beneficial properties for midrange reproduction
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Vented, inverted center dome for reduced compression
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 1” voice coil diameter for better control and power handling
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
| FILENAME | ACTION |
|---|---|
| MR120BD01_02_03_04.pdf | Download |
