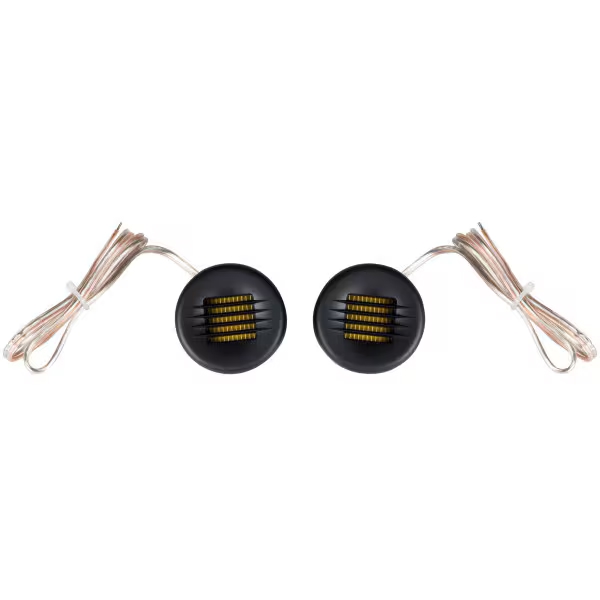

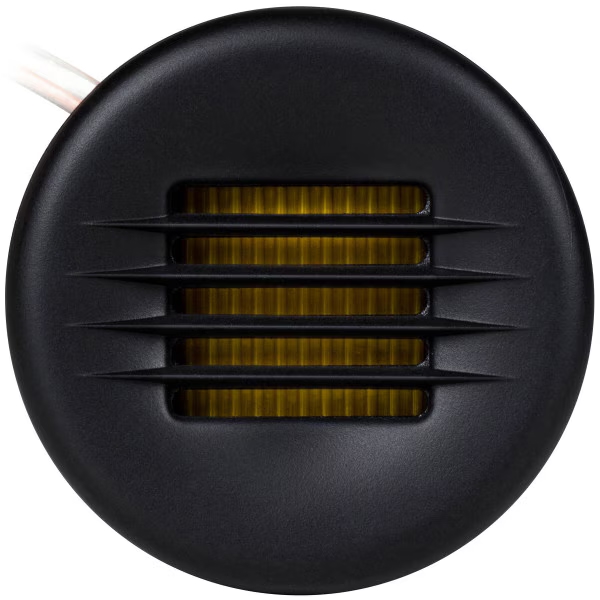

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair
CA$90.85pair
Product Specifications
Manufacturer DAYTON AUDIO
Summary 3.8cm2 AMT Ribbon Tweeter

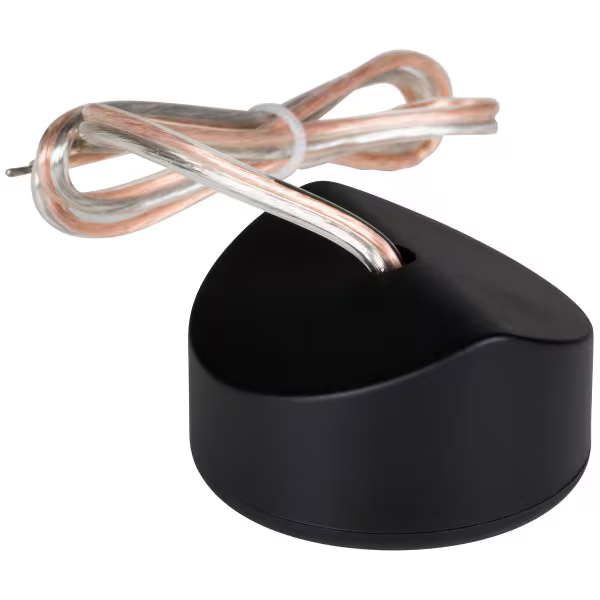

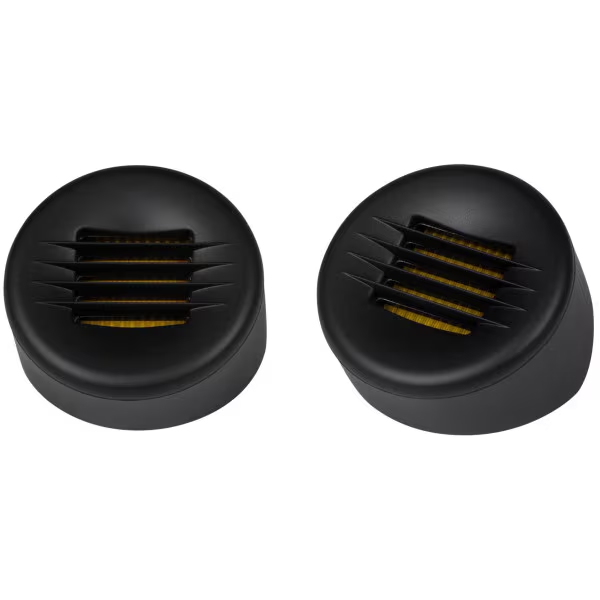

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair Get ready for AMT treble quality in your car! The Dayton Audio AMTPOD-4 is a high-technology Air Motion Transformer tweeter encased in a compact angled "pod" enclosure for easy mounting in your car. Try them on your dashboard and experience a wide, expansive soundstage with open and extended highs and incredible detail! The angled housings can be positioned anywhere on your dash or A-pillar, then adhered using the included mounting tape. Simply connect the included lead wires to an appropriate high-pass crossover (4500 Hz or above at 12 db per octave), and you are ready to begin enjoying audiophile-quality treble performance. The AMTPOD-4 tweeters are sold as a pair, to complete your installation at a great price! Note: The AMTPOD-4 does not include an internal crossover capacitor; this allows you to choose the quality of the capacitor to use. We recommend a 6.8 uF non-polar capacitor in series with the positive connection of the AMTPOD-4 to provide an effective crossover point near 7,800 Hz with a 6 dB per octave slope. Using this tweeter without a high-pass filter capacitor is not recommended and may result in damage. Specifications: • Power Handling: 15 watts RMS/30 watts max • Impedance: 4 Ohms • Frequency Response: 4,500-25,000 Hz • SPL: 90 dB 2.83V/1m • Lead Length: 20" • Dimensions: Overall diameter: 1.65" Height: 0.86" Angle: 30 degrees

FILENAME ACTION
amtpod4-1.pdf Download
