AN25TI-4
- AN25TI-4
- DAYTON AUDIO
- Car audio
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Tweeter Type | Titanium Dome Neodymium Car Tweeter with mounting hardware |
| Cone / Dome Diameter | 25mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 30 W |
| Frequency Response | 3000 - 20000 Hz |
| Sensitivity | 95.5 dB |
The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion, and an exceptionally flat response above 3 kHz. These tweeters are specifically designed for car audio systems, however their modern appearance and flat response curve integrate easily into any design, especially where minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs. Highlights
- Exceptionally flat treble response for accurate high frequency reproduction
- High-strength neodymium motor provides low distortion and compact size
- Ultra-high sensitivity of 95 dB to deliver high output with modest power
- 1" titanium diaphragm for incredibly accuracy and great off-axis response
- 1" diameter voice coil for excellent power handling

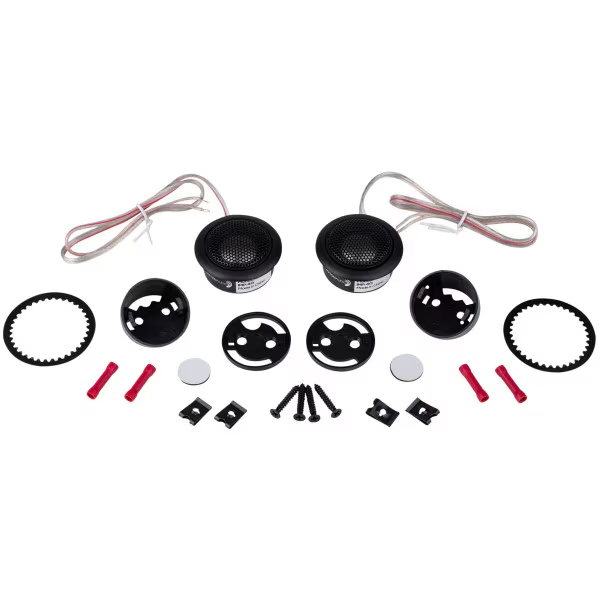

- All hardware included to permit flush or surface mounting
Dayton Audio designed the AN25Ti-4 tweeter to provide superb audio reproduction. The titanium diaphragm offers remarkable accuracy, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems, their modern appearance, high efficiency, and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs. Specifications: • Power handling: 40 watts RMS/80 watts max (with appropriate crossover) • VCdia: 1" • Impedance: 4 ohms • Re: 3.11 ohms • Frequency range: 3,000-20,000 Hz • Fs: 1744 Hz • SPL: 95.5 dB @2.83V/1m.
| FILENAME | ACTION |
|---|---|
| an25ti4.pdf | Download |
