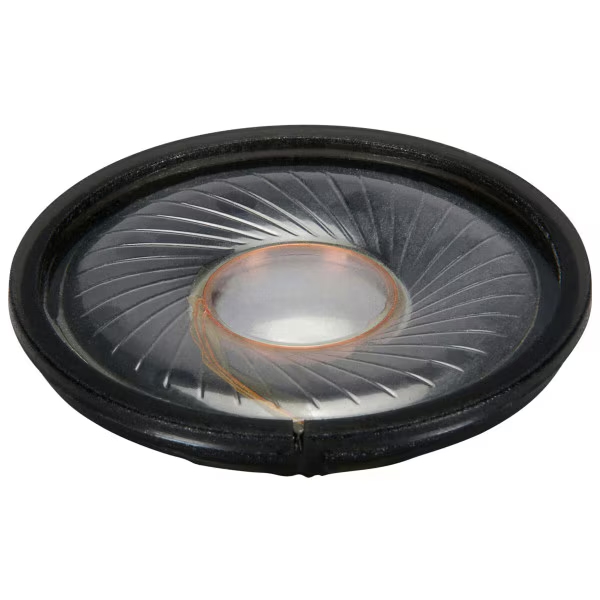

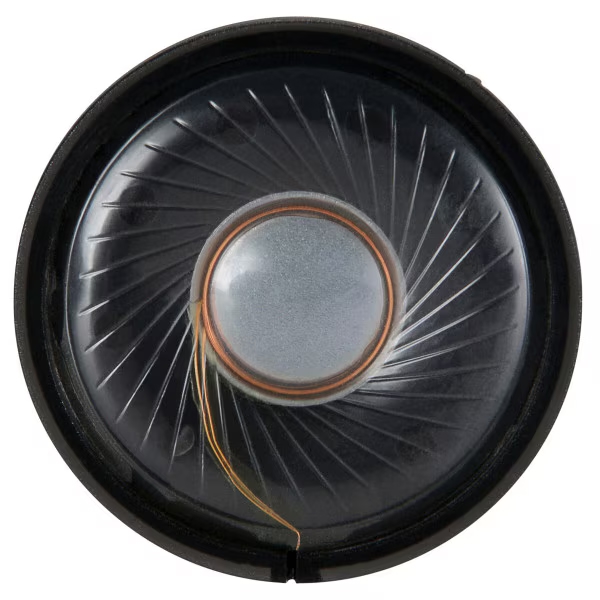

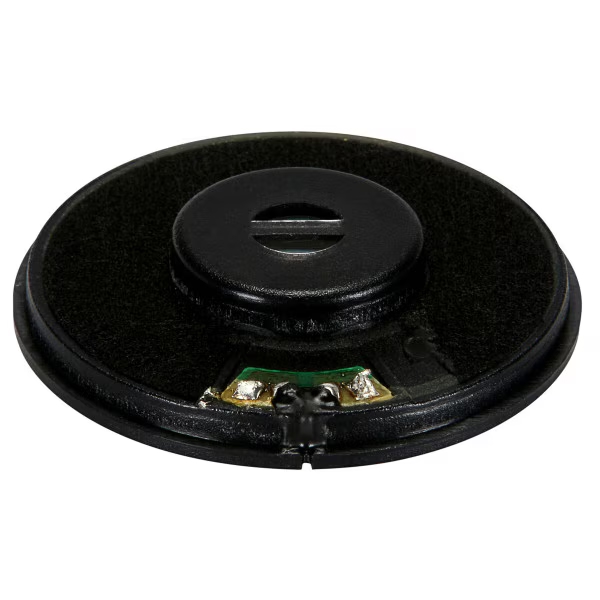

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker 8 Ohm
Product Specifications
Manufacturer DAYTON AUDIO
Speaker Type Mylar Cone Fullrange
Nominal Diameter 3.9cm
Impedance 8 ohms
Power Handling (RMS) 0.25 W
Frequency Response 190 - 20000 Hz
Sensitivity 75 dB
Voice Coil Diameter 13mm

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker 8 Ohm The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. The Dayton Audio CE38M-8 1-1/2" mini speaker features a feather-light and smooth-sounding Mylar diaphragm and a lightweight injection-molded plastic frame, making it great for portable electronics and headphones. The high sensitivity also enables it to be used as a speaker in kiosks, intercoms, displays, or electronic games, and the 8-ohm impedance works with most small audio amplifiers or line-level outputs. The round frame can be press-fit or glued in place. Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

ce38m8.pdf Download
